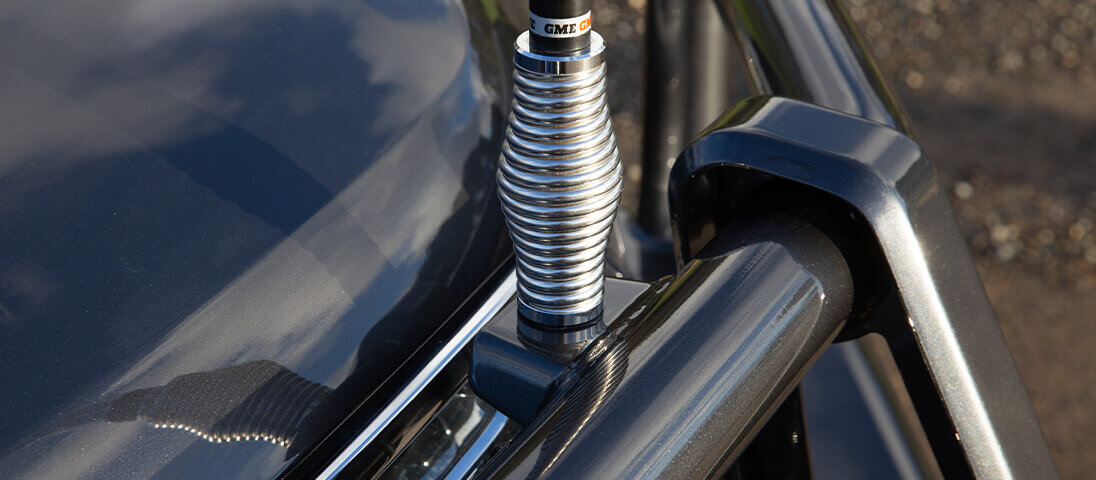

Vital for rural and remote area travel, ARB bull bars will provide substantially improved protection for vulnerable mechanical components against animal strikes whilst providing a solid base for mounting other accessories like driving lights, winches and CB antennas.
ARB bars are superbly engineered and manufactured to not only maintain maximum functionality, but also to ensure they complement the look of the vehicle.

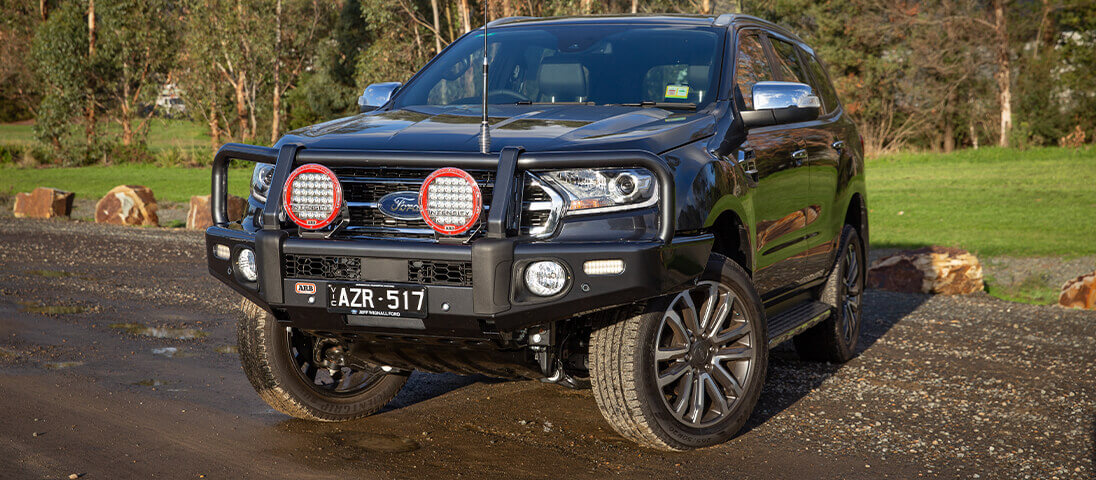

The Summit bull bar builds on the renowned ARB Deluxe bull bar architecture and integrates a fresh and contemporary design language to complement modern vehicles.

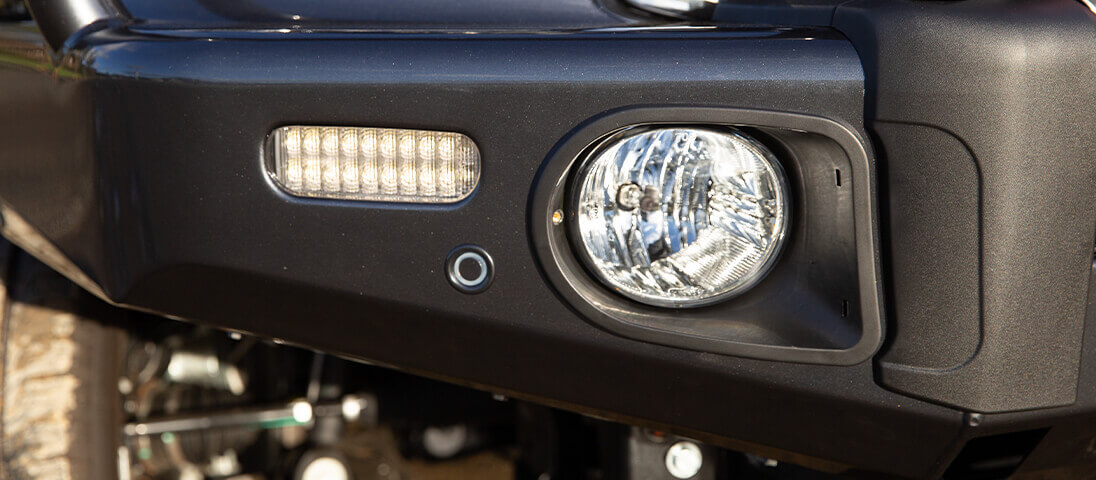

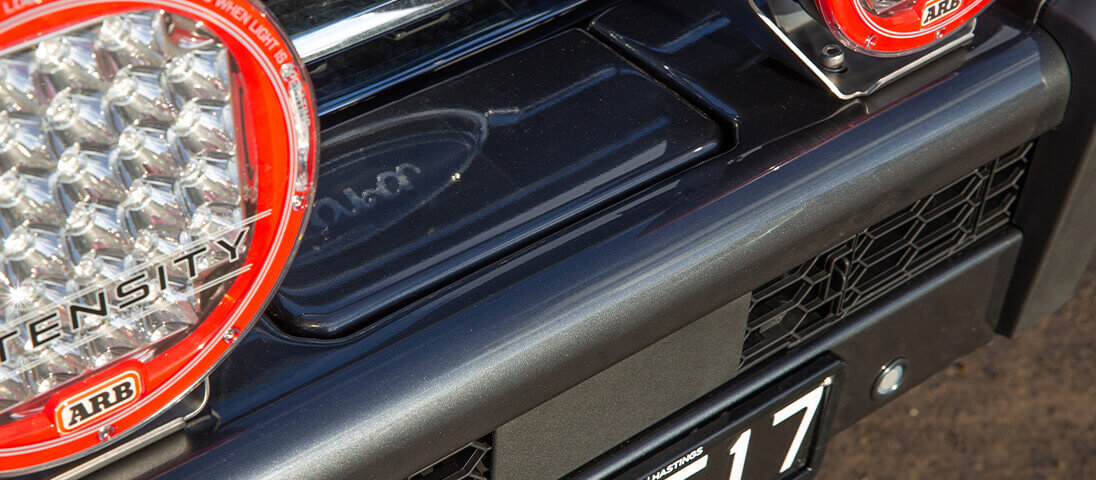

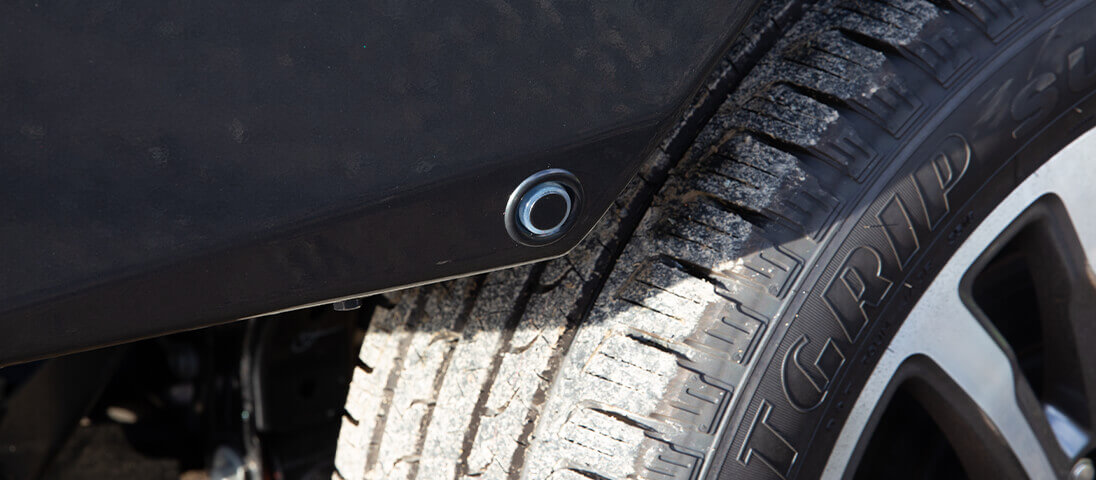

Available for MY19 Everest models, including those with Adaptive Cruiser Control and Semi-Auto Active Park Assist, the Summit bar is winch compatible and provides next-generation protection and styling for your vehicle. Laser cut holes for mounting ARB Intensity LED, IPF and Bushranger driving lights are integrated into the top pan of the bar, while ARB’s LED indicator and clearance light assembly is included as standard.
Supplied in a durable black powder coat finish, colour coding is available as an option for a fully integrated look.
Note: Bar shown with optional fog light kit.

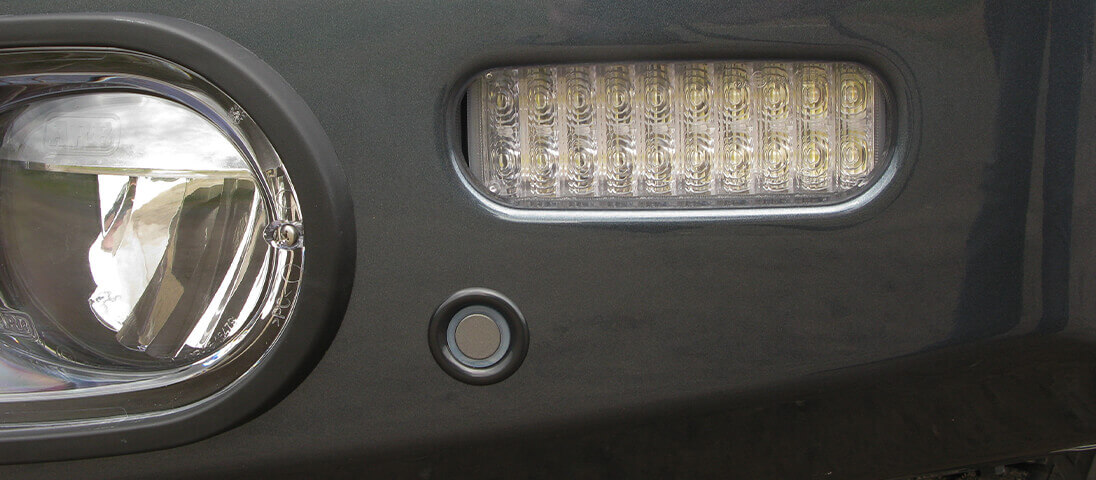

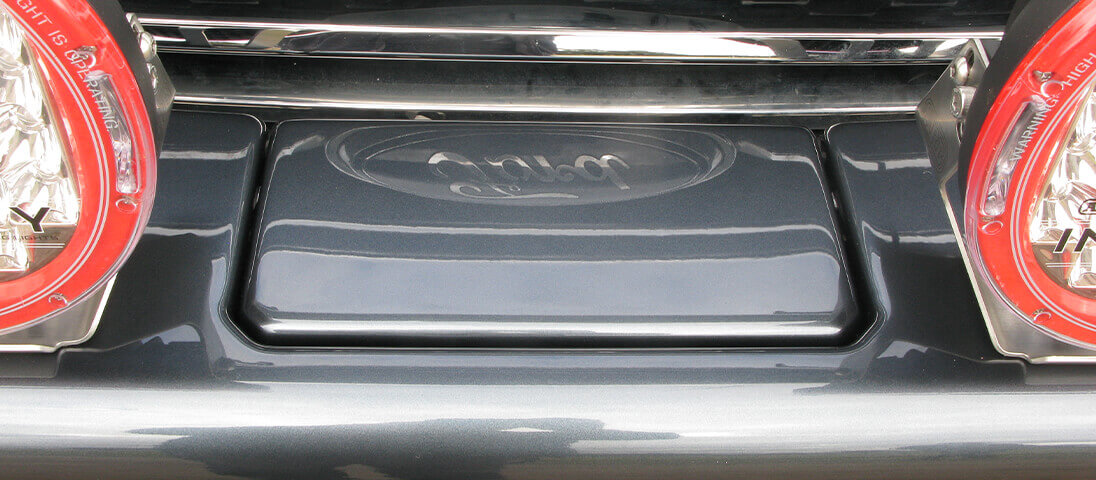

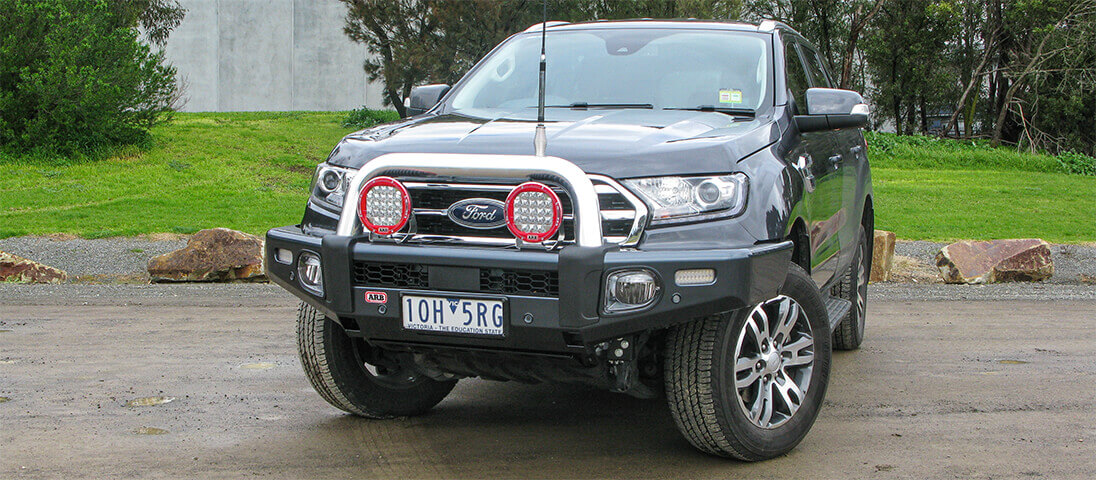

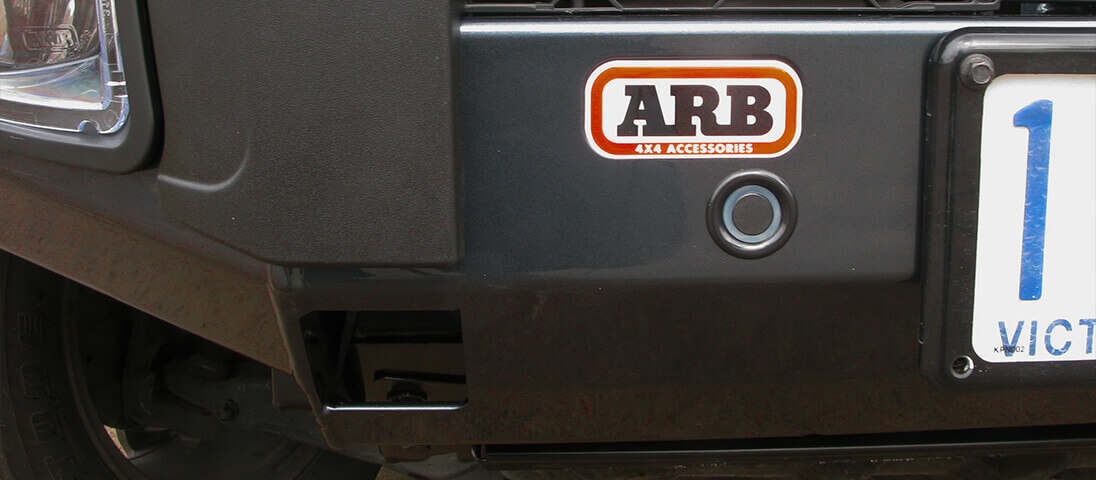

ARB’s new Summit Sahara Everest bar now suits Ambiente, Trend and Titanium trim specifications of the MY19 Everest, including those with Adaptive Cruiser Control and Semi-Auto Active Park Assist. The Summit Sahara bar is winch compatible and provides next-generation protection and styling for your vehicle. Laser cut holes for mounting ARB Intensity LED, IPF and Bushranger driving lights are integrated into the top pan of the bar, while ARB’s LED indicator and clearance light assembly is included as standard.
Supplied in a durable black powder coat finish, colour coding is available as an option for a fully integrated look.
Note: Bar shown with optional fog light kit.
Every bull bar starts its life as a flat sheet of steel. Individual components are cut to shape using ARB’s state of the art, computer aided laser cutters which can cut to a tolerance of just 0.2mm with no heat distortion, resulting in superior surface finishes and accuracy.
Individual components are then folded to make up the sections of the bull bar using a Computer Numerically Controlled (CNC) machine which ensures maximum accuracy and consistency. Most bull bars utilise ARB’s five fold design, with each fold providing additional strength.
ARB bull bars are made with strong, 2.6mm wall thickness tubing. The tube is cut to the desired length and bent with a CNC Eagle internal mandrel bender ensuring consistency, accuracy and an even wall thickness across all sections.
Once folded, each section is welded utilising a robot welder. Robot welders are used for straightforward, repetitive welding jobs that require deep penetration, speed and accuracy.
When individual components are complete, the bull bar is assembled. All sections including pan, wing, uprights, outer frame and chassis brackets are placed in a jig and tack welded. This is followed by finish welding and grinding for strength and aesthetics. Jigs are assessed regularly to ensure accuracy.
To complete the manufacturing process all ARB bars are shot blasted, before entering a 5 stage chemical wash to prepare the surface for maximum powder adhesion. They’re then powder coated and oven baked to ensure a rich and durable finish. As well as being an attractive and durable finish, power coating provides an excellent base for painting if colour coding is required.
