ARB Bull Bars

Vital for rural and remote area travel, ARB bull bars will provide substantially improved protection for vulnerable mechanical components against animal strikes whilst providing a solid base for mounting other accessories like driving lights, winches and CB antennas.

ARB bars are superbly engineered and manufactured to not only maintain maximum functionality, but also to ensure they complement the look of the vehicle.

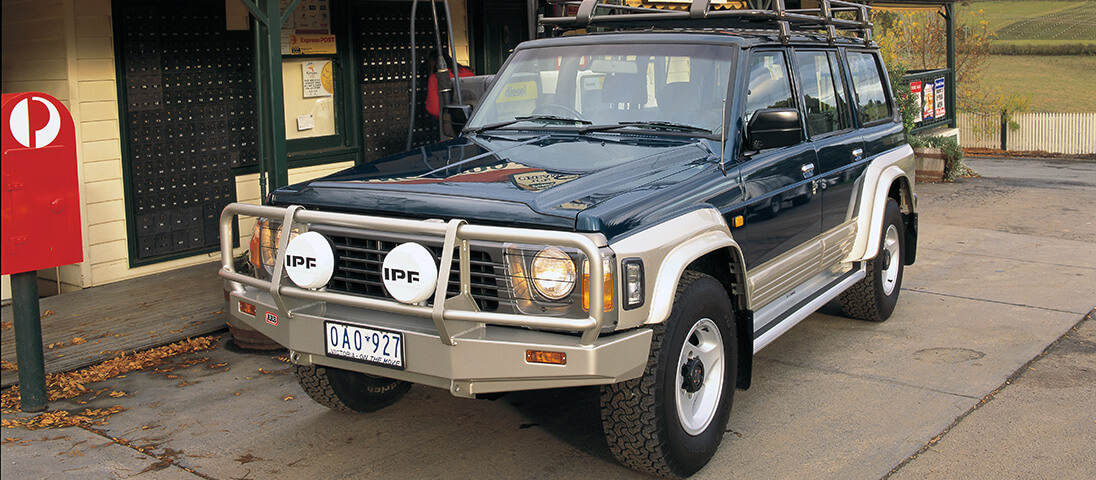

Deluxe Bull Bar

Deluxe Bull Bar

Manufactured from steel for ultimate strength and powder coated for durability, the Deluxe bull bar is designed to complement the vehicle’s style and safety systems while offering a solid platform to mount essential 4WD accessories in a seamless and integrated package.

Available for the GQ Patrol models, the Deluxe bull bar is compatible with a selection of Warn, Smittybilt and Bushranger low mount winches. A cover panel finishes off the bar for when a winch is not fitted. To complement the bar, optional fog light kits are also available.

For added aesthetics, optional colour coding is available on all models.

Note: Mounting kit required for Warn 8000/9000lb low mount winches.

Features

  • Vehicle specific design to complement the Nissan Patrol and maximise functionality
  • Durable steel construction for maximum protection
  • Incorporates upswept, stepped wings for optimum strength and approach angle
  • Split pan design for maximum strength and airflow
  • Continuous uprights through the bumper section of the bar strengthens the outer frame
  • Cover straps attached to the uprights ensure there are no exposed edges
  • Winch model will accommodate a selection of Warn, Magnum and Bushranger low mount model electric winches
  • Provision to accommodate ARB Intensity LED, and a range of IPF and Bushranger driving lights
  • Recessed indicators
  • Provision for two aerials located on the top tube of the bar
  • Finished in a hard-wearing powder coat with the added option of colour coding to individual vehicles

Commercial Bull Bar

The GQ Patrol Commercial bull bar is designed specifically as a high mount winch bar. Incorporating many of the strength related features of the Deluxe bull bar, the Commercial bar provides considerable frontal protection but achieves cost savings through a simplified manufacturing process.

ARB’s Commercial bar for the GQ Patrol offers superior protection via its unique design, featuring heavy gauge steel tube for the centre and outer frame whilst forgoing a number of cosmetic features such as colour coding and urethane buffers.

Features

  • Vehicle specific design to complement the Nissan Patrol and maximise functionality
  • Durable steel construction for maximum protection
  • Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle.
  • Superbly engineered mounting system secures to chassis via high tensile bolts
  • Will accommodate a Warn 8000 high mount winch
  • Provision to accommodate a range of IPF and Bushranger driving lights
  • Recessed indicators
  • Two aerial brackets located on the top tube of the bar
  • Finished in a hard-wearing powder coat

Bull Bar Production Steps

Laser Cutting

Laser Cutting

Every bull bar starts its life as a flat sheet of steel. Individual components are cut to shape using ARB’s state of the art, computer aided laser cutters which can cut to a tolerance of just 0.2mm with no heat distortion, resulting in superior surface finishes and accuracy.

Folding

Folding

Individual components are then folded to make up the sections of the bull bar using a Computer Numerically Controlled (CNC) machine which ensures maximum accuracy and consistency. Most bull bars utilise ARB’s five fold design, with each fold providing additional strength.

Tube Work

Tube Work

ARB bull bars are made with strong, 2.6mm wall thickness tubing. The tube is cut to the desired length and bent with a CNC Eagle internal mandrel bender ensuring consistency, accuracy and an even wall thickness across all sections.

Robot Welding

Robot Welding

Once folded, each section is welded utilising a robot welder. Robot welders are used for straightforward, repetitive welding jobs that require deep penetration, speed and accuracy.

Assembly

Assembly

When individual components are complete, the bull bar is assembled. All sections including pan, wing, uprights, outer frame and chassis brackets are placed in a jig and tack welded. This is followed by finish welding and grinding for strength and aesthetics. Jigs are assessed regularly to ensure accuracy.

Post Assembly

Post Assembly

To complete the manufacturing process all ARB bars are shot blasted, before entering a 5 stage chemical wash to prepare the surface for maximum powder adhesion. They’re then powder coated and oven baked to ensure a rich and durable finish. As well as being an attractive and durable finish, power coating provides an excellent base for painting if colour coding is required.
