• Flip down number plate bracket to allow access to factory spare wheel mechanism
  • Anodised aluminium top tread plate
  • 2.5mm press formed steel wing panels
  • Side wing panels can be colour coded to suit vehicle (supplied in a black powder coat)
  • 60.3mm x 2.6mm steel tube frame
  • Provision for mounting ARB trailer plug wiring
  • Provision for ARB air compressor outlet
  • Two tow chain fixture points
  • Provision for mounting ARB trailer camera
  • Provision for 50amp Anderson plug
  • Moulded licence plate bezel and Narva LED licence plate light
  • Hi-Lift jack points on wings and under tube
  • Beaver panel included, finished in black powder coat
  • 3.5t class 4, 50mm tow hitch

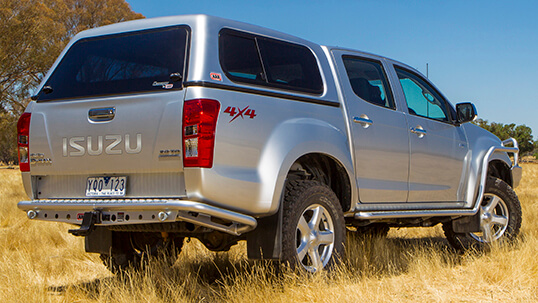

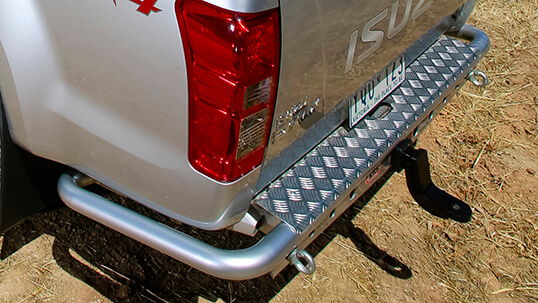

Rear Step Tow Bar

Due to the long rear overhang on many modern 4×4 dual cab utes, rear quarter panels and factory bumper bars are very susceptible to damage, particularly when traversing steep, rocky terrain.

Available for all 4×4 models and manufactured from steel, with a vehicle specific mounting system, ARB’s rear step tow bar will provide a massive amount of protection for the rear of your D-Max. To add additional functionality, each rear step tow bar also incorporates a heavy duty towing system, complete with a removable hitch.

An optional wiring loom for trailer lighting is also available.

Note: As per the vehicle manufacturer’s recommendation, due to the vehicles sensitive CAN/BUS electrical system, only a genuine Isuzu or approved wiring harness should be used. Fitment not yet confirmed to LS-U DC X-Runner or LS Terrain special edition models.


  • Available for utilities
  • Protects vulnerable rear quarter panels
  • Integrated heavy duty towing system
  • Integrated towing eyes and tread plate step
  • Removable hitch included
  • Steel construction with vehicle specific mounting system
