Bushranger Winches

With low amp draw, high quality construction and a thermal overload sensor, the Bushranger range of winches combines value for money with reliable performance in any terrain.

Built to uncompromising standards, the Bushranger range of winches features tough, high quality construction and superior pulling power to deliver faultless vehicle recovery in extreme terrain.

With up to 23% lower amp draw than other industry leading winches, Bushranger winches incorporate a motor mounted sensor on the remote control, which warns the operator of thermal overload during winching. Coming with a limited lifetime warranty, Bushranger winches offer proven performance and reliability in any off road environment.

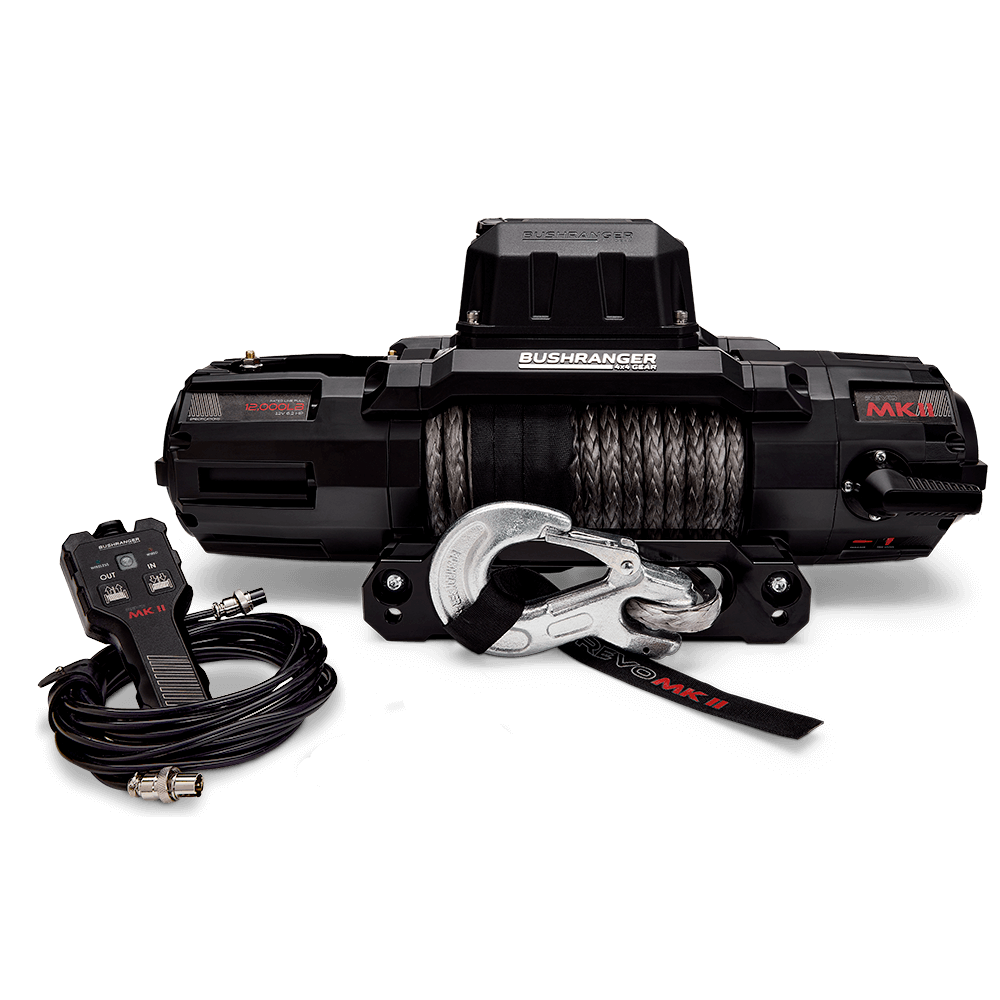

Bushranger Revo Winch

Bushranger Revo Winch

Motor

Series wound, 12V, 5.2HP motor.

Motor

Series wound, 12V, 5.2HP motor.

Rotatable motor housing

4 position motor clocking for versatility during fitting.

No lift clutch

Easy-to-use, spring loaded, cam-style clutch mechanism.

Aluminium alloy housings

Strong and lightweight, with a durable black powder coat finish

Zero brake drag

Zero drag braking system allows for the winch to be powered out under no load without heat build-up, making unspooling a breeze.

4 Stage oversized gearbox

Extra wide gears improve load distribution for less wear. Externally adjustable, 16 position gearbox rotation for ease of fitment and use.

Gearbox mounted braking system

100% load holding, proportional friction braking system located inside the gearbox, away from the drum - eliminating heat transfer to the synthetic rope.

Waterproof

Fully sealed motor, gearbox and drum for maximum protection from water, dust and debris.

Control Box

Multiple mounting orientations. Supplied with an additional mounting bracket for hassle free installation.

500A Contactor

Sealed contactor distributes power with minimal voltage drops

Bushranger DV-12TH WINCH

Bushranger DV-12TH WINCH

Control Box

Alloy extruded, multi-mount control box is impact resistant and offers increased contactor protection whilst providing vertical, horizontal, motor and bracket mounting options.

Control Box

Alloy extruded, multi-mount control box is impact resistant and offers increased contactor protection whilst providing vertical, horizontal, motor and bracket mounting options.

Sealed Contactor

Heavy duty sealed contactor eliminates solenoids and delivers increased water resistance and lower amp draw.

Cable Drum

External brake design ensures minimal heat build-up in the cable drum, allowing safe use of synthetic rope.

Housing

Tough aluminium alloy die cast housing provides increased structural durability over other models.

Clutch

Rapid low drag free-spool with T-handle clutch release.

Cone Brake

Patented, gearbox-mount automatic cone brake holds full rated load whilst allowing for easy access and maintenance.

Gearbox

Three stage planetary gearbox delivers tough and reliable performance in the harshest conditions.

Thermal Sensor

Motor mounted thermal sensor transmits thermal overload warning via remote switch LED.

Heavy Duty Motor

Heavy duty series wound motor delivers superior torque output and fast line speed.
