ARB Bull Bars

Vital for rural and remote area travel, ARB bull bars will provide substantially improved protection for vulnerable mechanical components against animal strikes whilst providing a solid base for mounting other accessories like driving lights, winches and CB antennas.

ARB bars are superbly engineered and manufactured to not only maintain maximum functionality, but also to ensure they complement the look of the vehicle.

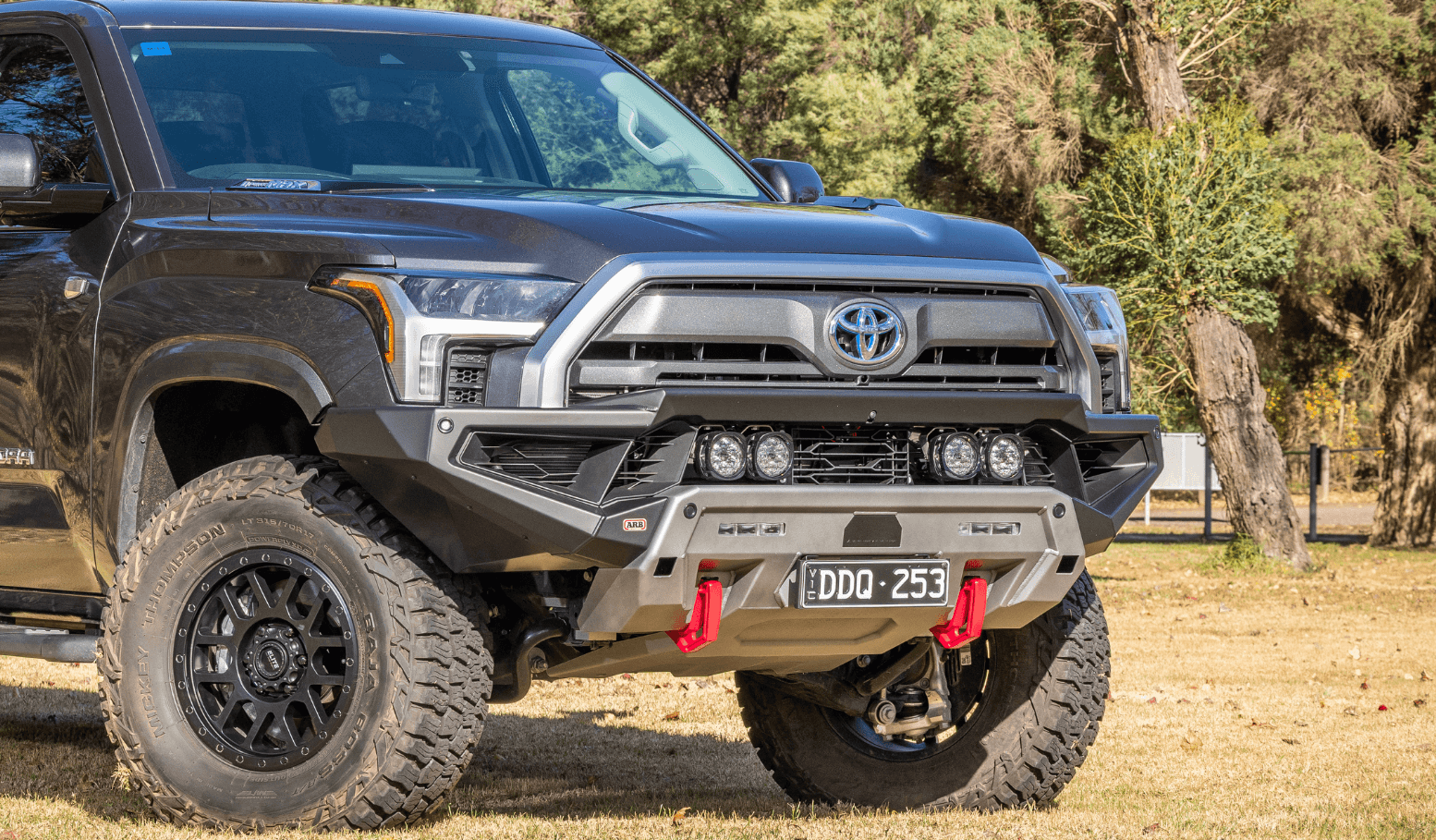

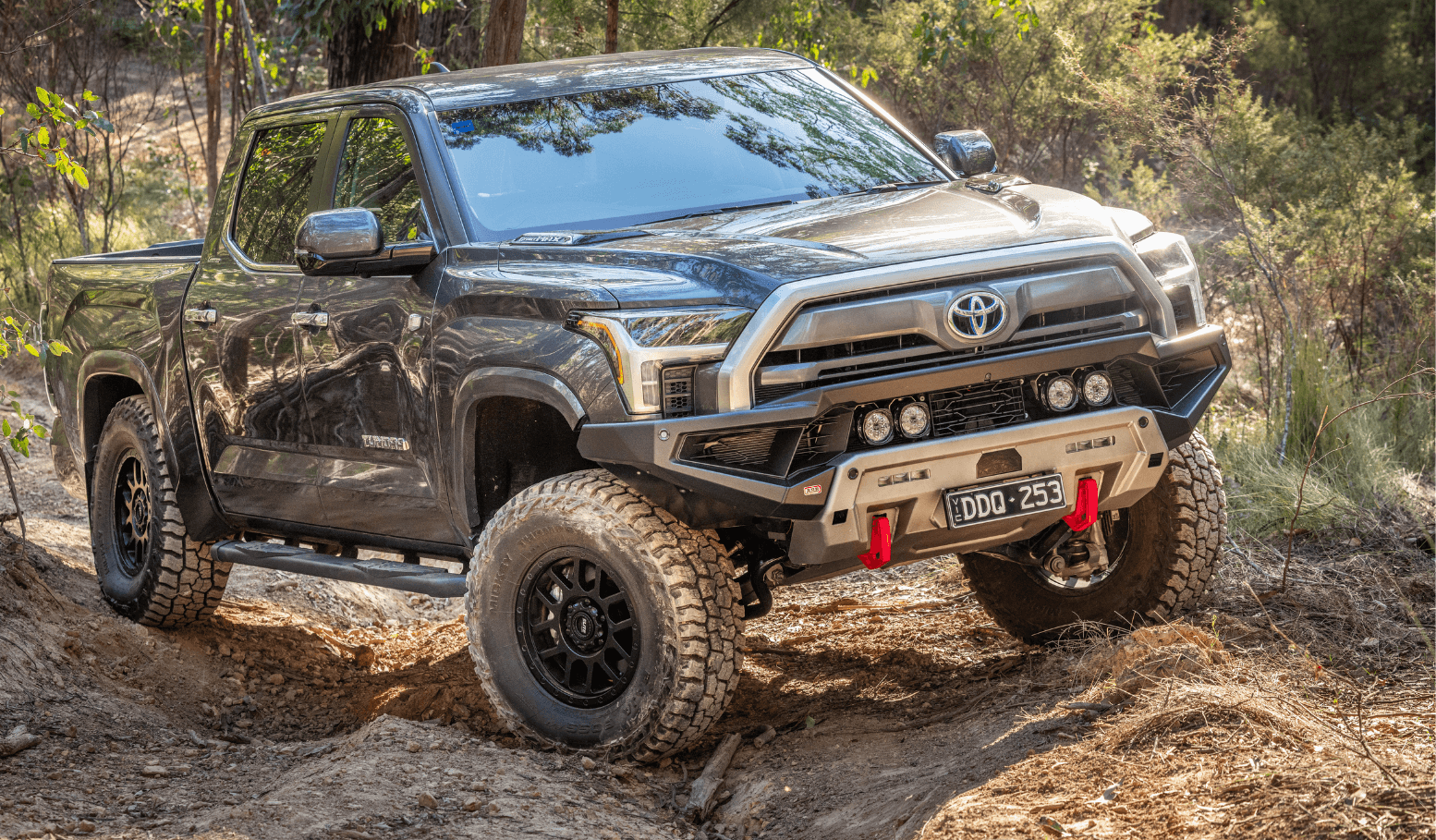

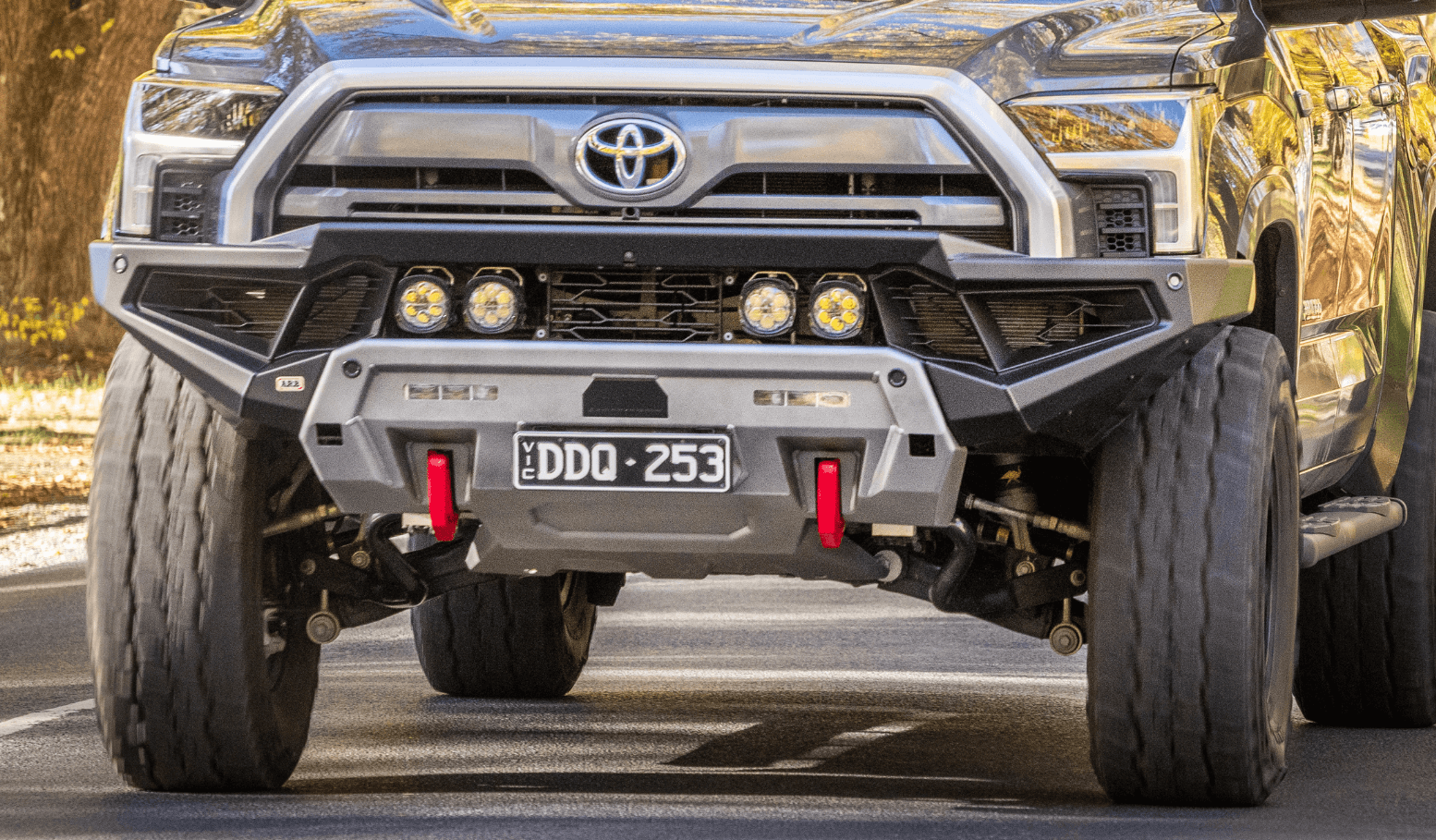

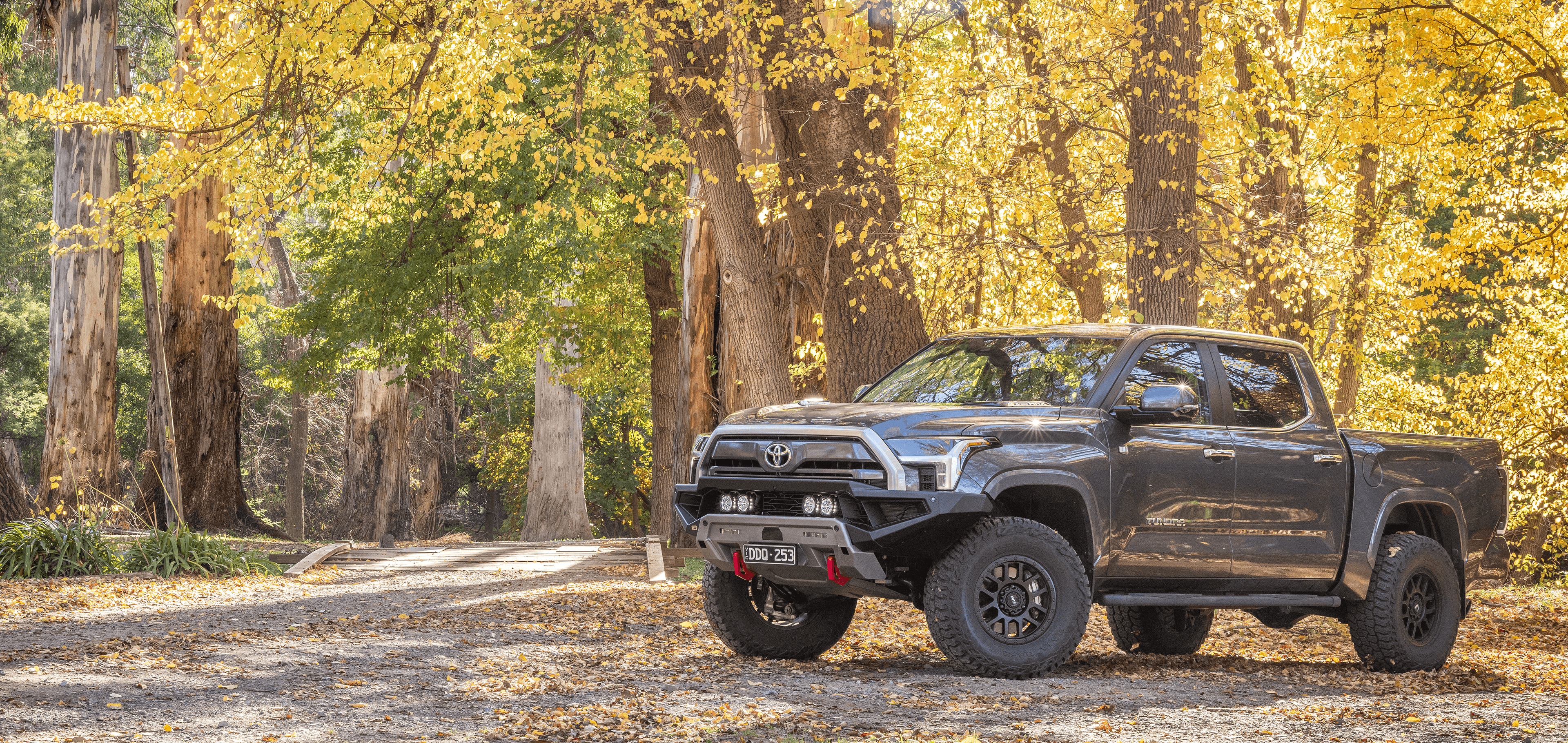

Zenith Bar

Bridging functionality and style, ARB’s Zenith Bar is designed to turn heads whilst providing your vehicle with industry-leading protection and performance.

Zenith utilises ARB’s extensive knowledge of manufacturing frontal protection equipment, and is constructed from laser cut and formed durable steel. For increased versatility the Zenith Bar features a centrally integrated bash plate, twin 8T-rated recovery points and provision for optional driving lights and a winch, ensuring you’re ready for any off road challenge.

Features

  • Laser-cut, press-formed and folded 3mm engineered steel construction to maximise strength to weight ratio

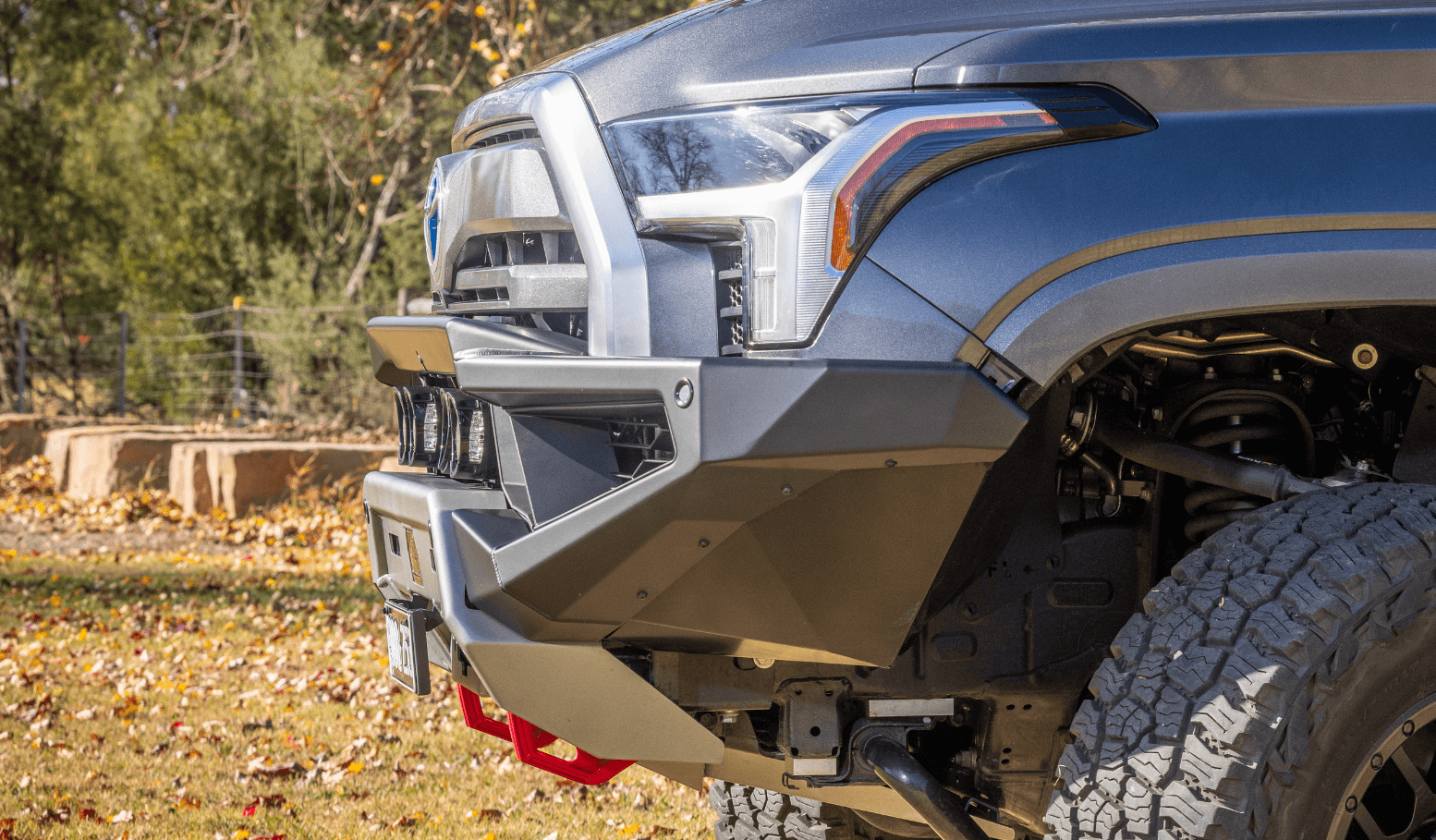

  • Sits close to vehicle and features upswept wings for the best approach angle and clearance
  • Design and testing of ducting to maximise airflow and improve vehicle performance
  • Compatible with original factory features including parking sensors, front camera and radar
  • Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts
  • Apertures in the wings allow for integration of factory fog lights, or an optional ARB fog light kit is available
  • Centrally integrated bash plate strengthened with high-tonnage press-forms for durable protection of vulnerable vehicle components, and is also removable for ease of access and winch servicing
  • Dual 8-Tonne Forged Recovery Points are included, with pressed and chamfered edges suitable for both soft and steel shackles
  • Winch compatible for low mount winches up to 12,000lb (please note, limited winch selection due to vehicle chassis width).
  • Provision to accommodate optional NACHO Quatro 4” driving lights, or a grille can be fitted
  • Twin ARB Jack or Hi-Lift jack points located in the lower pan
  • Vehicle specific design suitable for the Ford F-150 2023+
  • Registered design of styling and design components
  • Bar adds approximately 25mm to the overall length of the vehicle
  • Approximate weight of the bar, bash plate, recovery points, chassis mounts and fitting kit is 101.6kg. Approximately 31kg is removed from the vehicle for fitment of the bar
  • Metaprep primer for additional corrosion resistance
  • Bar finished in matt black powder coat and bash plate in vintage silver, or can be colour coded individually
