ARB Summit Sahara Bar

Sharing many of the strength related features of a Summit bar, including ARB’s five fold upswept and tapered wing profile, the Summit Sahara bar offers a different look without sacrificing practicality.

Like the Summit bar, the Summit Sahara bar also provides a solid platform for adding other accessories such as winches, driving lights and CB antennas.

Available either with or without the polished centre tube, as well as indicators and optional fog lights (LED or halogen), the Summit Sahara bar offers owners greater flexibility in creating their desired look.

Features

Features

Wing Design

The furthest most point from the chassis and often the point of impact in an animal strike, the wing area is by far the most vulnerable. ARB pioneered the multi fold upswept and tapered wing design, which provides an enormous amount of strength and maintains an optimum approach angle.

Wing Design

The furthest most point from the chassis and often the point of impact in an animal strike, the wing area is by far the most vulnerable. ARB pioneered the multi fold upswept and tapered wing design, which provides an enormous amount of strength and maintains an optimum approach angle.

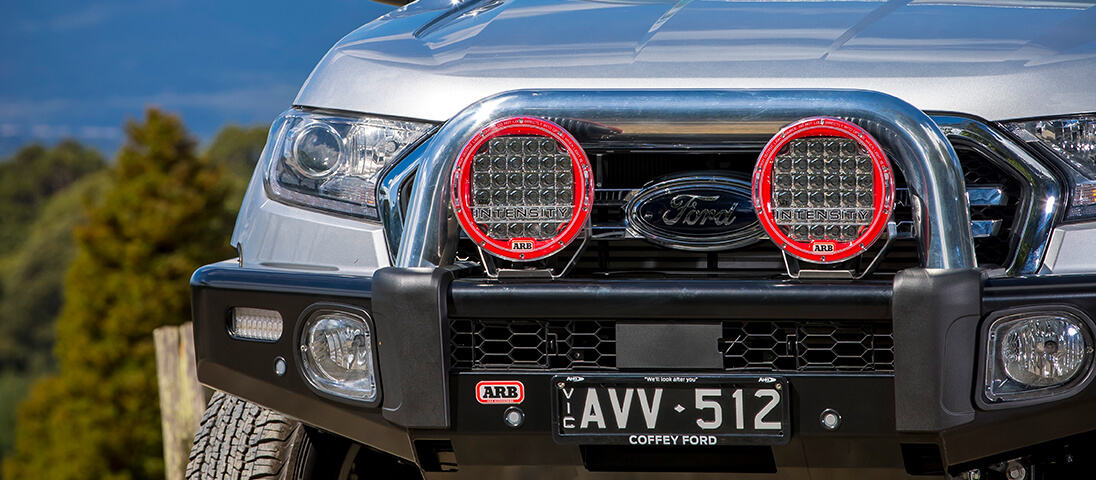

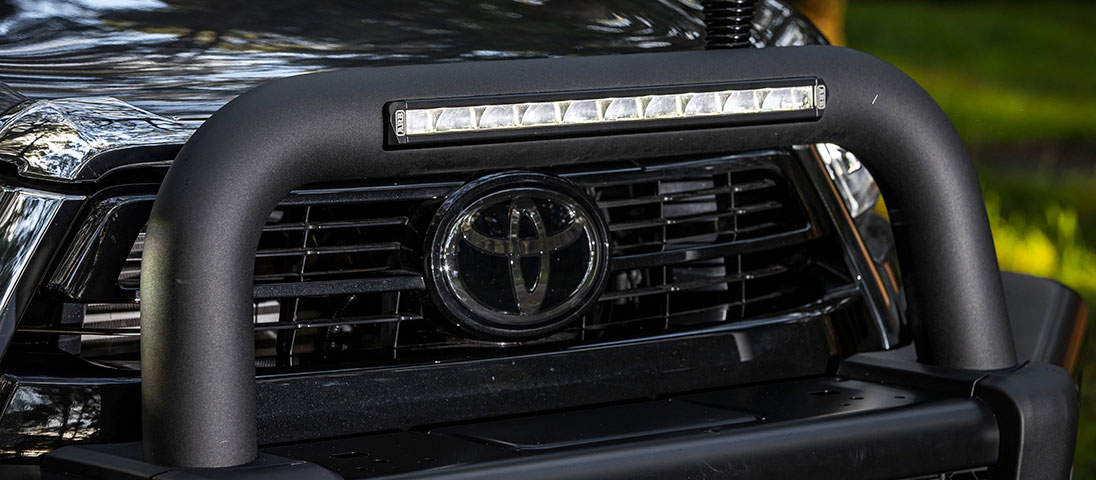

Centre Tube

An optional polished or painted centre tube offers a different look to the more traditional bull bar design. An internal mandrel bender is used to shape the centre tube, ensuring even wall thickness throughout.

Split Pan Design

ARB’s engineers give careful consideration to maintaining sufficient airflow to the vehicle’s radiator. Utilising a split pan system, ARB’s bull bar design ensures the radiator receives a massive amount of airflow and actually further increases the strength of the bar.

Air Bag Compatible Mounting System

With an air bag equipeed vehicle, it is essential that the vehicle’s crush rate and air bag triggering is not altered when a bull bar is installed. ARB assesses each vehicle’s frontal crush characteristics and replicates the crush rate into the design of each air bag compatible bull bar and its mounting system. This achieves maximum possible vehicle and passenger protection without affecting the crash pulse.

Polyurethane Buffers

Automotive grade polyurethane buffers incorporated into the bar for unique styling.

Electric Winch Provision

Mounting a winch to a vehicle requires a properly supported structure that is designed to accommodate the stresses of winching. When using a snatch block to increase winching capacity, the forces are multiplied to several times the rated capacity of the winch. Most ARB bars feature the option of fitting a winch, and all are designed and tested to endure and exceed such loads.

Secure Mounting Points

Exceptionally durable and secure, all ARB bars serve as an ideal platform to mount driving lights, helping ensure maximum performance and longevity. Driving lights mounted to a high quality bull bar prevents problems such as excessive movement, a vibrating beam pattern, premature bulb failure and eventual fatiguing of the light bodies. Provisions for CB aerials are incorporated either into the wings or on the centre pan of the bar. Durable plugs are included for added aesthetics when aerials are not fitted.

Recessed Fog Lights

Most Sahara bars feature indicators and optional fog lights (available in LED or halogen) for foul weather conditions. The recessed panels give both indicators and fog lights improved protection from branches and road debris.

Hi-Lift Jacking Points

Eliminating the need for a mounting bracket, High-Lift jacking points are integrated into the design of most ARB bull bars. These points also enable easier access to the clutch lever when unspooling wire or synthetic rope before winching.

Mounting System

The mounting system is a vital part of any ARB bull bar design. ARB's mounting systems are specifically engineered to spread impact and winching loads evenly over the vehicle's chassis. This ensures the bull bar functions properly in extreme conditions.

  • View technical specifications

    Input 12V to 48V
    Power  55W
    LEDs 10x OSRAM 6.5W
    Current draw 4.0A @ 14.2V
    Output (RAW)  4081 lumens
    Output (Effective) 3866 lumens
    1 Lux at 445m
    Spread Horizontal 8° and Vertical 6°
    Input cable length 550mm
    Total measurement 494.4 x 35 x 67mm
    LED light bar weight 1.25kg
    Operating temperature  -40°C to +85°C
    Colour temperature 5500-6500K
    Runtime life 50,000hrs
    Connector pin  2 pin DT – over moulded waterproof plug
    Certifications R10, R12, CE and ROHS
    Warranty 3 years
