ARB Bull Bars

Vital for rural and remote area travel, ARB bull bars will provide substantially improved protection for vulnerable mechanical components against animal strikes whilst providing a solid base for mounting other accessories like driving lights, winches and CB antennas.

ARB bars are superbly engineered and manufactured to not only maintain maximum functionality, but also to ensure they complement the look of the vehicle.

Summit Bull Bar

The Summit bull bar builds on the renowned ARB Deluxe bar architecture, and integrates a fresh and contemporary design language to complement modern vehicles.

Available for Mazda BT-50 07/2020 onwards sensor (GT specification) and non-sensor (XT and XTR specification) models, Summit bars are winch compatible and provide next-generation protection and styling for your vehicle. Laser-cut holes for mounting ARB Intensity LED, IPF and Bushranger driving lights are integrated into the top pan of the bar, while ARB’s LED indicator and clearance light assembly is included as standard.

Supplied in a matte black powder coat finish, colour coding is available as an option for a fully integrated look.

Features

  • Vehicle specific design to complement the 2020+ BT-50
  • Durable steel construction for maximum protection
  • Incorporates ARB’s renowned multi-fold upswept and tapered wing design for optimum strength and approach angle
  • 30mm radius on wings and centre section
  • Engineered, airbag compatible mounting system secures to chassis via high tensile bolts
  • Split pan design for maximum strength and airflow
  • Three-piece grille design for split pan
  • Extensive protection panels on the centre and either side.
  • Formed cover straps
  • Pressed form top pan and aluminium (powder-coated black) winch cover panel
  • Twin ARB JACK and Hi-Lift jacking points located below each buffer for optimum strength
  • Durable two-piece buffers
  • Will accommodate Warn, Magnum, Bushranger and Smittybilt low mount model electric winches up to 10,000lb
  • Provision to accommodate ARB Intensity LED and a range of IPF and Bushranger driving lights
  • Provision for optional ARB fog light kit
  • Includes ARB LED indicator & clearance light
  • Two aerial brackets located on the top of the centre tube
  • Corrosion resistant primer
  • Supplied in a durable black powder coat finish, colour coding is available as an option for a fully integrated look

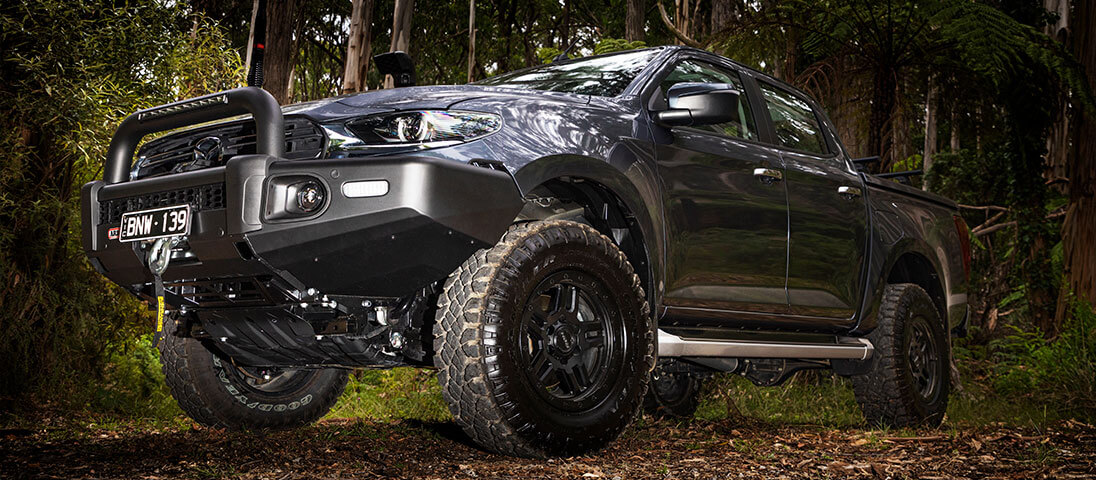

Summit Sahara Bull Bar

With a low profile design, the BT-50 Sahara bar provides an alternative look to the Summit bar, whilst retaining many of the strength and protection features.

Offering significantly greater protection than the factory bumper, the Sahara bar is available with or without the centre tube and can accommodate a selection of Warn, Magnum, Bushranger and Smittybilt low mount winches.

For added aesthetics, optional colour coding is also available.

Features

  • Vehicle specific design to complement the BT-50
  • Durable steel construction for maximum protection
  • Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle
  • Split pan design for maximum strength and airflow
  • Extensive under protection panels on centre and either side
  • Winch cover panel
  • Two aerial brackets located on the alloy tube (optional) and top pan
  • Engineered, air bag compatible mounting system secures to chassis via high tensile bolts
  • Bar can be configured with or without 76mm polished centre tube
  • Equally suited to winch and non-winch applications
  • Will accommodate Warn, Smittybilt and Bushranger low mount winches
  • Twin ARB JACK or Hi-Lift jacking points located in the lower pan
  • Provision to accommodate ARB Intensity LED lights, and a range of IPF and Bushranger driving lights
  • Injection moulded fog light/turn signal surrounds
  • Finished in a hard-wearing, Millenium grey powder coat with the added option of colour coding to individual vehicles

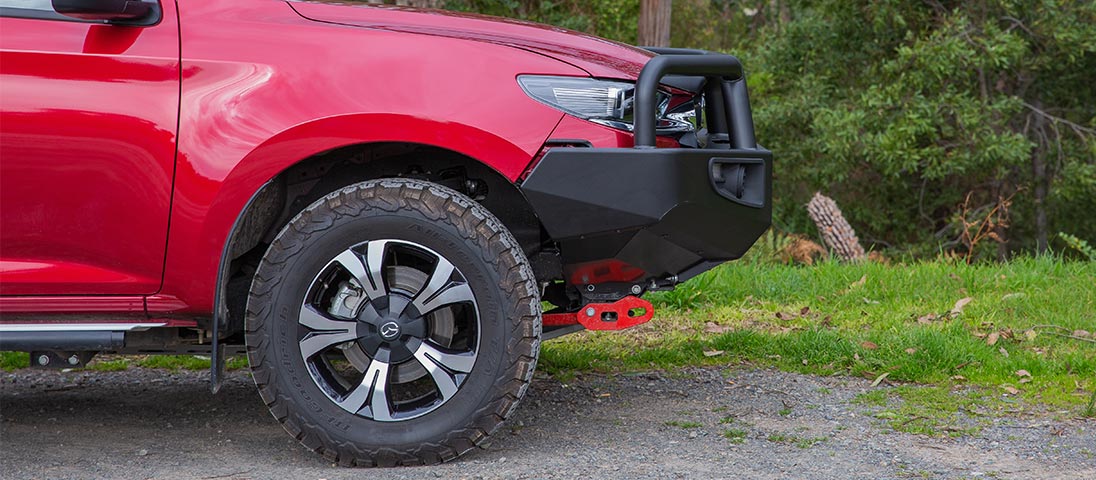

Commercial Bull Bar

Incorporating many of the strength related features of the Deluxe bull bar, the Commercial bar provides considerable frontal protection but achieves cost savings through a simplified manufacturing process.

ARB’s Commercial bar for the 2020+ Mazda BT-50 offers superior protection via its unique design, and features heavy gauge steel tubing for the centre and outer frame, whilst forgoing some cosmetic features such as urethane buffers.

The Commercial bar is available for the Mazda BT-50 07/2020 onwards 4×2 Hi-rider and 4×4 XT and XTR specification models.

Please note: not compatible with GT specification.

Mazda BT-50 Commercial Bar Mazda BT-50 Commercial Bar Mazda BT-50 Commercial Bar Mazda BT-50 Commercial Bar

Features

  • Vehicle specific design for the BT-50 2020+ (4×2 Hi-rider and 4×4 XT and XTR models)
  • Durable steel construction for maximum protection
  • 60.3mm outer tube and 76.1mm centre tube
  • Engineered, airbag compatible mounting system secures to chassis via high tensile bolts
  • Split pan design for maximum strength and airflow
  • Extensive steel protection panels on centre and either side
  • Will accommodate Warn, Magnum, Bushranger and Smittybilt low mount electric winches up to 10,000lb. Additional fit kit required depending on winch fitted.
  • Combination style bar to suit both winch and non-winch applications
  • Provision to accommodate ARB Intensity and Intensity Solis LED driving lights, as well as a range of IPF and Bushranger lights
  • Provision for optional ARB fog lights
  • Includes ARB LED indicator and clearance light
  • Two antenna brackets located on the top of the centre tube
  • Twin ARB JACK and Hi-Lift jack points provided in the lower pan
  • Corrosion-resistant primer
  • Finished in a matte black powder coat, with the option to colour code to vehicle colour
