15th April, 2016

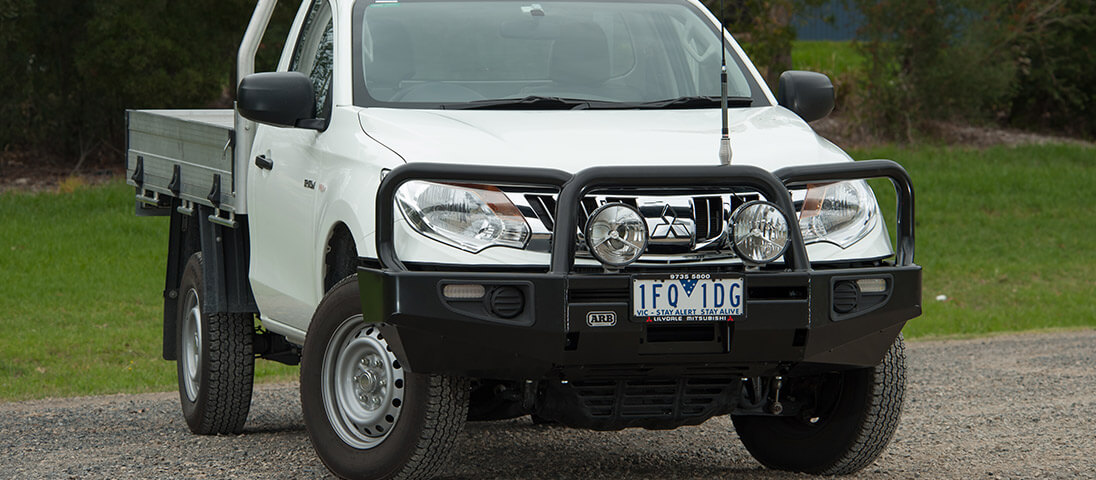

Mitsubishi owners will be pleased to know that ARB have completed the design and manufacturing of a Commercial bar for the newly released Mitsubishi MQ Triton, following the release of the Summit bar in July 2015. ARB Commercial bull bars and winch bars are a cost effective alternative to Summit bull bars, whilst offering a comparable level of vehicle protection. Incorporating many of the strength related features of a Summit bull bar, commercial bars provide considerable frontal protection but achieve cost savings through a simplified manufacturing process.

The chassis mounts initially developed for the Australian specification MQ Triton Summit bar have been retained with the new Commercial bar. A number of features not traditionally found on an ARB Commercial bar are incorporated for this new application. These features include:

  • ARB LED clearance and turn signals included as standard.
  • Centre and under wing panels included as standard.
  • Fog light option now available in ARB’s traditional fog light surround.
  • Outer tube increased to 60.3mm to allow fitment of the Summit Side Rails and Steps.

Other standard features include:

  • Durable steel construction for maximum protection.
  • Engineered, air bag compatible mounting system secures to chassis via high tensile bolts and hardware.
  • Split pan design for maximum strength and airflow.
  • Extensive protection panels on centre and either side.
  • Combination style bar to suit both winch and non-winch applications.
  • Will accommodate Warn, Magnum, Bushranger and Smittybilt low mount model electric winches up to 10,000lb. Separate winch installation kit is required.
  • Provision to accommodate ARB Intensity LED’s and a range of IPF lights.
  • Two aerial brackets located on the top of the centre fame.
  • Bar adds approximately 195mm to the overall length of the MQ Triton.
  • Approximate weight of the bar, chassis mounts and fitting kit is 63kg.
  • Finished in a hard wearing satin black powder coat.
