PRODUCT CODE: 10100080

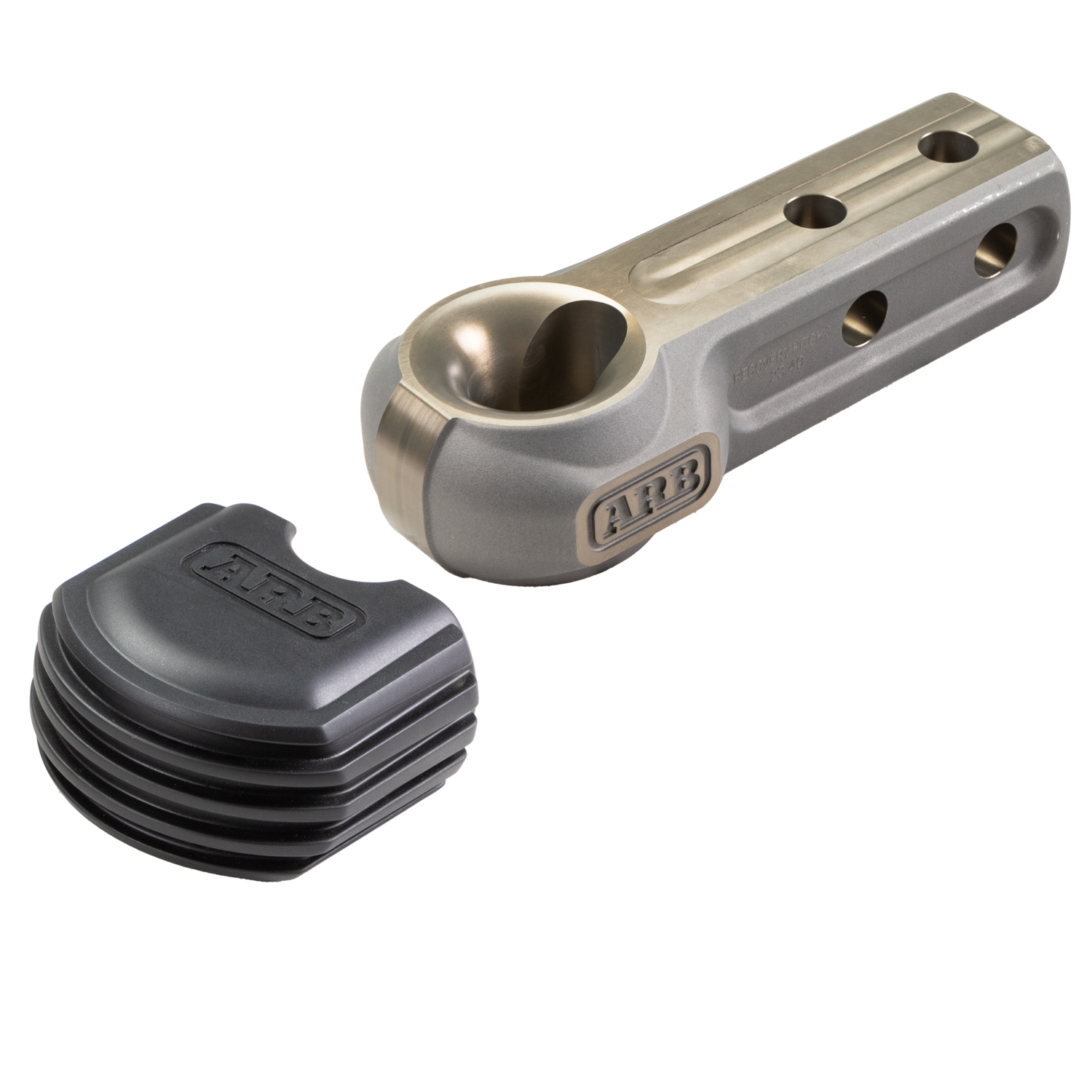

ARB Forged Recovery Hitch

Aluminium. MBS 25,000KGS

Sold as a Single item

Set Location

Zip Pay Available. Learn More

3 Years Warranty

Australia Wide Shipping

ARB Forged Recovery Hitch

RECOVERY HITCH

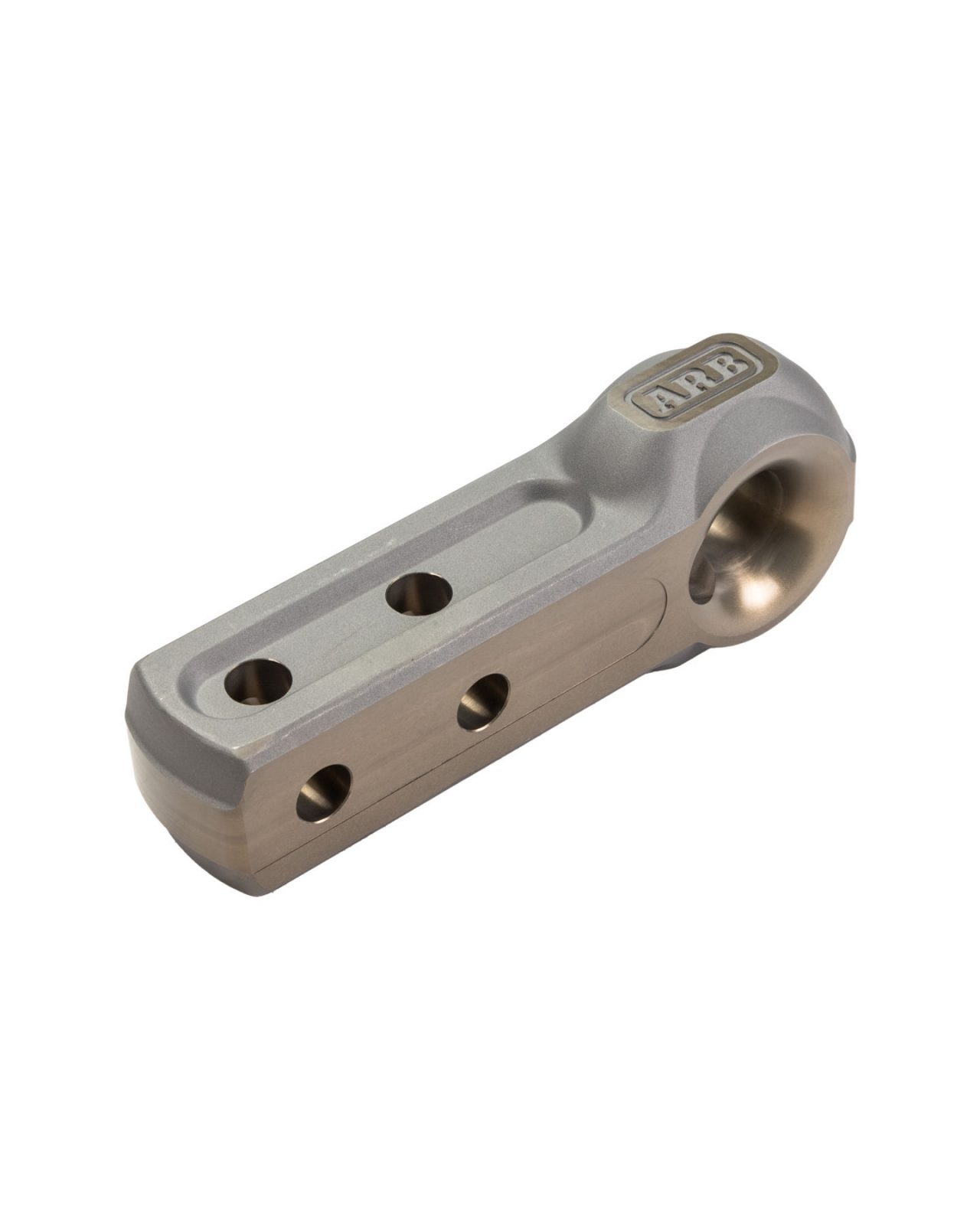

Engineered for the most demanding recoveries, this forged 7075 aerospace-grade aluminium hitch delivers class-leading strength with a Minimum Breaking Strength (MBS) side pull rating of 25,000kg and tested to an incredible 55,000kg front pull.

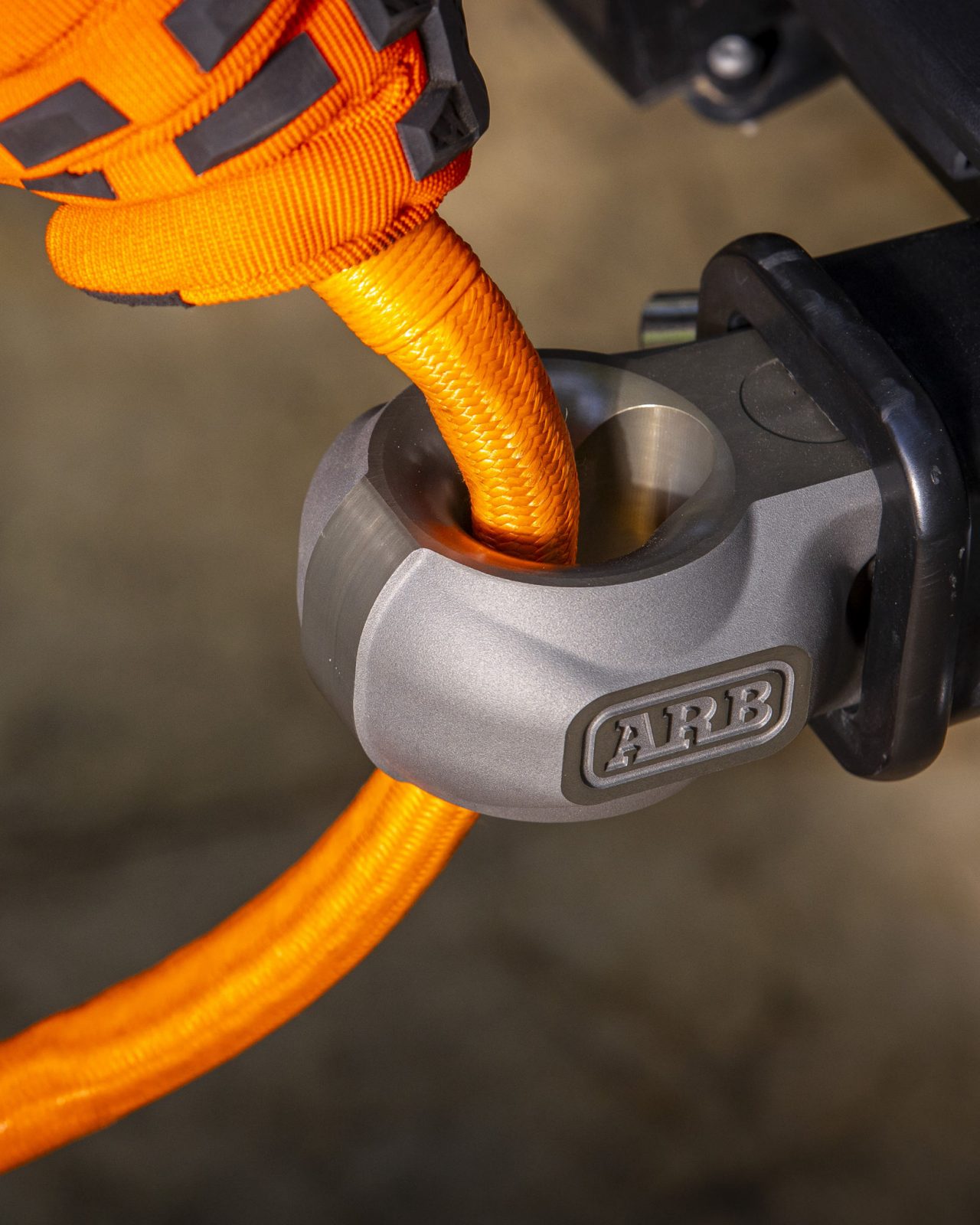

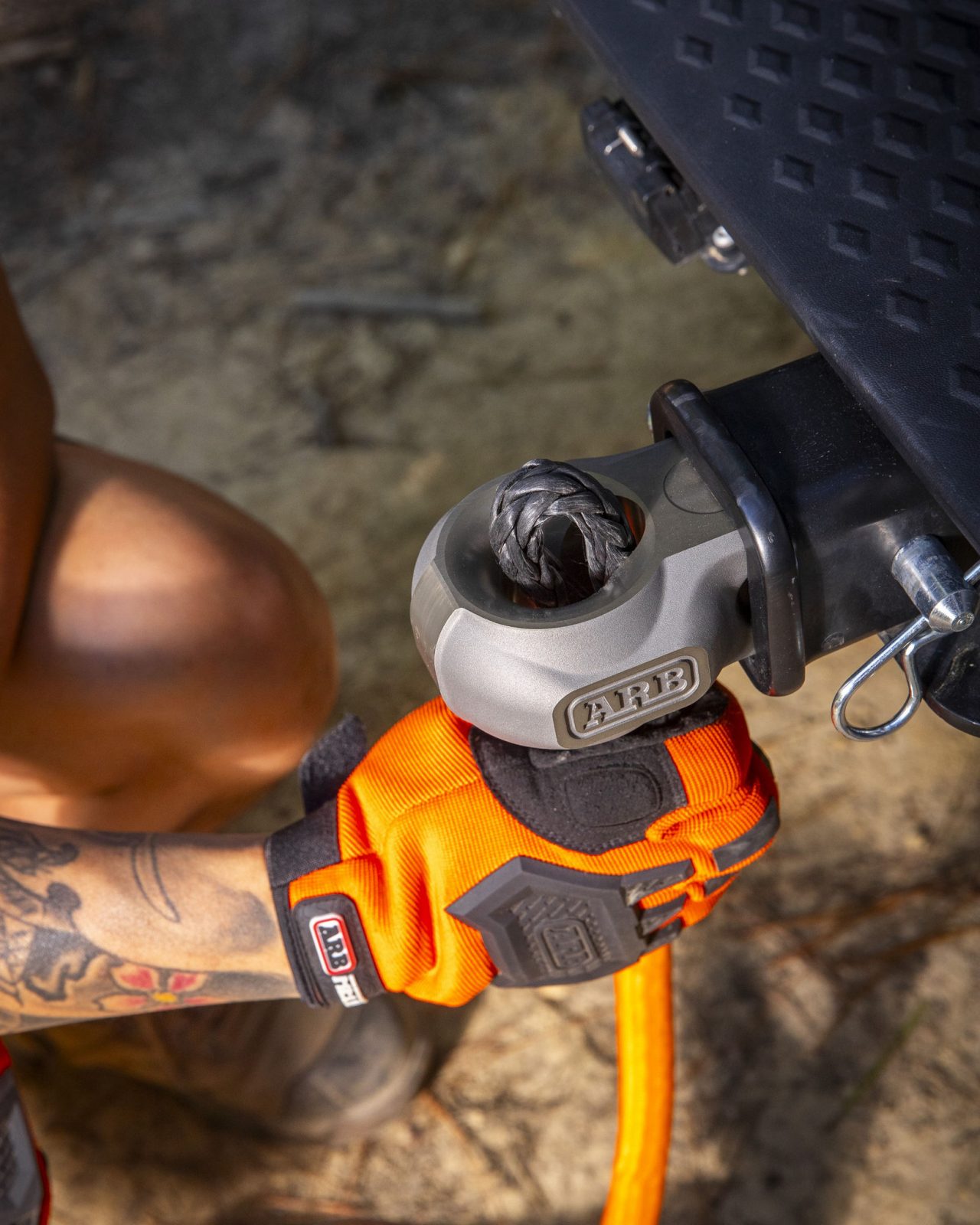

Designed exclusively for soft shackles, the elongated eye ensures even load distribution and maximum shackle life, while precision-machined edges and dual mounting holes guarantee smooth, user-friendly operation across most 50mm receivers.

Finished in a premium hard anodised coating for reduced friction, improved wear resistance, and long-term corrosion protection while looking awesome! Comes complete with a protective rubber boot to guard against knocks, scuffs and shin injuries when not in use.

FEATURES

MATERIAL

• Forged 7075 aerospace grade aluminium for ultimate strength.

• Hard anodised finish reduces the co-efficient of friction for less wear on soft shackles and reduces corrosion.

DESIGN

• Recessed core with two mounting holes suits majority of 50mm receivers.

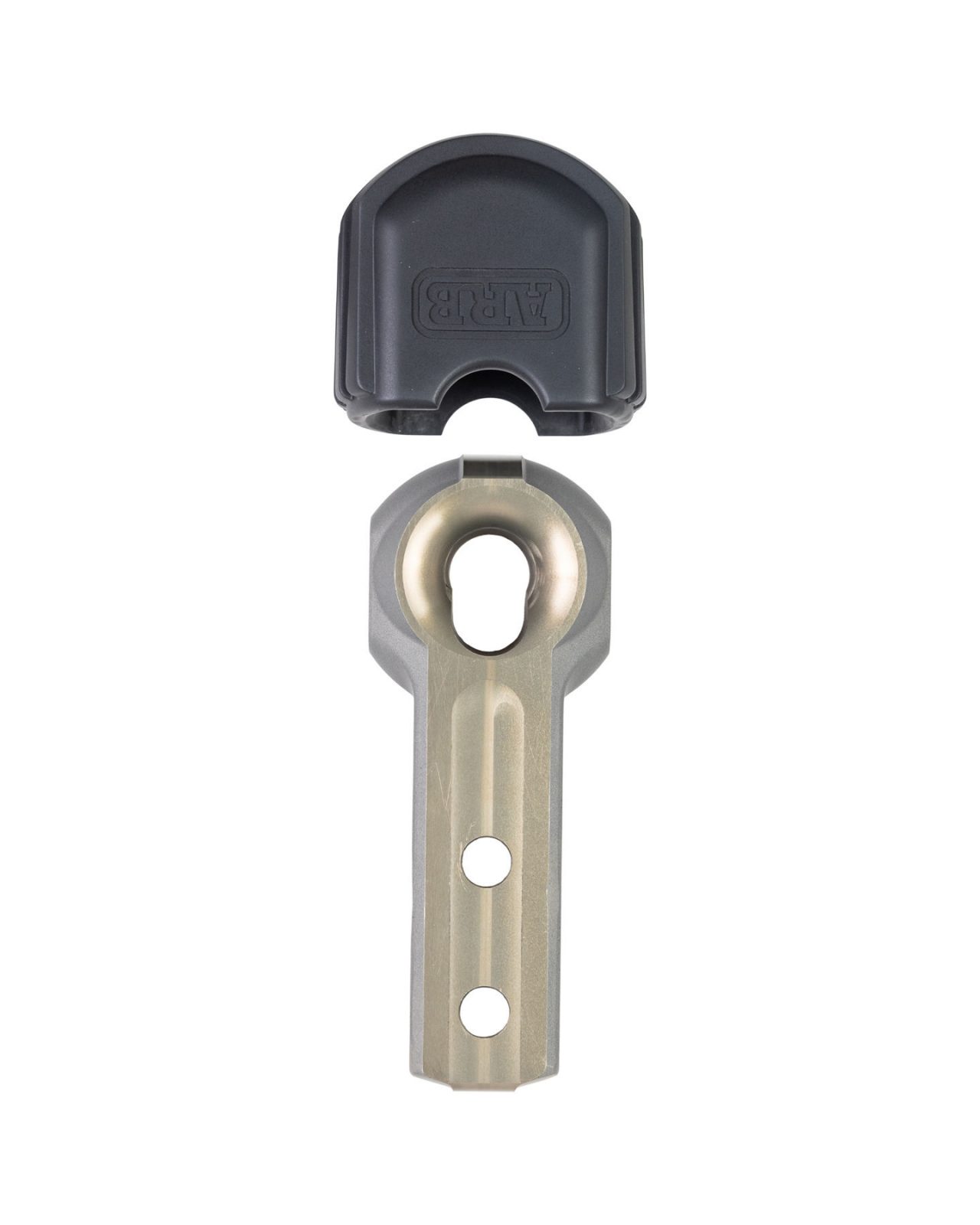

• Included rubber boot protects the hitch and against shin injury or scuffs.

PERFORMANCE

• Elongated eye keeps hitch radius as small as possible for even load distribution, better shackle life and easier attachment.

• Rounded machined corners for ergonomic useability.

CAPACITY

• MBS side pull 25K kgs

• Front pull tested to machine max of 55K kgs and passed.

3 Years Warranty

ARB prides itself on creating the best products that offer quality, reliability and practicality above all else. Naturally all ARB products manufactured and distributed by us come with a three years nationwide warranty.

DEMANDING MORE ADVENTURES?

Go even further with our extensive range of compatible gears.

WINCHES

Winches are built for strength, reliability and performance in tough recovery situations.

RECOVERY GEAR

Essential equipment for safe and controlled recoveries.

Recovery Points

ARB recovery points provide a safe, rated location for attaching recovery equipment.

Camping Accessories

ARB camping accessories are built to make every trip safer and more comfortable.

Closer Look

Engineered for demanding vehicle recoveries, the ARB Forged Recovery Hitch is manufactured from 7075 aerospace-grade aluminium for exceptional strength and durability. It delivers a 25,000kg Minimum Breaking Strength (MBS) side-pull rating and has been tested to 55,000kg front pull.

Designed exclusively for soft shackles, the elongated eye promotes even load distribution and improved shackle life. Precision-machined edges and dual mounting holes ensure smooth, user-friendly operation across most 50mm receivers.

A premium hard-anodised coating reduces friction and enhances wear and corrosion resistance while providing a refined finish. A protective rubber boot is included to help guard the hitch and reduce the risk of knocks, scuffs and shin contact when not in use.

Warranty 3 Years

Material Aluminium

Quality, Grade (a) 7075

Quality, Grade (b) Aerospace

Specification (a) Front Pull

max. load [kg] (a) 50000

Specification (b) Side Pull

max. load [kg] (b) 25000

Fitting Position Vehicle Rear

Product Classification (a) Recovery/Snatch

Product Classification (b) Recovery Accessories
