PRODUCT CODE: 1060001

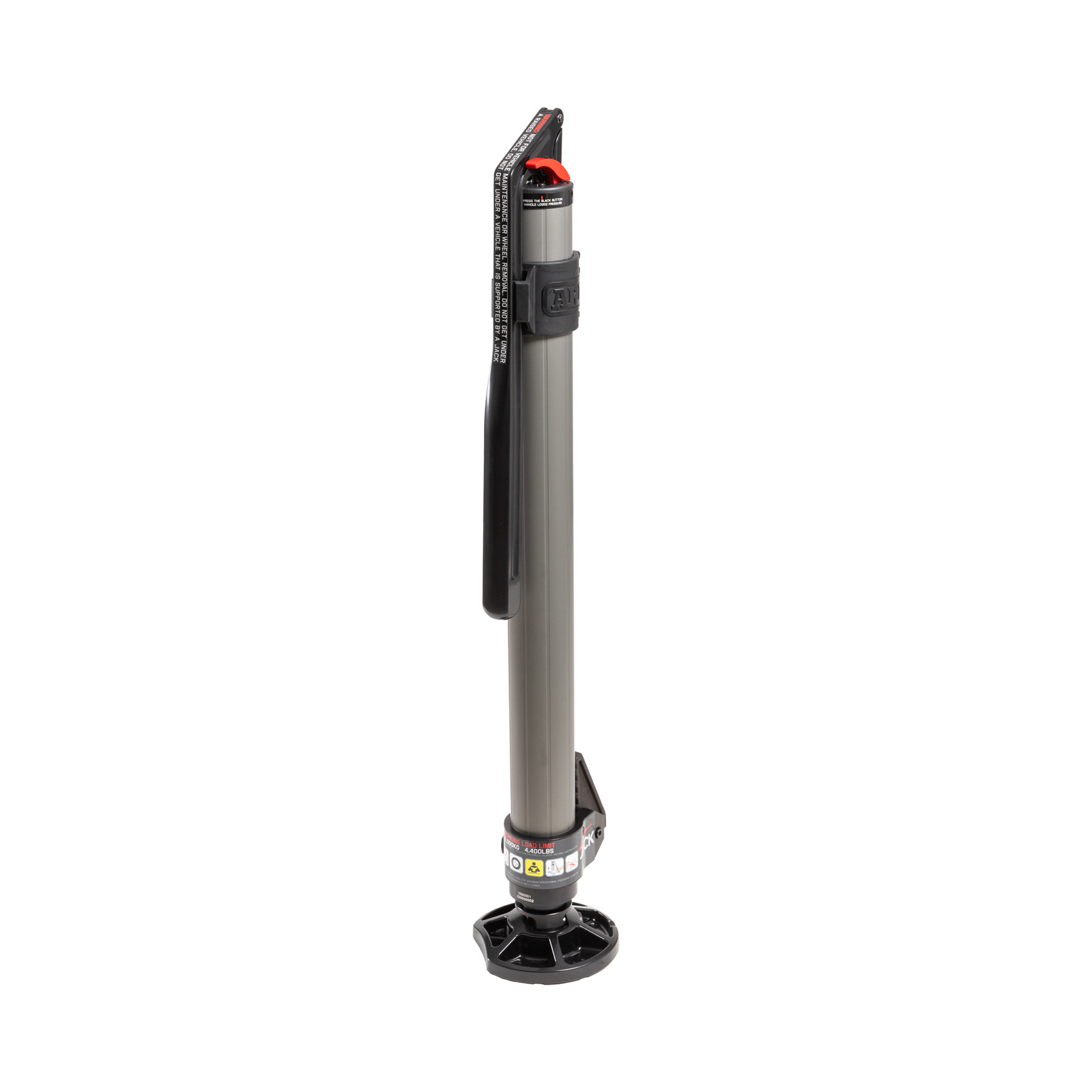

ARB Jack Hydraulic Long-Travel

The Hydraulic Long-Travel Recovery Jack

Sold as a Single item

Zip Pay Available. Learn More

service-icon

3 Years Warranty

service-icon

Australia Wide Shipping

MEET JACK

What happens when engineers get creative and bring hydraulic technology into the recovery space? Meet JACK.



For any off road tourer, it’s a well-known fact that no matter how precisely a trip may be organised, things don’t always go as planned; and when it comes to prepping your rig ready to kick up some dirt and battle the toughest terrains, you can count on the ARB JACK to have your back when tackling the trickiest of recovery missions.

FEATURES

POWERFUL HYDRAULIC TECHNOLOGY

Adding a new dimension to traditional techniques, the long-travel ARB JACK is backed by the unique power of hydraulic technology. Kicking into action when even the lightest force is applied to the handle, the hydraulics will smoothly jack the vehicle up at up to 13mm increments with each downward manoeuvre. Whilst in action, a black rubber body bumper shields the vehicle from risk of damage during the recovery.

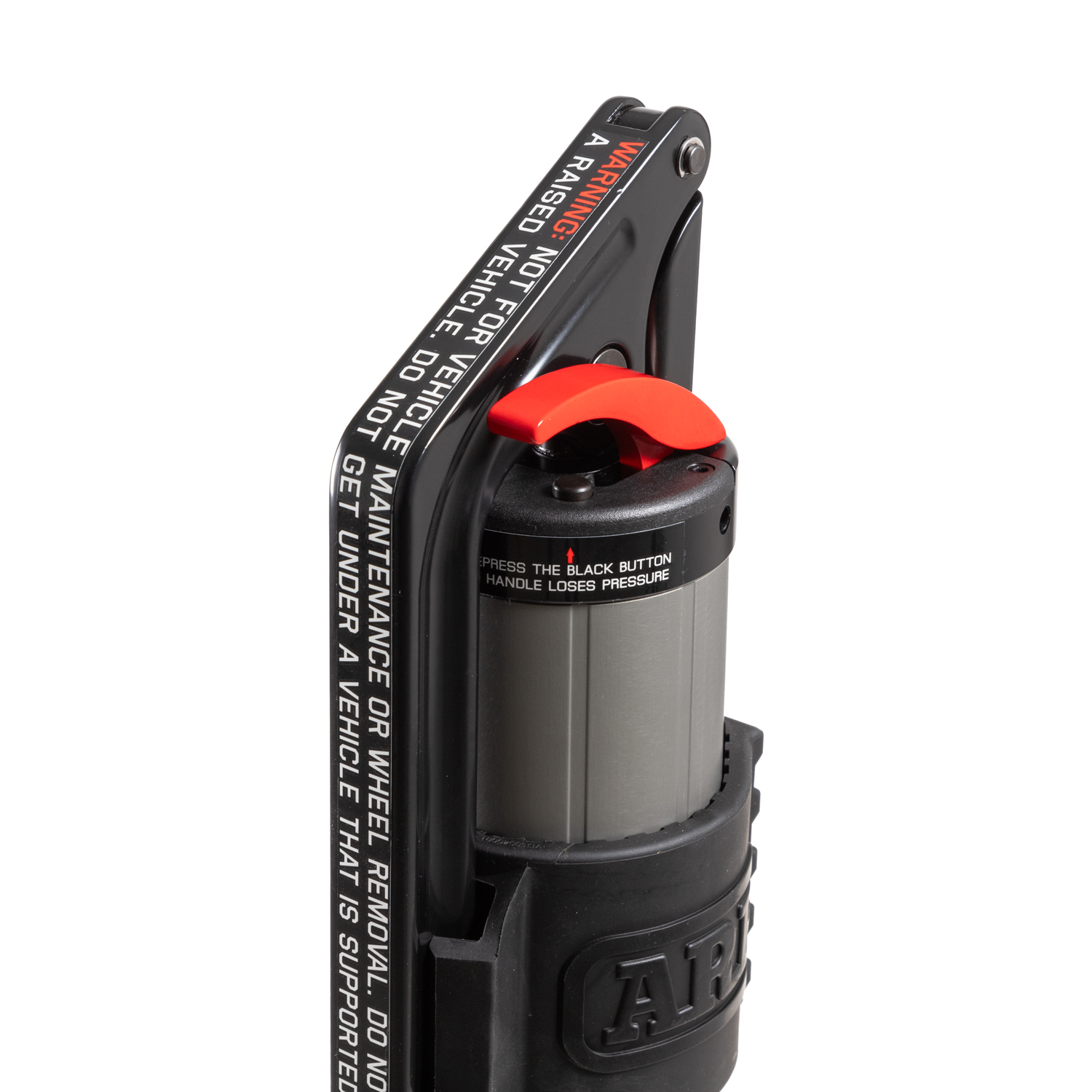

The easy-to-access red lowering lever ensures lowering the vehicle is achieved swiftly and safely thanks to the two-stage descent feature and safety stop. Empowering the user with dual lowering speeds, with a press of the lever, a slow or rapid descent can be achieved.

KEEPING A LOW PROFILE

Carefully designed upon the importance of matching ergonomic form with safe and reliable function, the handle’s high position and top pivot function provides users with ultimate control while preventing the need to uncomfortably kneel down in a deep trench to operate.

READY FOR HEAVY LIFTING

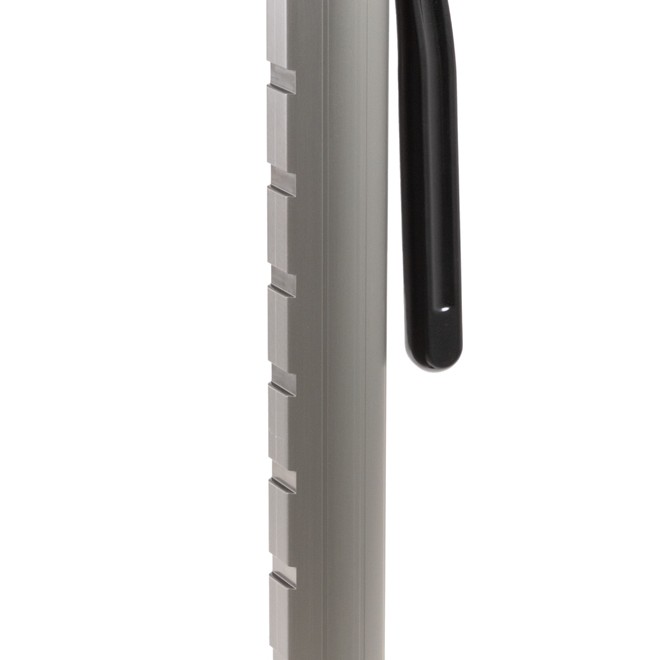

Built tough to take on the grunt of the most challenging recovery missions, alike to the heavy-duty Old Man Emu BP-51 shock absorbers, JACK’s body is made from aircraft grade 6061 T6 aluminium for maximum strength. Running up the body, 9 hooking points offer the adjustable hook a wide range of lifting heights; capable of lifting up to a total of 2,000kg.



When under load, an internal blow-off valve provides overload protection to safeguard both JACK and most importantly, the user, from the dangerous consequence of the vehicle suddenly dropping if the working limit is exceeded.

STAND YOUR GROUND WITH 360° ADJUSTABILITY

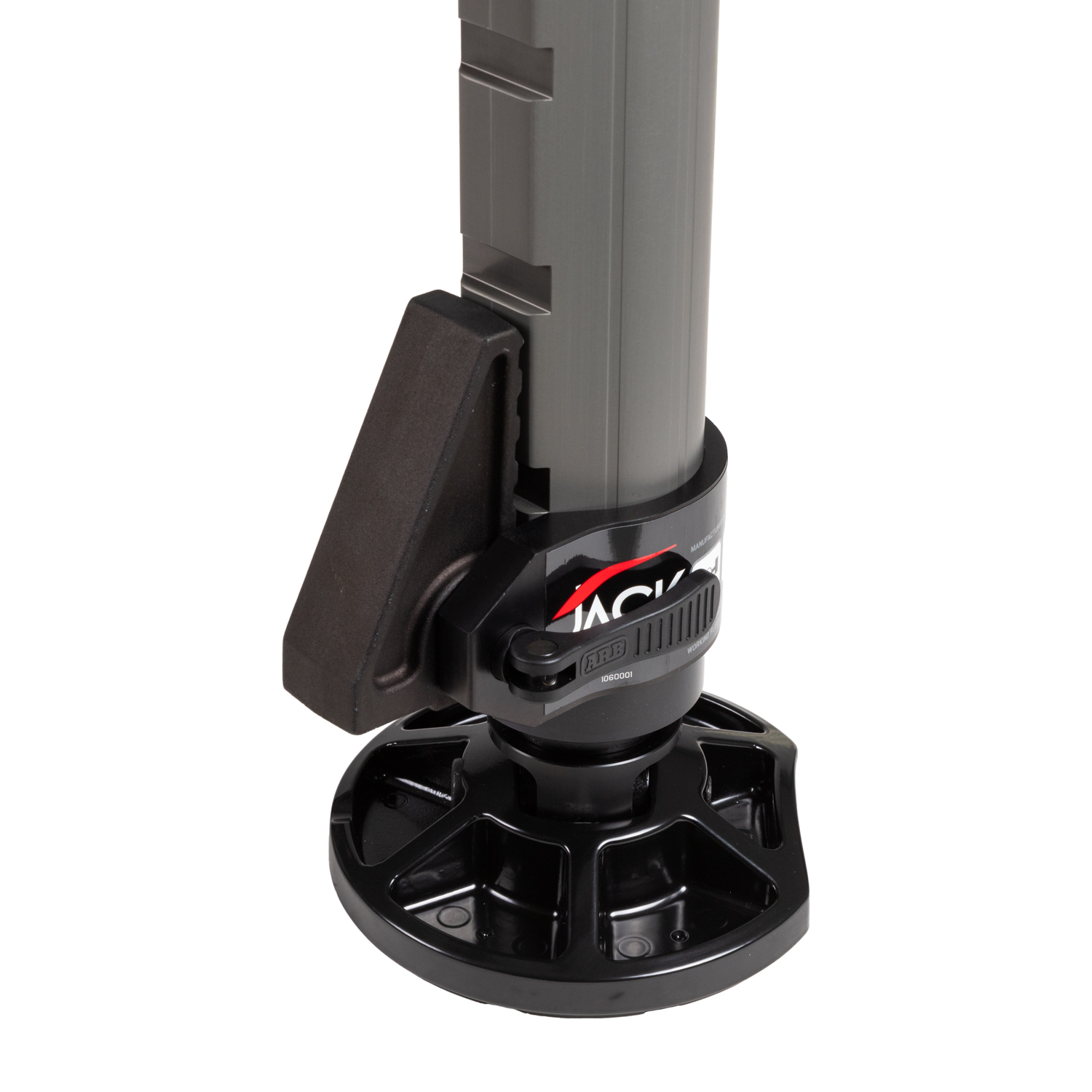

JACK’s body can be rotated 360° to align the pivoting foot to match the terrain.

JACK is compliant with the following standards and regulations:

  • AS/NZ 2693 – 2007
  • ASME B 30.1 – 2015

JACK BASE

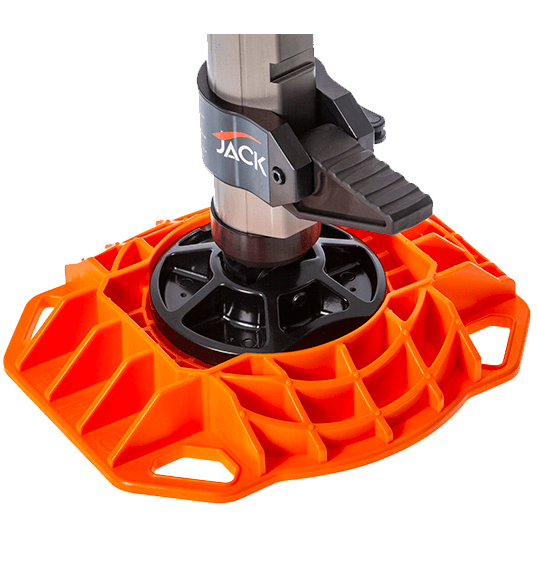

Designed to suit the ARB JACK or Hi-Lift Jack, the ARB Jack Base provides 4WDers with a sturdy surface during recovery missions to limit slippage or sinking into soft ground when using a jack.

Made from a heavy-duty, high density polyethylene construction and supporting up to 7,000kg with a non-slip textured base, the ARB Jack Base can also be mounted on top of ARB TRED Pro boards.

Note: ARB Jack Base is sold separately.

3 Years Warranty

ARB prides itself on creating the best products that offer quality, reliability and practicality above all else. Naturally all ARB products manufactured and distributed by us come with a three years nationwide warranty.

Closer Look

The ARB JACK is a revolutionary hydraulic long-travel jack, engineered to provide a safer, faster, and more controlled lifting solution for off-road recovery. It brings the power and smooth operation of hydraulic technology to a field dominated by mechanical jacks, offering a new level of performance and user safety.

Backed by the unique power of hydraulic technology, the JACK lifts a vehicle in 13mm increments with each easy downward stroke of the handle, taking the strain out of the recovery process. A two-stage, valve-controlled descent allows for either slow or rapid lowering, giving the operator complete control, while an internal blow-off valve provides overload protection against suddenly dropping the vehicle.

Built from aircraft-grade 6061 T6 aluminium, the JACK is immensely strong yet lightweight. It features an adjustable hook with 9 lifting points on the body and a 360-degree rotating foot to match any terrain, making it the ultimate modern tool for serious off-road recovery.

Maximum Carrying Load [kg] 2000
Travel range per cylinder unit [mm] 540
Housing material Aluminium
Quality, Grade 6061 T6
Version (a) AS/NZ 2693 - 2007
Version (b) ASME B 30.1 - 2015
Stroke extension [mm] 13
Lifting Height from [mm] 160
Lifting Height Up To [mm] 1230
Lifting stages 9
Operating Mode hydraulic
Warranty 3 Years
Net weight [kg] 10.5
