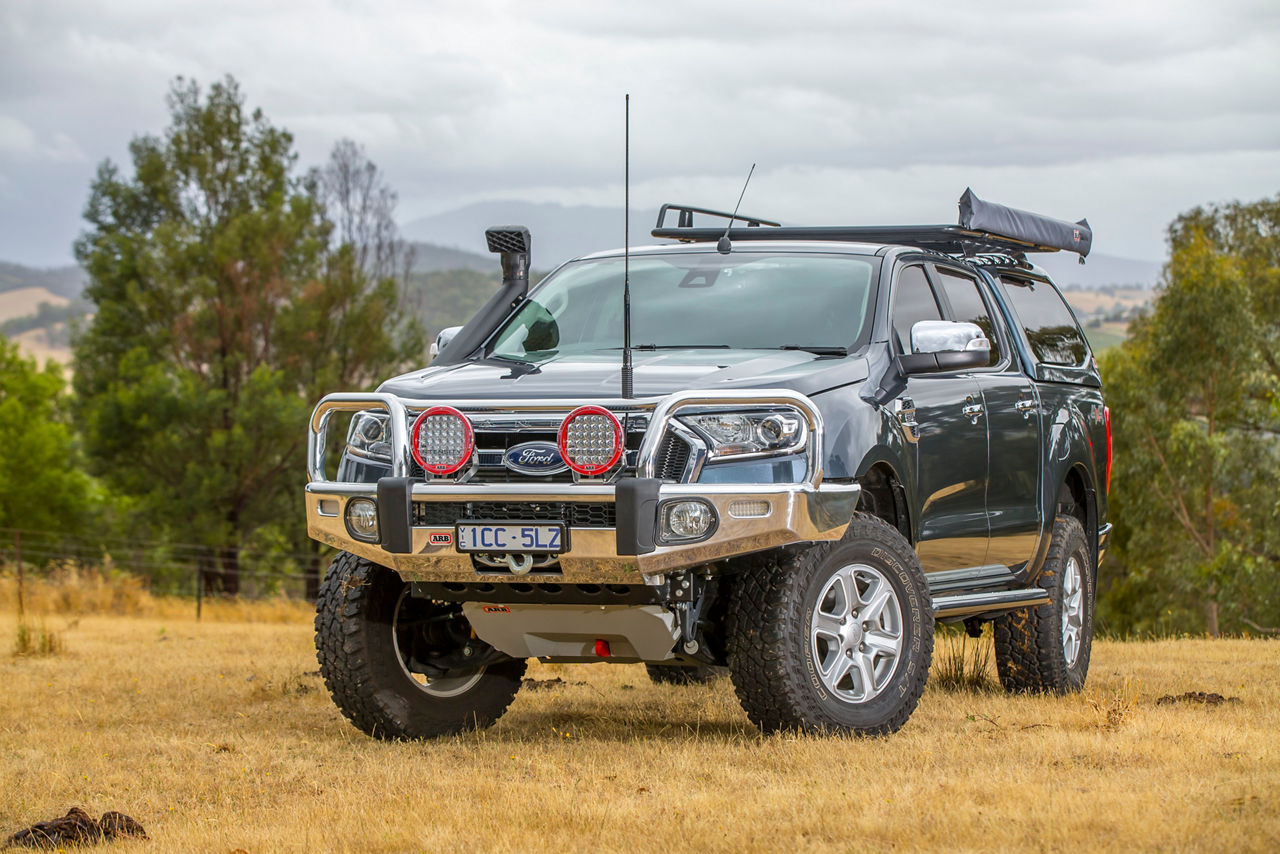

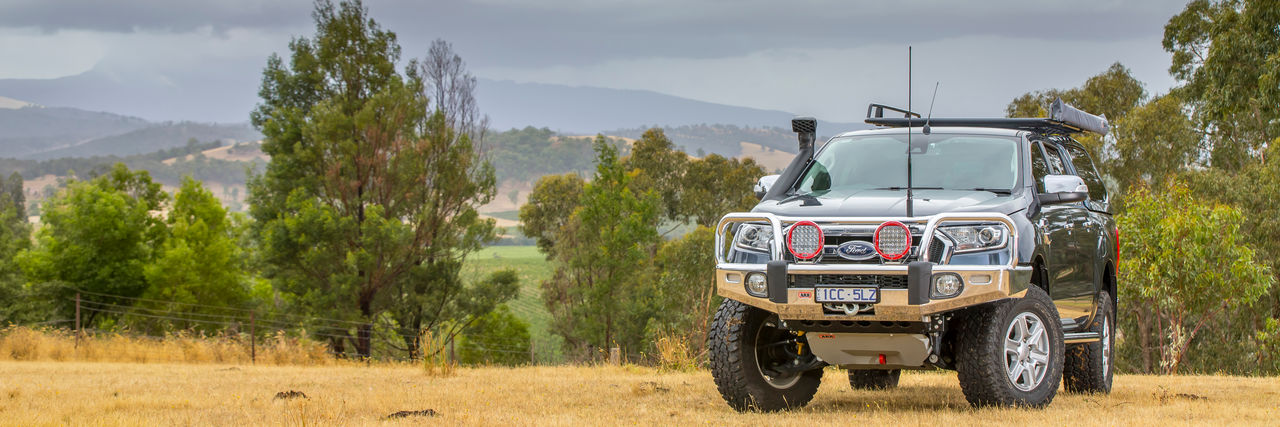

Alloy Bull Bar

Hotspot 1

CB aerial brackets—The Alloy bull bar incorporates two CB aerial brackets welded behind the top cross tube. Custom fit, clamp on brackets is also available for additional antenna mounting.

Hotspot 2

Outer tubing—60 mm outer tubing provides overall strength and gives the Alloy bar an on-road presence.

Hotspot 3

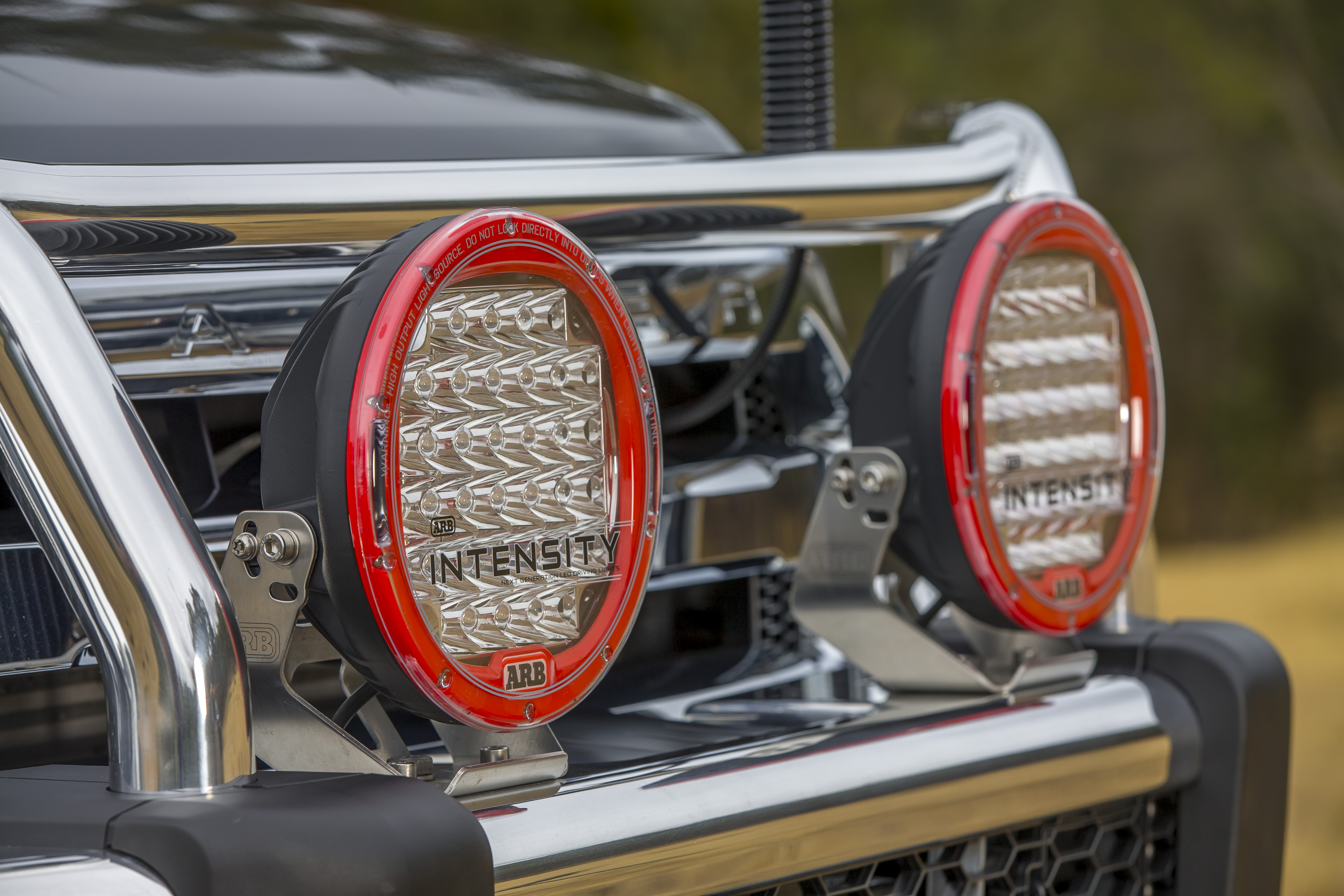

Driving light provision—Exceptionally durable and secure, all ARB bars serve as an ideal platform to mount driving lights, helping ensure maximum performance and longevity. Driving lights mounted to a high-quality bull bar prevents problems such as excessive movement, a vibrating beam pattern, premature bulb failure and eventual fatiguing of the light bodies.

Hotspot 4

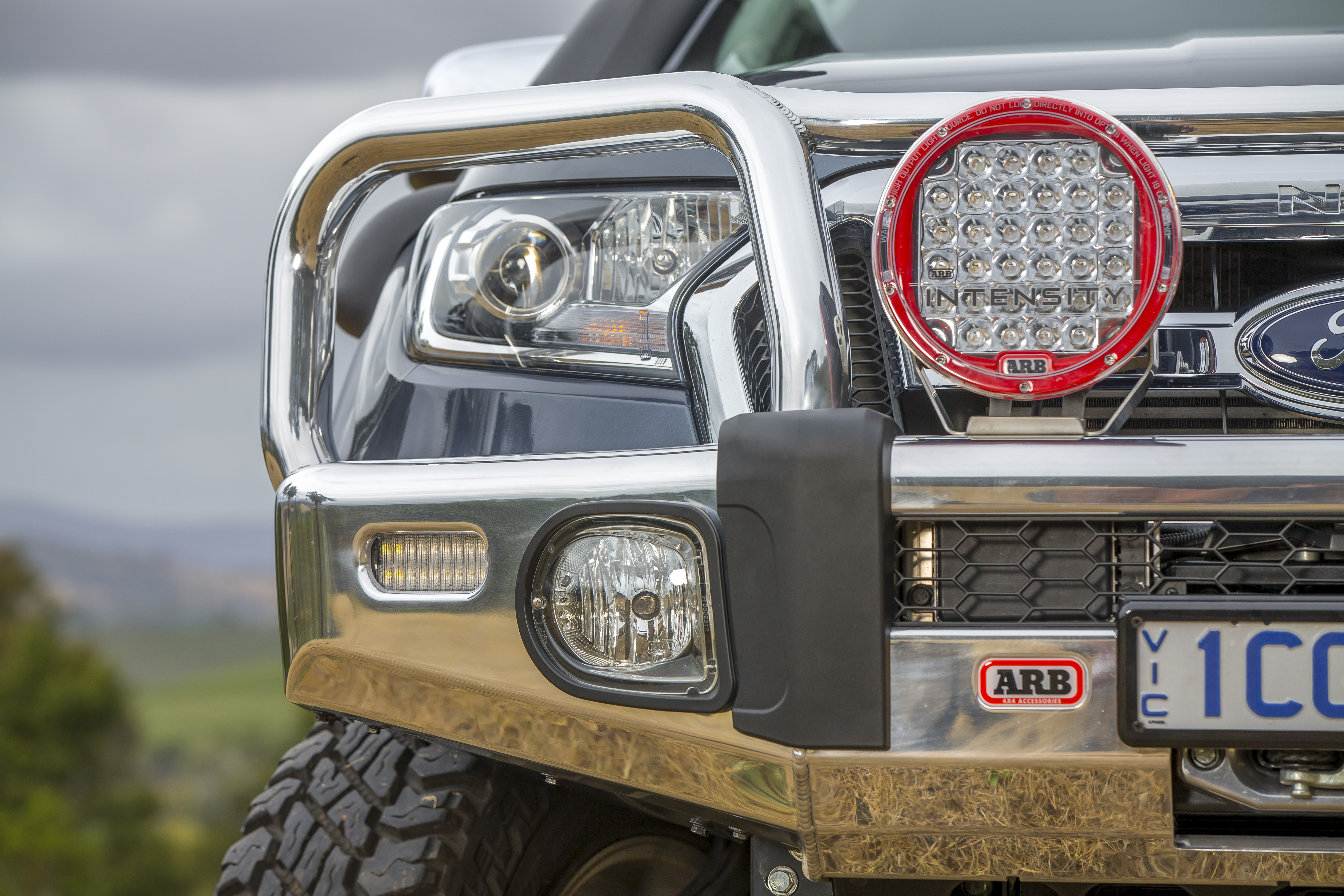

LED indicators and clearance lights—12 high intensity yellow LEDs and 4 white LEDs provide increased light output in all conditions.

Hotspot 5

Fog lights—Perfect for driving in inclement weather, these fog lights (LED or halogen options) provide a broad spread of light to illuminate the road ahead.

Hotspot 6

Split pan design—The wide, split pan design enhances the strength of the bar, while providing the radiator and engine with a massive amount of air flow. An integrated winch clutch opening makes winch operation simple.

Hotspot 7

Wing design—The furthest most point from the chassis and often the point of impact in an animal strike, the wing area is by far the most vulnerable. ARB pioneered the multi fold upswept and tapered wing design, which provides an enormous amount of strength and maintains an optimum approach angle.

Hotspot 8

Winch compatibility— Winch compatible and non-winch compatible Alloy bull bar options are available, depending on the vehicle application. Mounting a winch to a vehicle requires a properly supported structure that is designed to accommodate the stresses of winching. When using a snatch block to increase winching capacity, the forces are multiplied to several times the rated capacity of the winch. The ARB Alloy bar features the option of fitting a winch and is designed and tested to endure and exceed such loads. NOTE: All Alloy bull bars are not winch compatible.

Hotspot 9

Air bag compatible—With an air bag equipped vehicle, it is essential that the vehicle's crush rate and air bag triggering are not altered when a bull bar is installed. ARB assesses each vehicle's frontal crush characteristics and replicates the crush rate into the design of each air bag compatible bull bar and its steel mounting system. This achieves maximum possible vehicle and passenger protection without affecting the crash pulse.
