PRODUCT CODE: C000003

Old Man Emu BP-51 Suspension Kit

The BP-51 is a user adjustable internal bypass 4WD shock absorber that delivers increased comfort and control; both on and off road.

Sold as Pack

Set Location

Not sure if this is the right? Find the best Suspension for You

Zip Pay Available. Learn More

Old Man Emu BP-51 Suspension Kit

Discover the OME BP-51 Shock Absorber!

BP-51 SHOCK ABSORBER FEATURES

Hotspot 1

Remote reservoir—6061 grade aluminium remote oil canister allows for increased oil volume, resulting in lower oil temperatures.

Hotspot 2

High temperature hose—Durable Dash 6 high temperature Teflon hose incorporates high flow fittings for optimum oil flow.

Hotspot 3

Spring seat—6061 grade aluminium spring seat.

Hotspot 4

X5K coil—High quality X5K grade steel coil, for use on coil over models, incorporates application specific design.

Hotspot 5

Spring adjustment—6061 grade aluminium adjustor allows adjustment of spring preload and ride height.

Hotspot 6

Top hat—6061 grade aluminium top hat.

Hotspot 7

Spherical bearings—Large, Teflon lined spherical bearings.

Hotspot 8

Bushing—Quality oversized rubber bushings result in excellent longevity.

Hotspot 9

Shaft guard—Replaceable, impact resistant, Polyester TPE (Thermoplastic Polyether Elastomer) shaft guard prevents damage to the shock absorber shaft from stones and other debris.

Hotspot 10

Piston shaft—Hard chromed, ground piston shaft for the ultimate in strength and durability.

Hotspot 11

Adjustor—External, independent rebound and compression adjustment allows fine tuning of ride comfort and control to suit varying vehicle and trip requirements.

Hotspot 12

Shock absorber body—51 mm bore, 6061 grade aluminium shock absorber body with type III, hard anodised finish for increased heat dissipation and corrosion resistance.

Hotspot 13

Piggy back clamp—Remote reservoir piggy back clamp allows easy connection of the remote oil reservoir to the main shock absorber body.

POSITION SENSITIVE DAMPING

Damping increases as you get closer to the end zone, meaning you’ll experience increased control at end zones and comfort at ride height.

ADJUSTABLE

External, independent rebound and compression on-car adjustment allows fine tuning of ride comfort and control to suit varying vehicle, load and trip requirements.

QUALITY ALUMINIUM MATERIAL

51 mm bore, 6061 grade aluminium shock absorber body with type III, hard anodised finish for increased heat dissipation and corrosion resistance.

BOLT-IN APPLICATION SPECIFIC

Every BP-51 is expertly engineered to bolt-in to your vehicle, meaning no fitting modifications are required and no adjustments.

How to Adjust OME BP-51 Shock Absorbers?

GREATER PERFORMANCE : THE BENEFIT OF BP-51

Whilst an Old Man Emu suspension system incorporating Nitrocharger shock absorbers is a vast improvement over standard suspension systems for both on and off road use, by design, there are always compromises between comfort and control.

Old Man Emu’s BP-51 high-performance bypass shock absorbers bring the latest in racing bypass technology to everyday 4WDers, giving the ability to customise their ride with user adjustable compression and rebound damping control while still being fully compatible with Old Man Emu springs and suspension related components.

3 Years Warranty

ARB prides itself on creating the best products that offer quality, reliability and practicality above all else. Naturally all ARB products manufactured and distributed by us come with a three years nationwide warranty.

DEMANDING MORE ADVENTURES?

Go even further with our extensive range of compatible gears.

Bull Bars

ARB Bull Bars will provide substantially improved protection for vulnerable mechanical components against animal strikes.

SUSPENSION

Old Man Emu produces suspension to suit you, no matter your lifestyle.

Recovery Equipment

ARB’s vehicle recovery accessories are engineered and manufactured to the highest standards, making them ideal for recreational use as well as competition.

VEHICLE LIGHTING

ARB offers one of Australia’s most extensive selections of high-quality vehicle lighting.

Closer Look

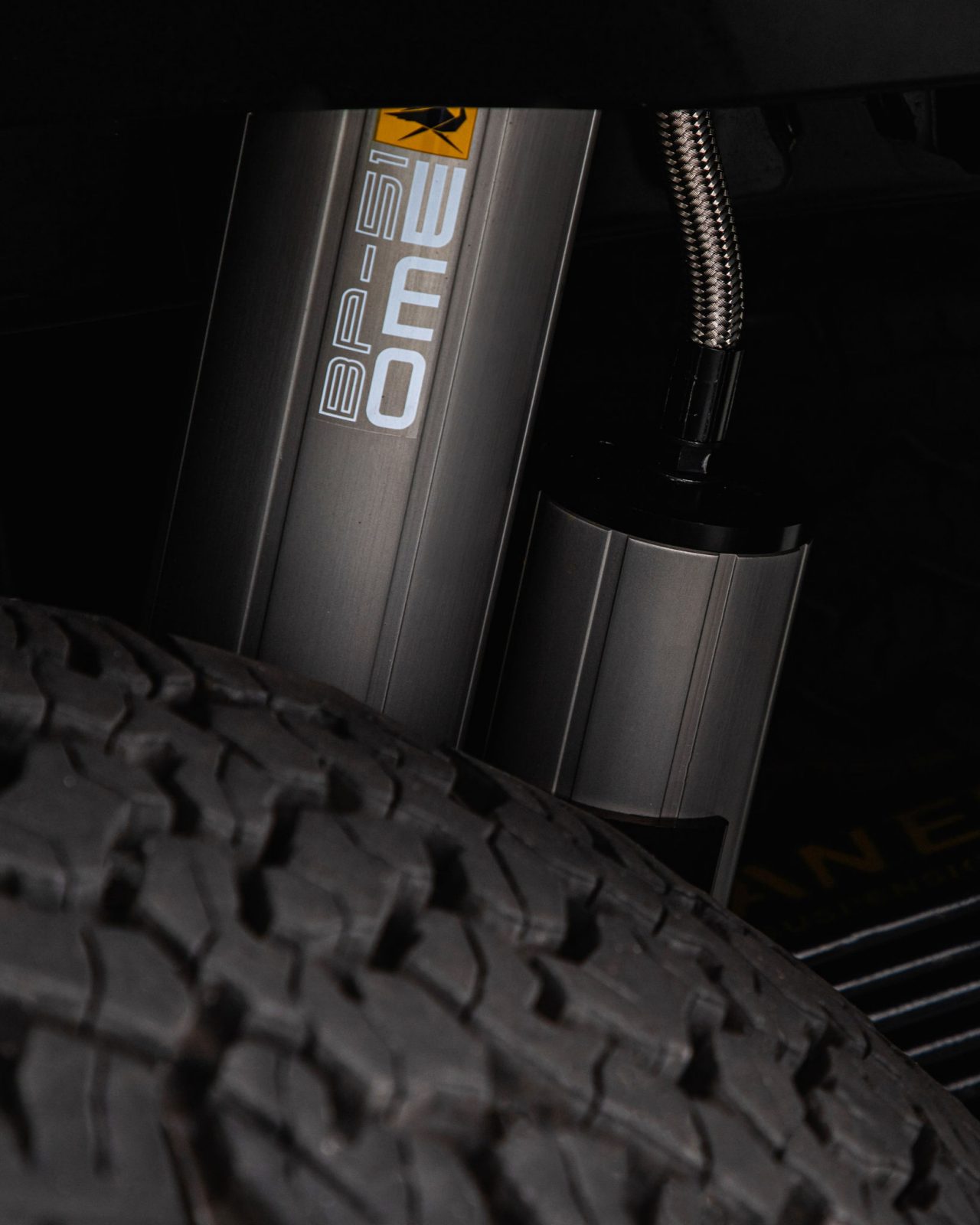

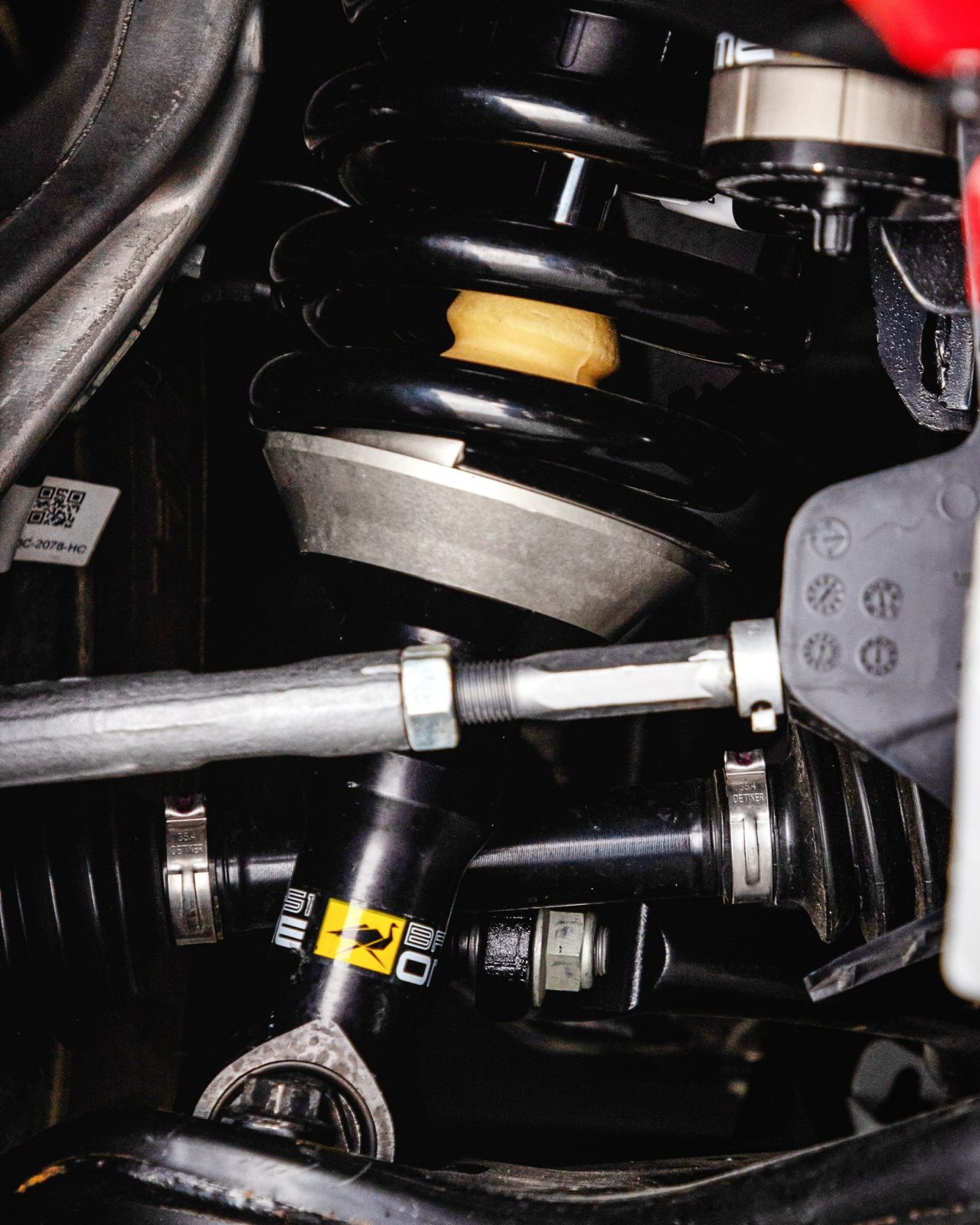

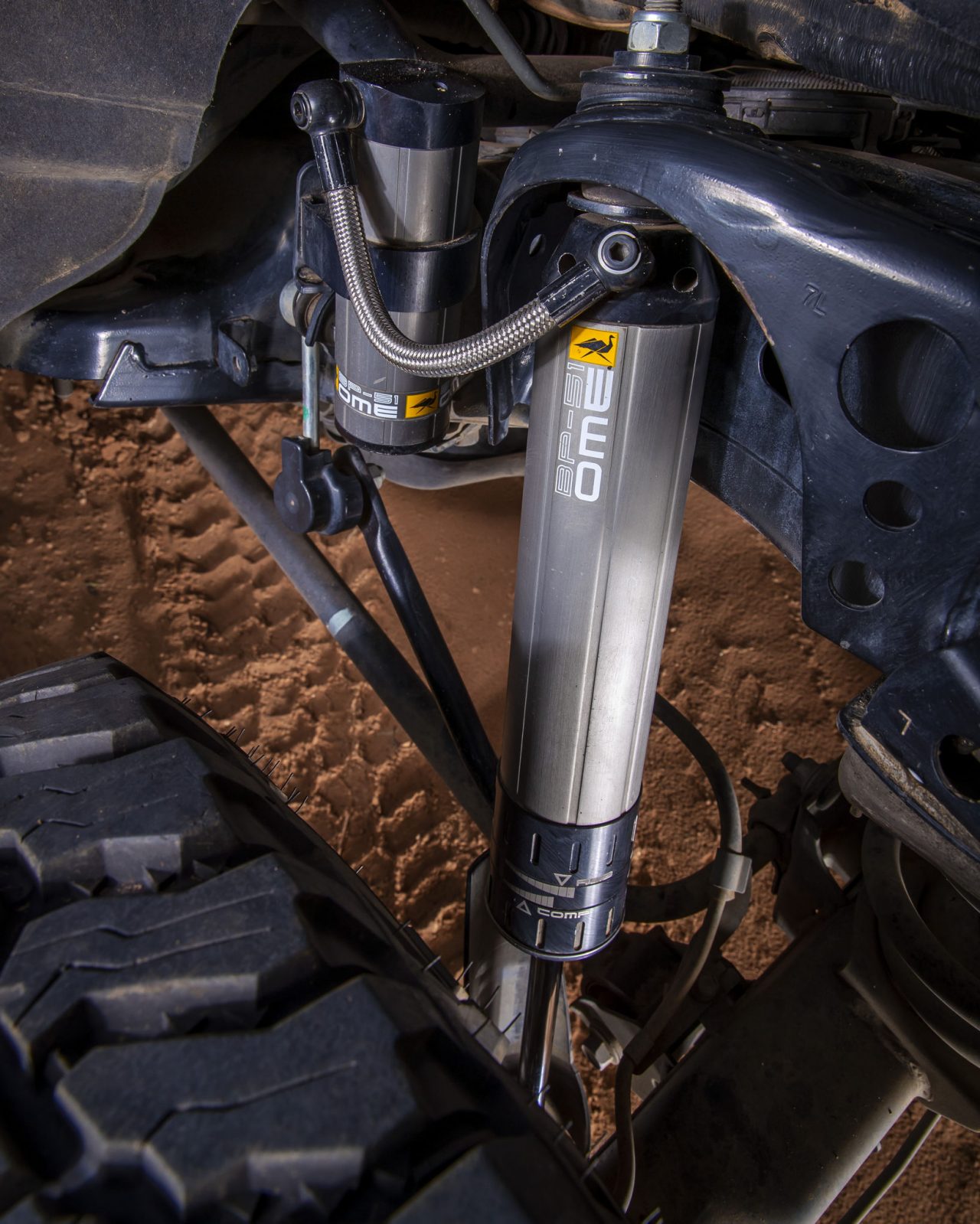

The BP-51 is a user adjustable internal bypass 4WD shock absorber that delivers increased comfort and control; both on and off road. All BP-51 shock absorbers are designed and manufactured in-house by ARB using state of the art machining and hard anodising equipment.

The body of a BP-51 shock absorber is manufactured using 6061 anodised aluminium to dissipate heat more efficiently than steel or alloy steel and provide superior corrosion resistance. Extensive dyno, real world and destructive testing has been undertaken during the development process to ensure that reliability, longevity and performance all meet ARB’s impeccable standards.
