PRODUCT CODE: CKMA12

On-Board Air Compressor (Brushed) Single 12 Volt

The Proven On-Board Air Solution

Sold as a Single item

Set Location

Select Fitment Option

Professionally Installed by ARB + $400.00 AUD Deliver Direct or Click & Collect

Zip Pay Available. Learn More

3 Years Warranty

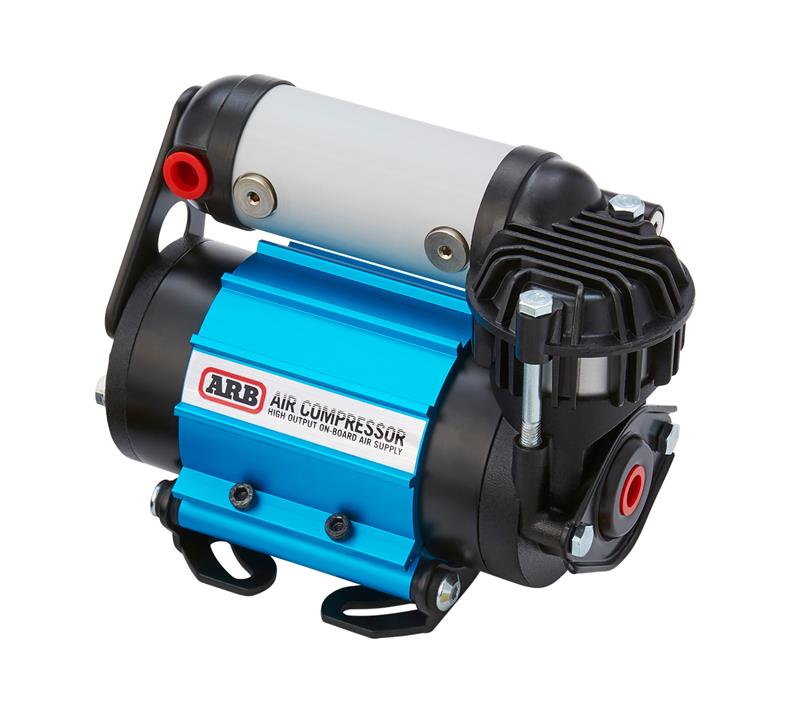

On-Board Air Compressor (Brushed) Single 12 Volt

ARB BRUSHED ON-BOARD SINGLE AIR COMPRESSOR - 12 VOLT

The ARB Brushed On-Board Single Air Compressor has been constructed entirely of lightweight, high-grade materials. With a class-leading flow rate, this compressor has been designed for Air Locker activation (on-board model), fast tyre inflation and a range of other functions whether they be for work or play.

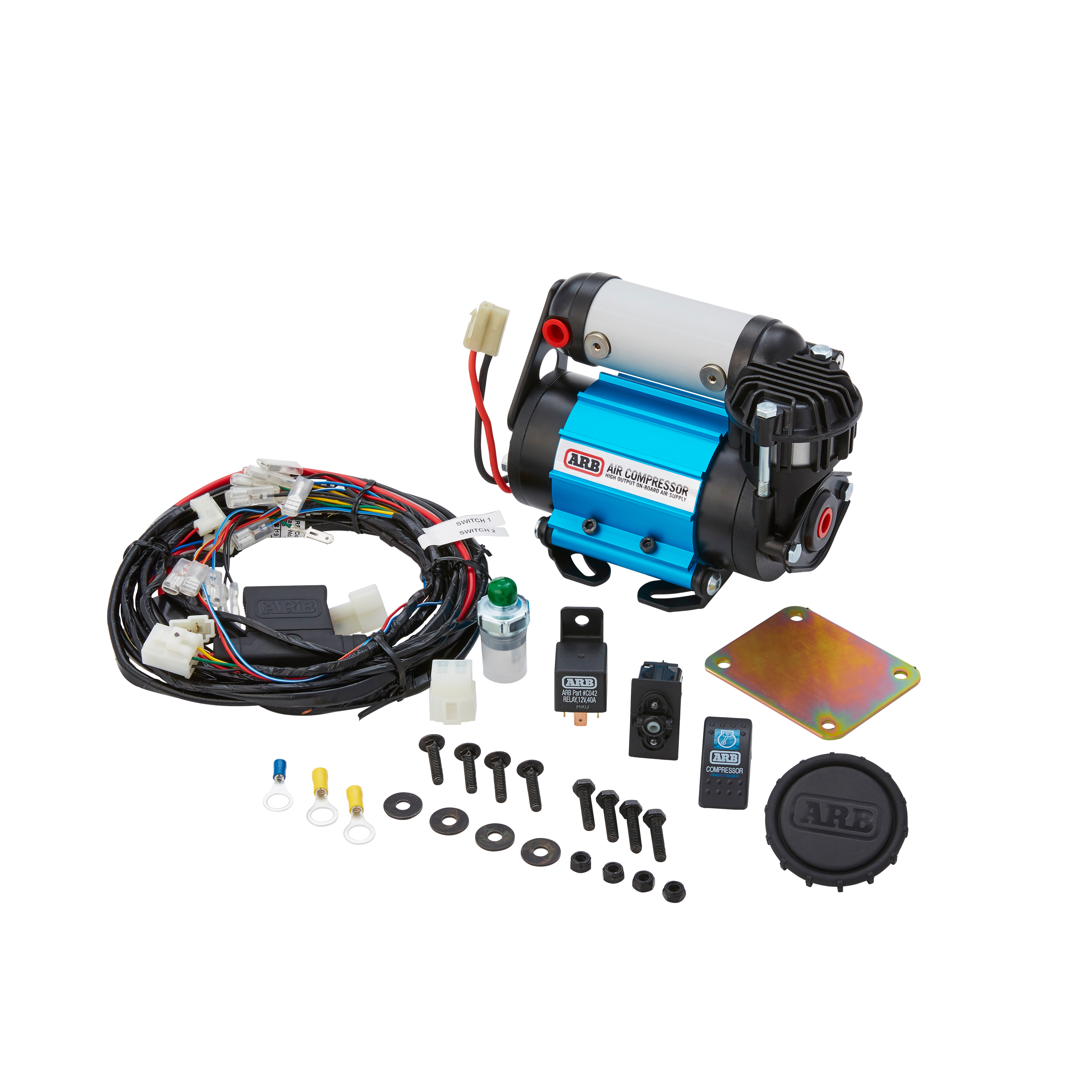

The vehicle mounted kit comes with a full wiring loom and mounting hardware for easy installation. Since its launch in 2009, this iconic product has been proudly designed and manufactured by ARB in Kilsyth.

THE COMPLETE SOLUTION

• Sealed for moisture and dust resistance

• Hard anodised cylinder bore for reduced friction

• Teflon-impregnated carbon fibre piston seal for maximum trouble-free life

• Anodised mounting bracket dissipates motor heat and allows compressor to be repositioned 180 degrees on vehicle mounted models

• Quality components for quiet operation and extra-long life

• Constructed entirely of lightweight, high strength engineering grade materials

• Over-pressure safety valve equipped

• Motor is internally thermal protected against extreme temperature damage

• Heavy duty maxi-fuse equipped for professional in-line circuit protection

THE LEADER IN BRUSHED COMPRESSORS

Since 2009, ARB has offered a range of brushed compressors to suit every application. Our tried-and-tested ARB Brushed Compressor has led the way in compressor technology for years. Still at the forefront of the brushed market, it’s available in single and twin versions, as well as mounted and portable options.

For ARB Air Locker only applications, we also have the ARB Air Locker Activation System allowing the performance you need to run an Air Locker at a fraction of the footprint.

3 Years Warranty

ARB prides itself on creating the best products that offer quality, reliability and practicality above all else. Naturally all ARB products manufactured and distributed by us come with a three years nationwide warranty.

DEMANDING MORE ADVENTURES?

Go even further with our extensive range of compatible gears.

Air Compressors

ARB Air Compressors provide many advantages when exploring the great outdoors. At ARB, we design and manufacture a range of high output 4X4 air compressors built for long-term performance.

TYRE & COMPRESSOR ACCESSORIES

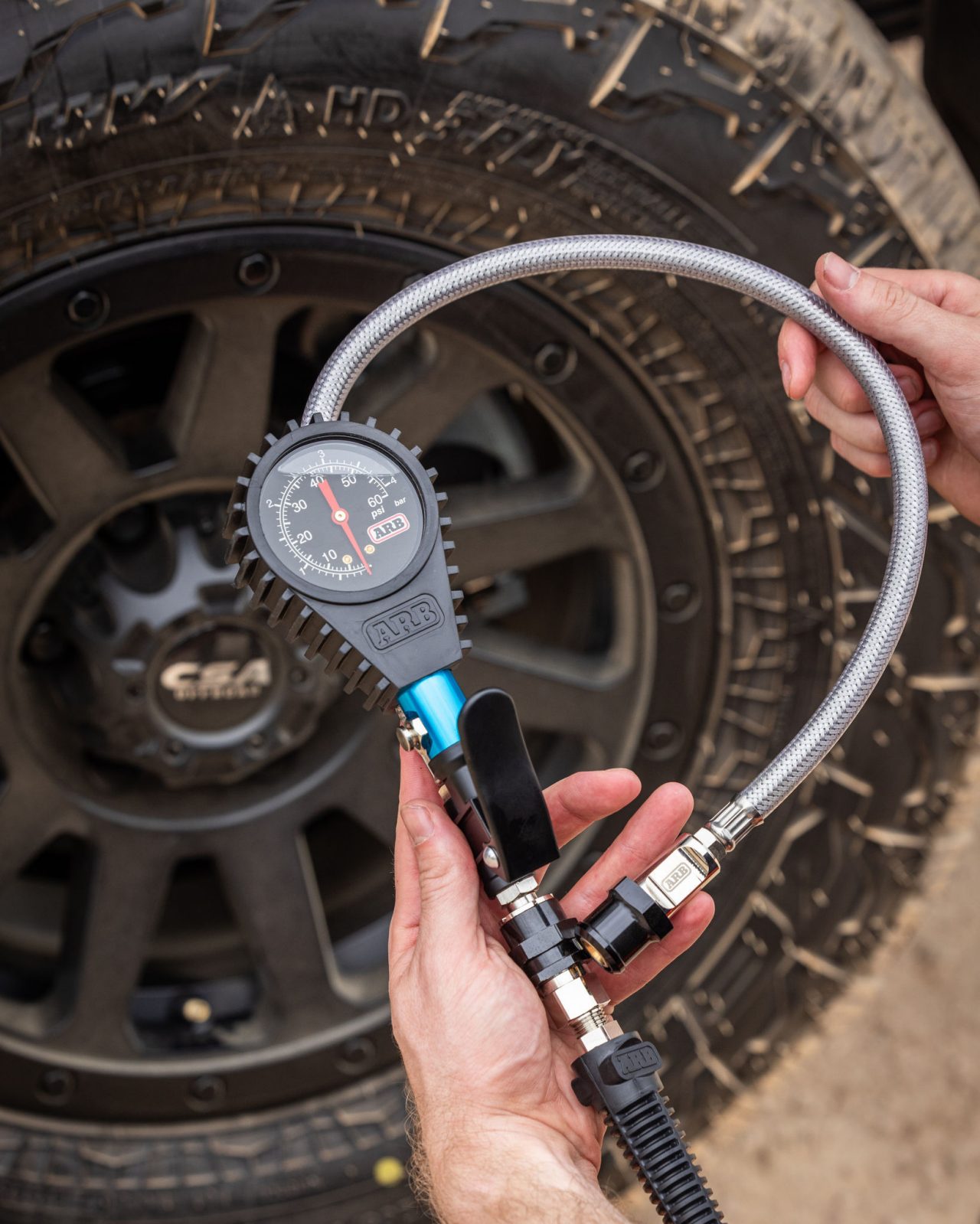

From inflation kits to pressure gauges, ARB’s tyre compressor accessories make on-the-go tyre management fast and accurate.

Air Locker

ARB Air Lockers are an Australian designed and manufactured selectable differential locker that can be activated at the flick of a switch at any speed.

LINX

LINX is a unique modern controller that declutters the dashboard and centralises the command of vehicle accessories.

Closer Look

The ARB On-Board Air Compressor (Brushed) is the proven and trusted solution for a permanently mounted, reliable source of compressed air. This 12 Volt single compressor is engineered to provide an instant and dependable air supply for a range of off-road functions, from actuating ARB Air Lockers to rapid tyre inflation, delivering an impressive 87.2 litres per minute at 0 kPa and 65.9 litres per minute at 200 kPa.

Constructed from lightweight, high-strength materials and sealed against moisture and dust, this compressor is designed to withstand the harsh conditions of under-bonnet or in-cabin mounting. The CKMA12 model features a 50% duty cycle, ensuring reliable performance for essential tasks. It includes integrated overheating protection, a pressure differential switch, and a robust particulate filter for enhanced durability and longevity.

Each on-board kit includes a full wiring loom and universal mounting hardware for a professional and reliable installation. With a hard-anodised cylinder bore and a Teflon-impregnated piston seal, every ARB compressor is built for quiet operation and a long, trouble-free service life, backed by a 3-year warranty, ensuring air is always on hand when you need it most.

Type Single Compressor

Tyre Inflation Fast

DC voltage [V] 12

Duty cycle to [%] 50

Pressure to [kPA] (a) 0

Current rating at 20-¦C [A] (a) 14.2

Volume Flow Up To [l,min] (a) 87.2

Pressure to [kPA] (b) 200

Current rating at 20-¦C [A] (b) 25.2

Volume Flow Up To [l,min] (b) 65.9

Overheating protection Yes

Switch with pressure differential switch
