PRODUCT CODE: CKMTA12

ARB On-Board Air Compressor (Brushed) Twin 12 Volt

The Proven On-Board Air Solution

Sold as a Single item

Set Location

Select Fitment Option

Professionally Installed by ARB + $400.00 AUD Deliver Direct or Click & Collect

Zip Pay Available. Learn More

3 Years Warranty

ARB On-Board Air Compressor (Brushed) Twin 12 Volt

ARB BRUSHED ON-BOARD TWIN AIR COMPRESSOR - 12 VOLT

Introduced in 2011, CKMTA12 was developed to deliver higher output, building on the success and trusted performance of the CKMA12 in both military and commercial markets. Permanently mounted, the range of ARB vehicle mounted compressors are water, dust, heat and shock resistant to withstand the rigours of off road travel. Each kit includes a full wiring harness with relay, multi position mounting bracket and pressure switch.

Providing optimum power, the ARB twin motor design delivers class-leading air flow for fast inflation purposes. Constructed of lightweight, high-strength engineering grade materials, it incorporates quality components for quiet operation and extended durability. The twin motors incorporate internal thermal protection against extreme temperature damage while a heavy duty in-line maxi fuse for each motor provides professional circuit protection. Available as a vehicle mounted kit with associated wiring loom and mounting hardware.

THE COMPLETE SOLUTION

• Designed for inflating tyres and air locker activation when used in conjunction with optional accessories

• Suitable for many air tools when used in conjunction with a 4L air tank (optional with on-board models)

• 100% duty cycle

• Sealed for moisture and dust resistance

• Hard anodised cylinder bores for reduced friction

• Teflon impregnated carbon fibre piston seals for maximum trouble-free life

• Anodised mounting bracket dissipates heat

• Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads

• Over-pressure safety valve equipped

THE LEADER IN BRUSHED COMPRESSORS

Since 2009, ARB has offered a range of brushed compressors to suit every application. Our tried-and-tested ARB Brushed Compressor has led the way in compressor technology for years. Still at the forefront of the brushed market, it’s available in single and twin versions, as well as mounted and portable options.

For ARB Air Locker only applications, we also have the ARB Air Locker Activation System allowing the performance you need to run an Air Locker at a fraction of the footprint.

3 Years Warranty

ARB prides itself on creating the best products that offer quality, reliability and practicality above all else. Naturally all ARB products manufactured and distributed by us come with a three years nationwide warranty.

DEMANDING MORE ADVENTURES?

Go even further with our extensive range of compatible gears.

Air Compressors

ARB Air Compressors provide many advantages when exploring the great outdoors. At ARB, we design and manufacture a range of high output 4X4 air compressors built for long-term performance.

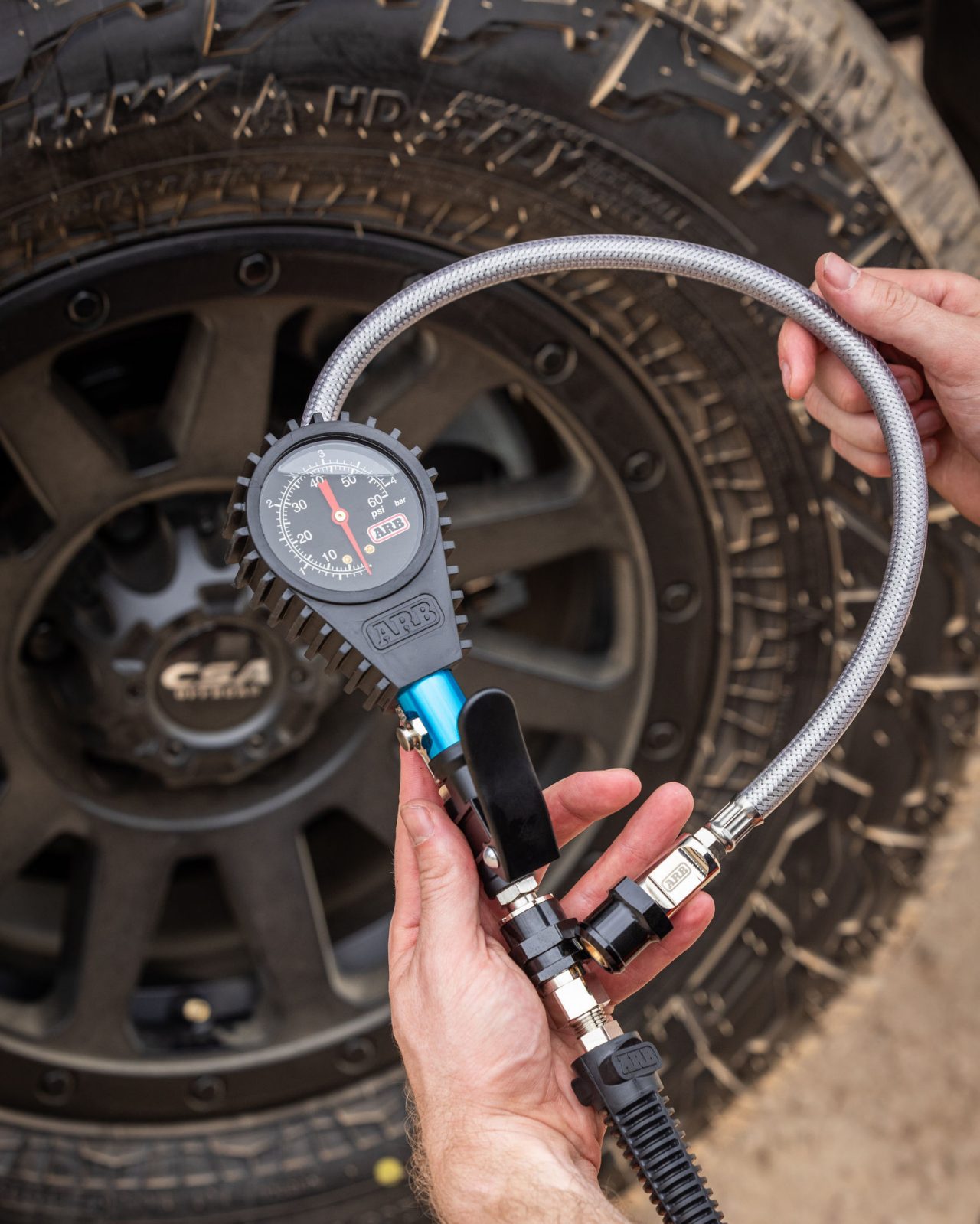

TYRE & COMPRESSOR ACCESSORIES

From inflation kits to pressure gauges, ARB’s tyre compressor accessories make on-the-go tyre management fast and accurate.

Air Locker

ARB Air Lockers are an Australian designed and manufactured selectable differential locker that can be activated at the flick of a switch at any speed.

LINX

LINX is a unique modern controller that declutters the dashboard and centralises the command of vehicle accessories.

Closer Look

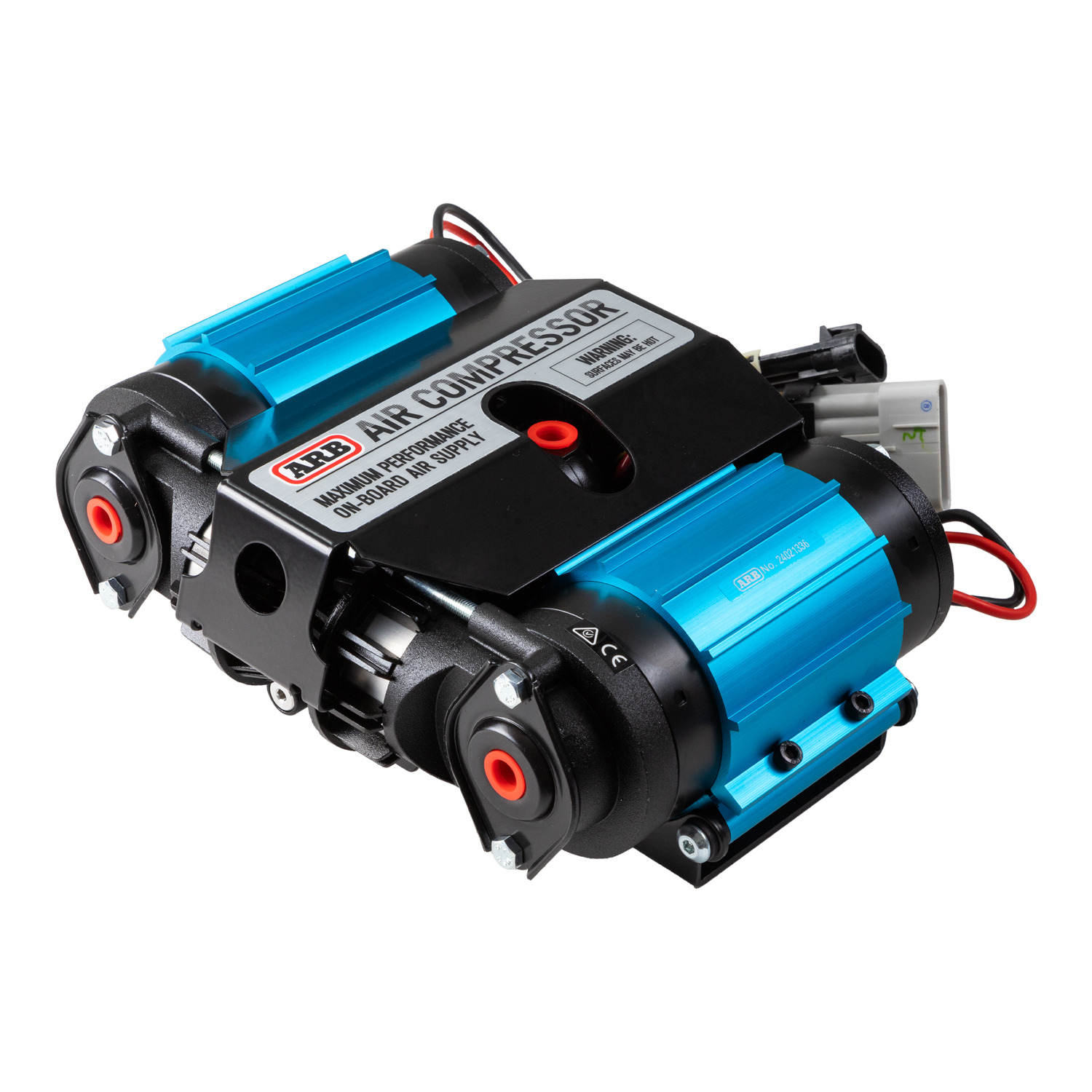

The ARB On-Board Air Compressor is the proven and trusted solution for a permanently mounted, reliable source of compressed air. This 12-volt brushed twin compressor is specifically engineered to provide an instant and dependable air supply for a comprehensive range of off-road functions, from actuating ARB Air Lockers to rapidly inflating large tyres and powering air tools.

As a class-leading twin compressor, it delivers maximum airflow with an impressive 100% duty cycle, ensuring consistent performance for even the most demanding tasks. With a volume flow of up to 174.4 litres per minute at 0 kPa and 131.8 litres per minute at 200 kPa, it provides the fastest tyre inflation available in the ARB range. Constructed from lightweight, high-strength materials and sealed against moisture and dust, this unit is designed to withstand the harsh conditions of under-bonnet or in-cabin mounting. It also features a pressure differential switch, integrated overheating protection, and a particulate filter for enhanced durability and reliability.

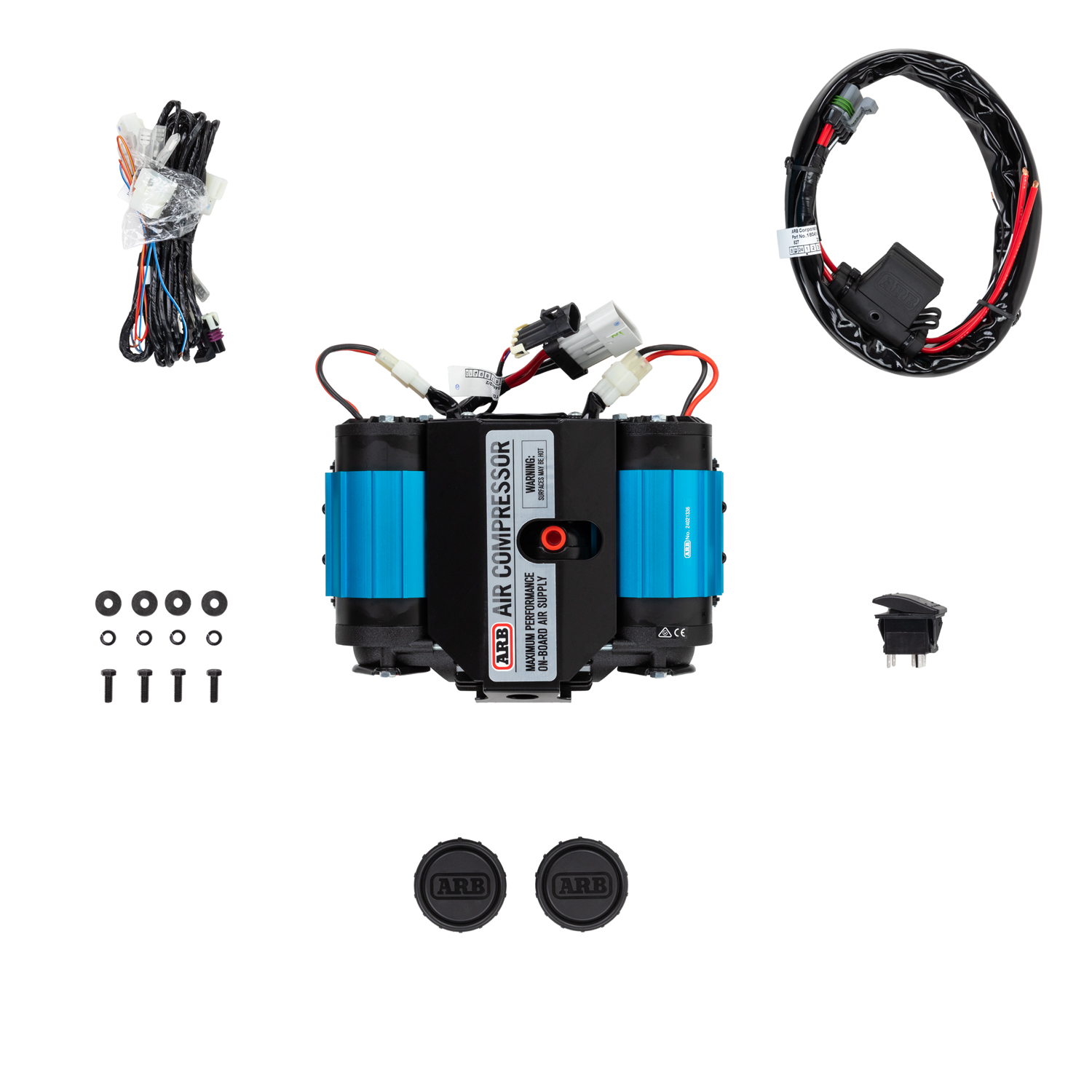

Each ARB On-Board Twin Air Compressor includes a full wiring loom and universal mounting hardware for a professional and reliable installation. With hard-anodised cylinder bores and Teflon-impregnated piston seals, every ARB compressor is built for quiet operation and a long, trouble-free service life, backed by a 3-year warranty, ensuring air is always on hand when you need it most for your off-road adventures.

Type Twin Compressor

Tyre Inflation Fastest

DC voltage [V] 12

Duty cycle to [%] 100

Pressure to [kPA] (a) 0

Current rating at 20-¦C [A] (a) 28.4

Volume Flow Up To [l,min] (a) 174.4

Pressure to [kPA] (b) 200

Current rating at 20-¦C [A] (b) 50.4

Volume Flow Up To [l,min] (b) 131.8

Switch with pressure differential switch

Overheating protection Yes
