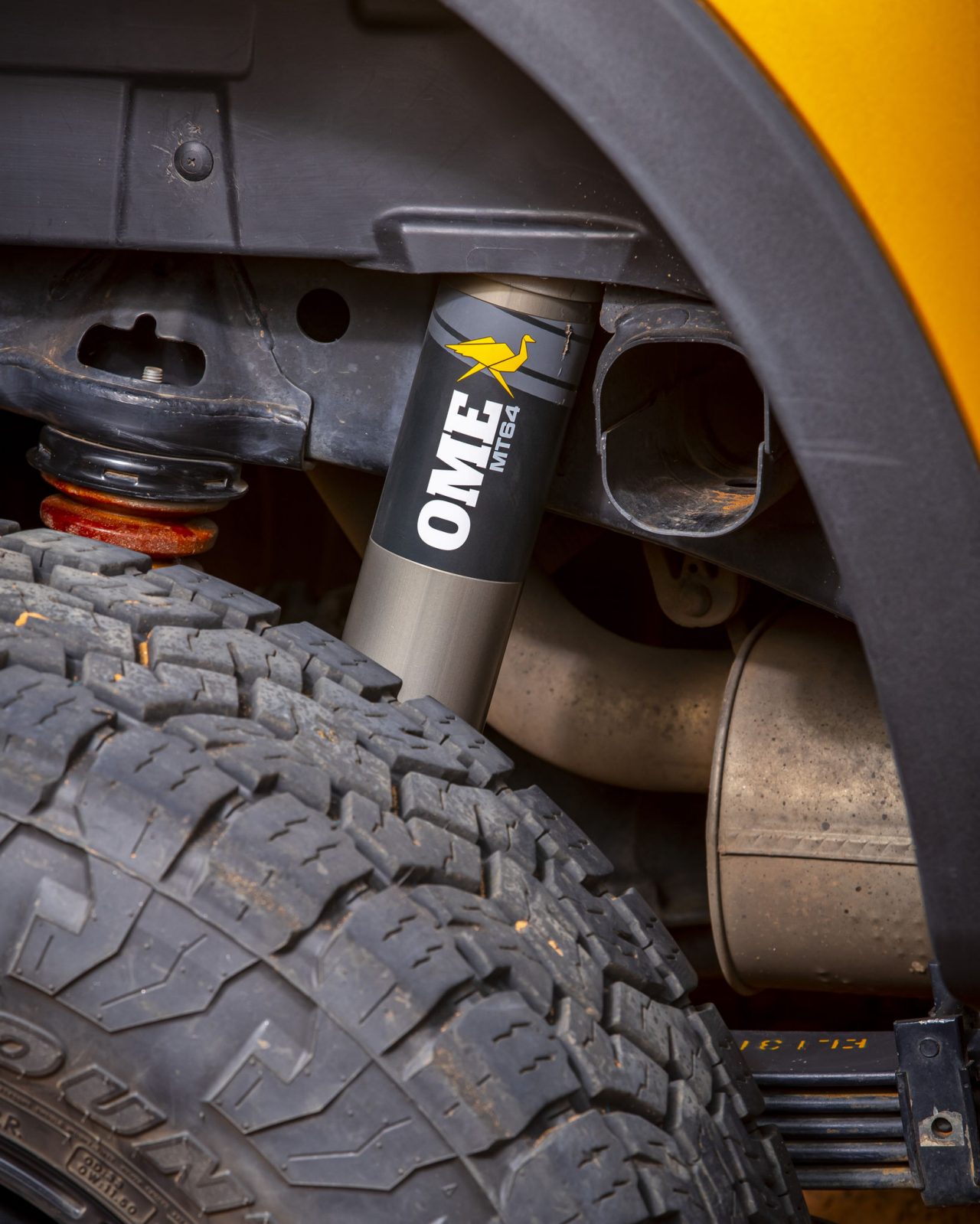

Old Man Emu MT64 Suspension Kit

Hotspot 1

Produced by ARB—ARB's uncompromising Old Man Emu suspension team has designed, engineered and manufactured the MT64, giving you confidence in the quality

Hotspot 2

Shaft guard—Replaceable, impact resistant, Polyester TPE (Thermoplastic Polyether Elastomer) shaft guard prevents damage to the shock absorber shaft from stones and other debris.

Hotspot 3

Piston rod—Equipped with a 22.5 mm (7/8 inch) piston rod (shaft), the hard chrome finished rod provides improved strength and exceptional stability

Hotspot 4

Durable construction—Utilising the same aerospace grade aluminium as our high performance BP-51 to dissipate heat effectively.

Hotspot 5

Quality finish—Covered with military spec hard anodised finish, the MT64 has superior corrosion resistance and can handle extreme temperatures.

Hotspot 6

Increased size—The sizable shape of MT64 makes it one of the biggest monotubes on the market, providing users with more of every aspect of the shock.

Hotspot 7

Refinement in ride—The huge 64 mm (2.5 inch) internal bore allows for more oil and bigger piston and shim stacks, to reduce heat providing more control through the stroke giving a more refined ride.

Hotspot 8

Warranty—MT64 comes with the backing of ARB’s global support network, including a 3-year unlimited kilometer warranty which ensures you’ll go further for longer.

Hotspot 9

Double bonded rubber bushes—Providing unrivalled Noise, Vibration, Harshness (NVH) compliance, the bushes limit feedback to the driver through the suspension components. The natural rubber bushes provide a noise-free cushioned ride due to the softer finish and its ability to absorb bumps on the road.

Hotspot 10

Forged endcap—The expertly forged 6061 aluminium bodycaps provide increased strength to this solid shock, and also assist in dissipating heat to improve performance.

Hotspot 11

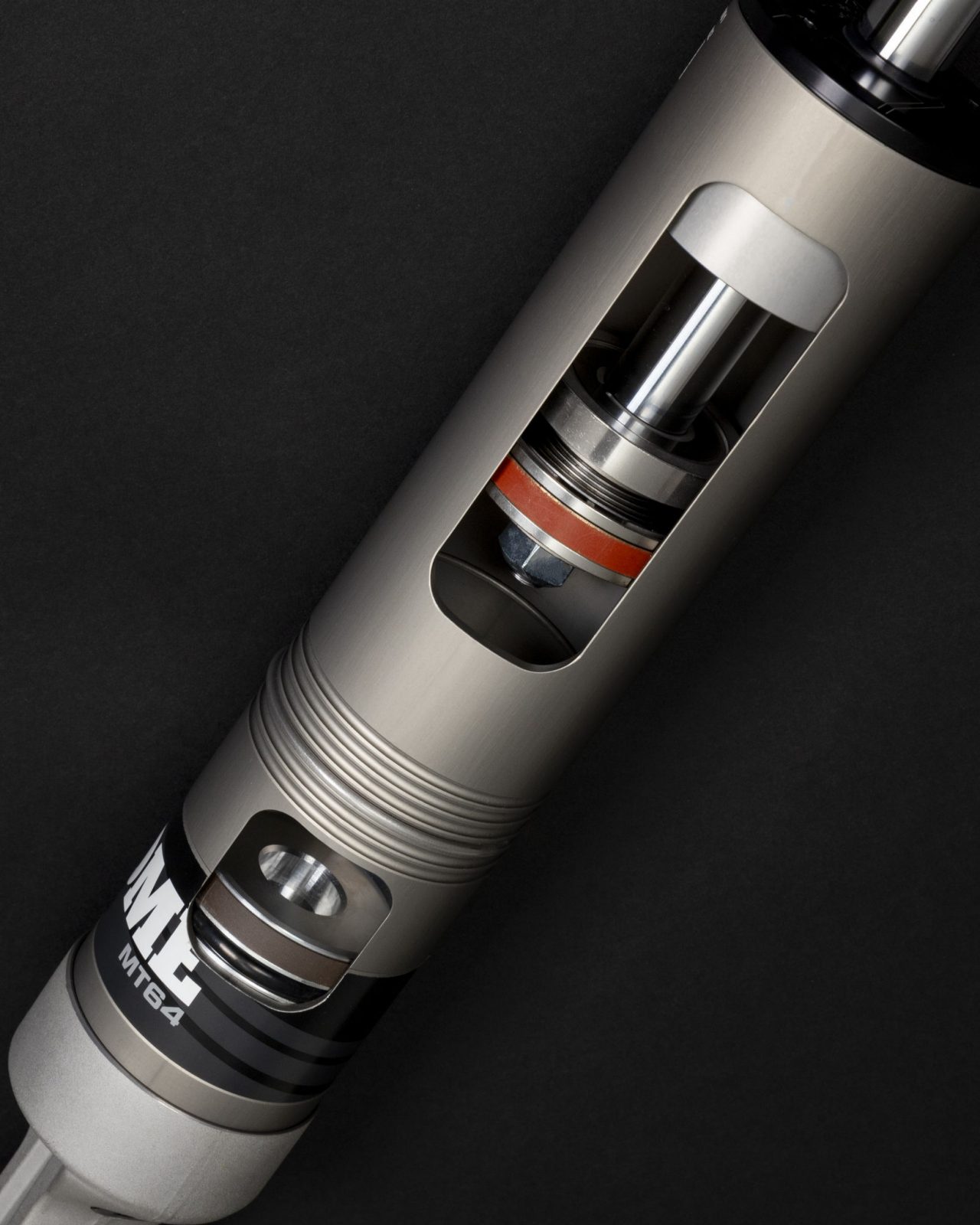

Internal floating piston—Added technology of an internal floating piston that works to separate the oil and nitrogen, giving the shock consistent performance over different terrains.

Hotspot 12

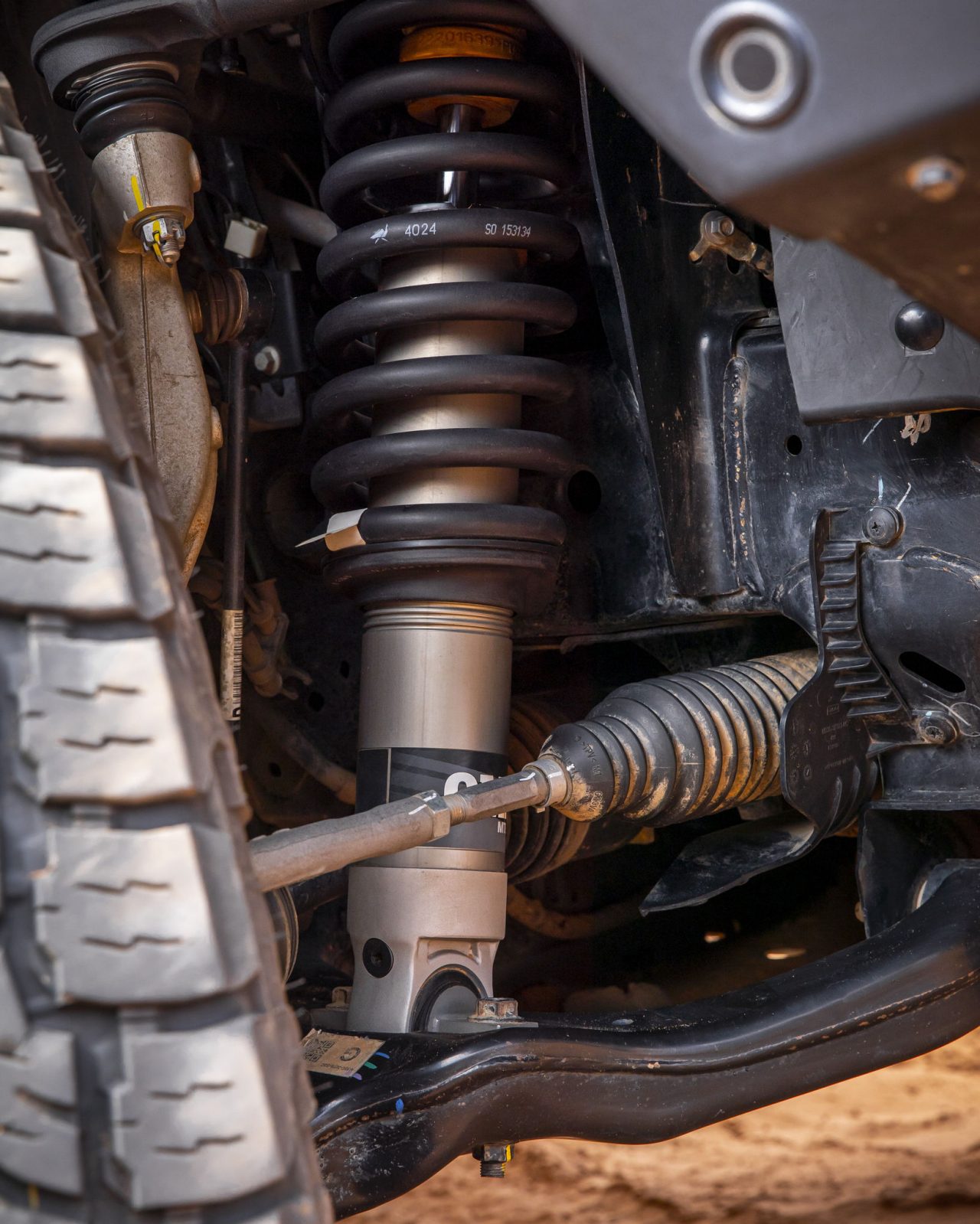

Configurable spring seat for different loads—Configurable spring seat with 6 positions in 5 mm increments, allows for one coil spring to cater for different weight variations.

Hotspot 13

Comprehensive comfort—In addition to plush everyday comfort, MT64 is also designed with a hydraulic end zone top out, which provides added padding at the shock’s full extension, to compensate for any unexpected bumps.

Hotspot 14

Multi-lip combo seal—Reinforced with a resilient multi-lip combo seal which is designed to handle high pressure and shaft speeds, whilst also being made from a material that will handle a high temperature range.

Hotspot 15

Protective bump cap—MT64 is sealed with a bump cap that utilises an integrated wiper seal, to guarantee the prevention of any dust, dirt and contaminant ingress.

Hotspot 16

Everyday improvement—Smooth, controlled ride for everyday and long-distance driving to reduce fatigue and general wear and tear on your vehicle’s components.
