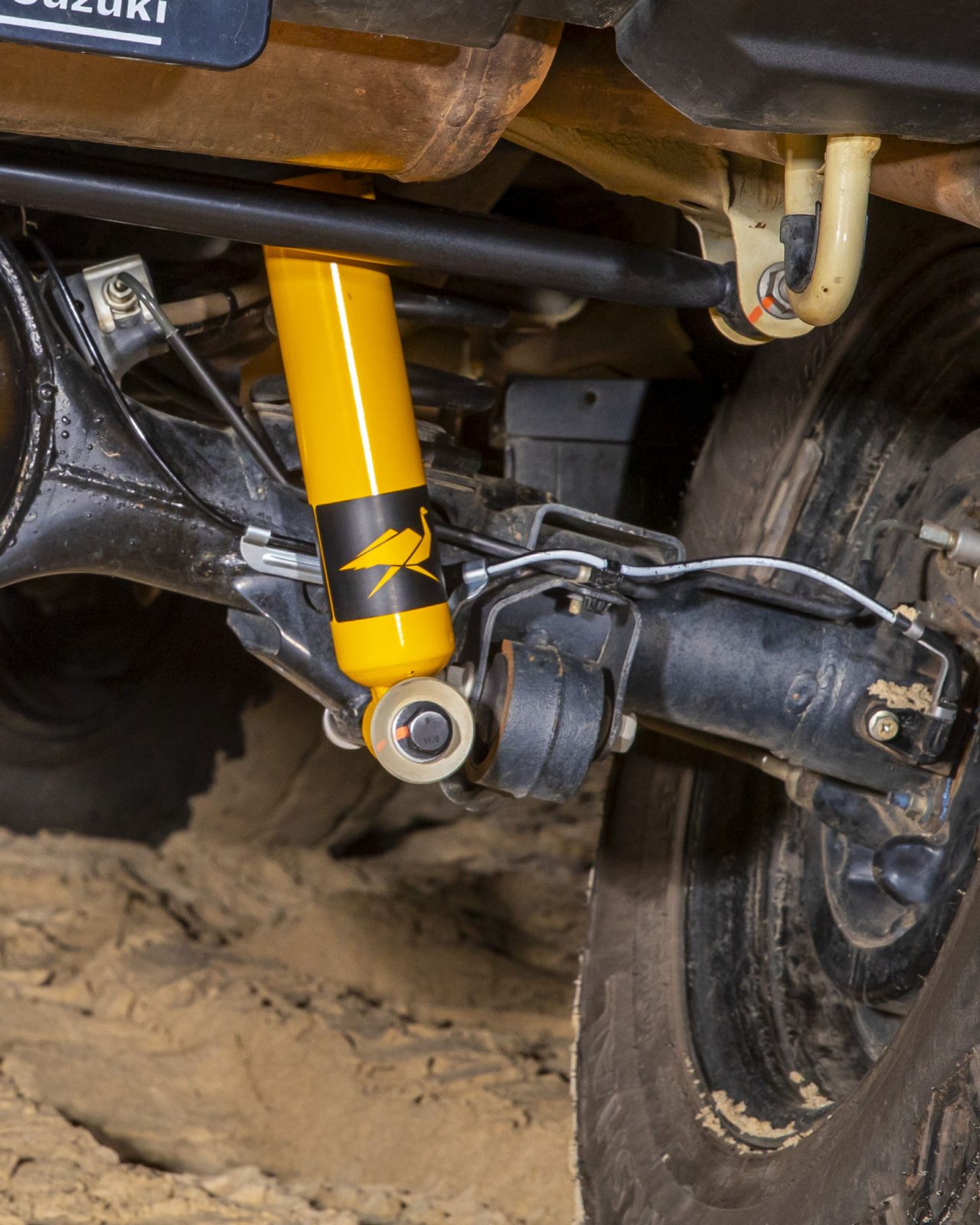

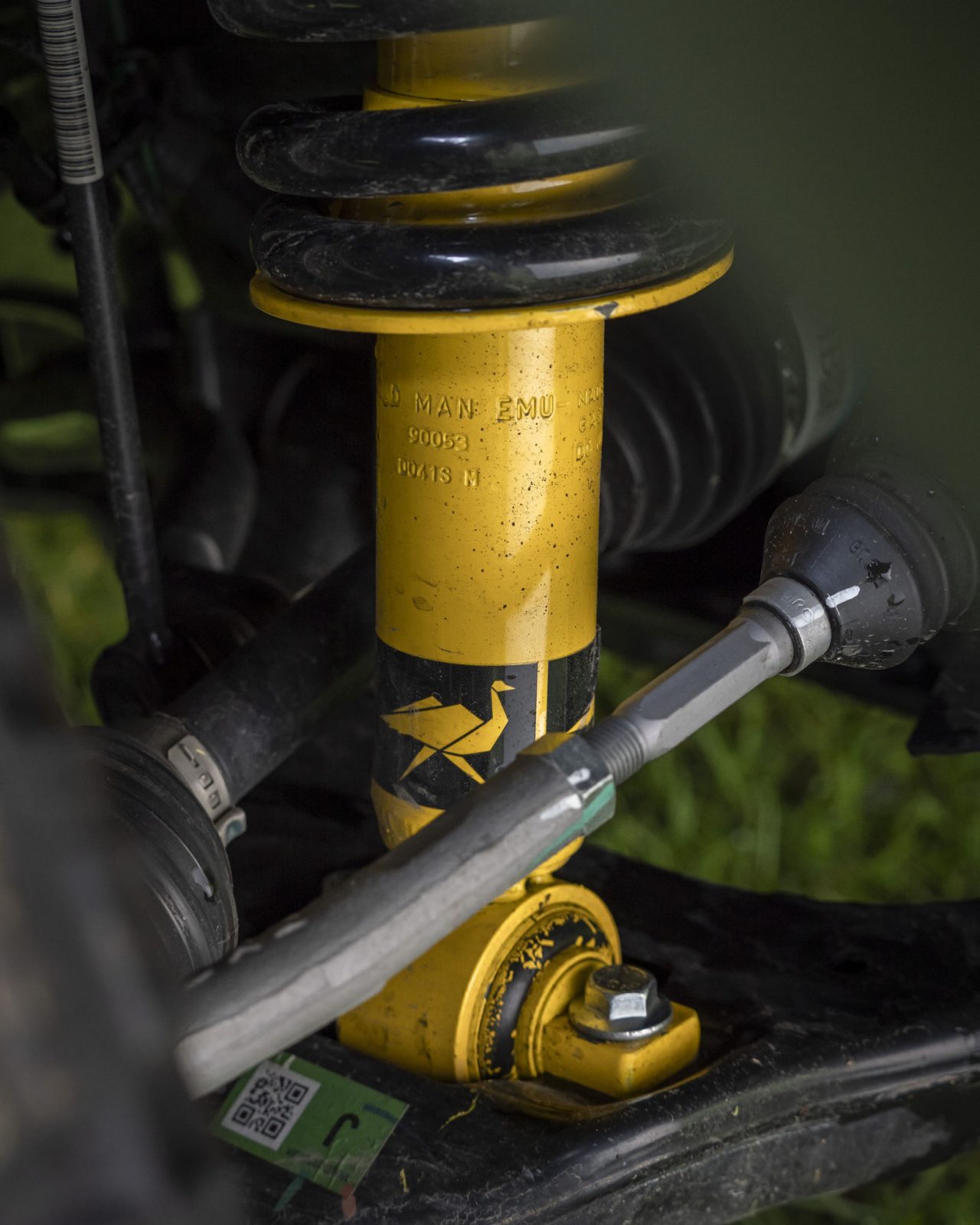

Old Man Emu Nitrocharger Suspension Kit

Hotspot 1

Vehicle specific bushes—High quality, vehicle specific bushes manufactured from polyurethane and rubber materials for extended life.

Hotspot 2

Dirt shield—Impact resistant, polyamide dirt shield provides additional protection from stone chips and off road debris.

Hotspot 3

Piston rod—Super strong 18mm induction hardened chrome piston rod is engineered to handle rigours of heavy loads and tough 4x4 touring.

Hotspot 4

Triple lip oil seal—Large, durable seal incorporates a gas retention check valve design to virtually eliminate contaminant damage while providing outstanding gas and oil retention.

Hotspot 5

Rod guide—Large, low friction Teflon impregnated bronze bushing for long lasting durability.

Hotspot 6

Slip ring—Teflon infused bronze slip ring ensures a more consistent and uniform damping performance by providing better control of oil flow between the rod and rod guide.

Hotspot 7

Nitrogen gas—Increases the temperature operating range and improves oil flow through the valving, ensuring optimum performance.

Hotspot 8

High flow piston—Free flowing design reduces aeration and high oil temperature, extending shock absorber performance under harsh conditions.

Hotspot 9

Dual-stack deflective disc technology—Durable rebound and compression multi deflective disc stacking on either side of the free flowing piston allows infinite tuning options.

Hotspot 10

High quality oil—Petroleum based, high performance formula designed to resist fade and aeration for improved durability and shock absorber performance.

Hotspot 11

Heavy gauge reserve tube—Heavy gauge (1.6 mm) steel reserve tube is 23% more effective than common 1.3mm wall tubing to protect internal components from stone damage.

Hotspot 12

Multi-disc compression valving—Six valving discs allow greater valving options for maximum ride and handling performance.
