Delivery Available

*Whilst we make continuous effort to ensure accuracy with the product photo or vehicle shown, please consult an ARB expert if you are unsure if this product is right for you.

PRODUCT CODE: W110012

WARN Zeon XD Winch 12,000lb with Synthetic Spydura Pro Rope

Extreme Durability and Blazing-Fast Speed

Sold as a Single item

Set Location

Select Fitment Option

Professionally Installed by ARB + $200.00 AUD Deliver Direct or Click & Collect

Zip Pay Available. Learn More

WARN Zeon XD Winch 12,000lb with Synthetic Spydura Pro Rope

WARN ZEON WINCHES

Engineered from the ground up, the ZEON winch range sets a new standard in Warn’s premium winch range. Smoother, quieter, stronger and better sealed with an IP68 rating makes this range ready for serious action.

A convertible control pack provides plenty of flexibility by allowing the pack to be removed and mounted separately from the winch. Not only does this allow the winch to be mounted in tight spaces, it also provides the option of a more low profile look.

The ZEON winch range also includes a limited lifetime warranty.

FEATURES

Hotspot 1

Mounting options—Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.

Hotspot 2

Unique exterior—Unique exterior incorporates dust and water rating to IP68 to keep the elements out.

Hotspot 3

Winch drum—Lightweight, large diameter winch drum reduces rope wear, and has an integrated rope anchor for easy rope installation.

Hotspot 4

Pulling capability—Available with steel or Warn Spydura synthetic rope, the Zeon Platinum offers pulling capacities from 10,000lbs to 12,000lbs.

Hotspot 5

Durable finish—Satin black powder coated finish with stainless steel fasteners and clutch lever to inhibit corrosion.

Hotspot 6

Motor—New design planetary gear train and series wound motor delivers fast, quiet and reliable pulling power.

THE WARN DIFFERENCE

Designed to perform in the most strenuous conditions imaginable, Warn has demonstrated constant innovation throughout their history, investing heavily in state of the art testing equipment to ensure their products perform brilliantly, irrespective of the environmental conditions.

ARB's vehicle specific winch bull bars were designed to accommodate a range of Warn winches and have been tested to ensure they withstand loads placed on them far greater than the rating of the winch.

THE RANGE

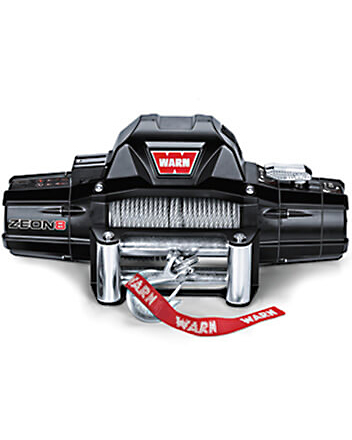

ZEON 8

With features like a heat dissipating brake and smooth planetary gear train, the ZEON 8 winch is much more than a pretty face, it’s built to last. Along with an integrated look and sleek design, this winch hails a new motor, faster line speed and IP68 rating that is sure to satisfy the serious 4wder.

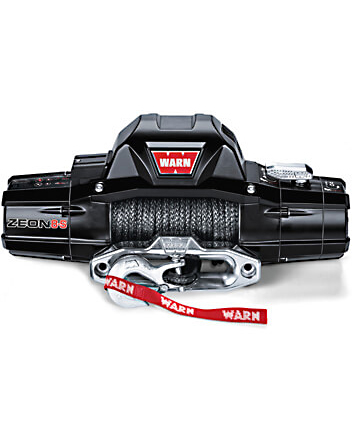

ZEON 8-S

The ZEON 8-S combines all of the aesthetic and exceptional design features of the ZEON 8 winch with the inclusion of Warn Spydura synthetic rope. The Warn Spydura synthetic rope has a temperature resistant first layer, an abrasion resistant and ballistic nylon sliding sleeve, and a polished hawse fairlead that is just waiting to be tested out on your next adventure.

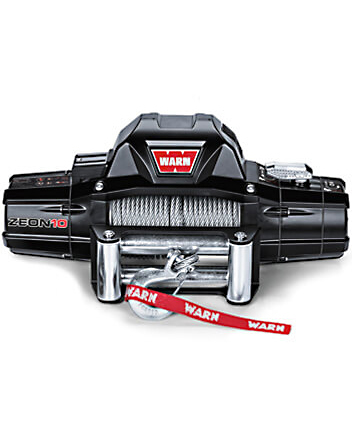

ZEON 10

It might have a stylish new design but do not be fooled, the ZEON 10 winch is built to last. With features such as a heat dissipating brake, smooth planetary gear train, integrated look, new motor, fast line speed and IP68 rating, the ZEON range is full of features that are sure to satisfy the serious 4wder.

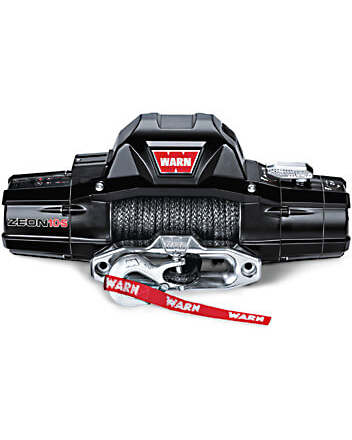

ZEON 10-S

The ZEON 10-S combines all of the aesthetic and exceptional design features of the ZEON 10 winch with the inclusion of Warn’s lightweight Spydura synthetic rope. Though lightweight, there is nothing flimsy about the Warn Spydura synthetic rope and its temperature resistant first layer, abrasion resistant and ballistic nylon sliding sleeve and polished hawse fairlead.

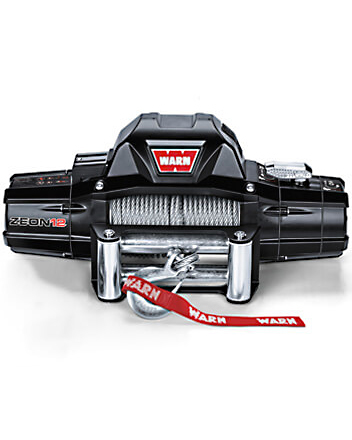

ZEON 12

The ZEON 12 winch will be there to pull you through the toughest recovery, time and time again. This winch hails a new motor, heat dissipating brake, smooth planetary gear train, faster line speed and IP68 rating that is sure to impress.

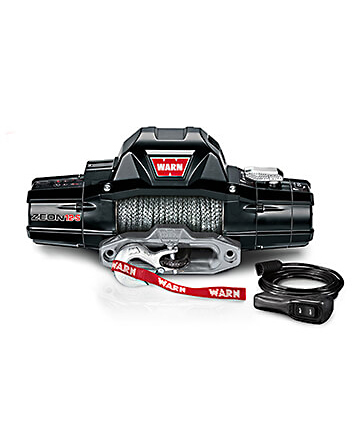

ZEON 12-S

The ZEON 12-S winch will be there to pull you through the toughest recovery, time and time again. This winch hails a new motor, heat dissipating brake, smooth planetary gear train, faster line speed and IP68 rating that is sure to impress.

DEMANDING MORE ADVENTURES?

Go even further with our extensive range of compatible gears.

Bull Bars

ARB Bull Bars will provide substantially improved protection for vulnerable mechanical components against animal strikes.

SUSPENSION

Old Man Emu produces suspension to suit you, no matter your lifestyle.

Recovery Equipment

ARB’s vehicle recovery accessories are engineered and manufactured to the highest standards, making them ideal for recreational use as well as competition.

VEHICLE LIGHTING

ARB offers one of Australia’s most extensive selections of high-quality vehicle lighting.

Closer Look

The WARN ZEON XD is a premium performance winch engineered to deliver blazing-fast line speed and extreme durability for the most demanding recoveries. It builds upon the advanced ZEON platform with a high-performance motor and geartrain, making it the choice for users who need to get the job done quickly and reliably.

The defining feature of the ZEON XD is its incredible no-load line speed, one of the fastest in its class, allowing for rapid rope retrieval and setup. This performance is backed by best-in-class IP68K and IP69K sealing, providing the ultimate protection against high-pressure water spray and submersion.

Made in the USA, the ZEON XD features robust all-metal armour, superior corrosion resistance, and an Albright contactor for ultimate electrical reliability. It also includes a WARN HUB Receiver, allowing for wireless control and real-time information feedback via the WARN smartphone app.

DC voltage [V] 12

max. load [kg] 5443

Rated current [A] 466

Gear Ratio 176:1

Product Feature (a) Wireless/Rechargeable winch remote

Distance of mounting bores 1 [mm] 254

Distance of mounting bores 2 [mm] 114.3

Protection Type (IP Code) IP68

Specification (a) Winch Rope

Cable Length [m] (a) 24.38

Cable Diameter [mm] 9.52

Material Synthetic

Supplementary Article,Supplementary Info with sleeve

Drum diameter [mm] 80

Specification (b) Electrical cable

Cable Length [m] (b) 3.7

Specification (c) Fairlead

Product Feature (b) Hawse Fairlead - Aluminium

Capacity at 12V 12,000 lb

Cable ID Synthetic Rope
