Discover OME Spring Selection



Old Man Emu Springs

When undertaking remote area travel, the need to carry sufficient fuel, water, vehicle spares and safety equipment invariably means that your 4WD will be fully loaded, placing a lot of strain on suspension components. Combine this with punishing off road conditions, and the limitations of standard springs soon become apparent.

Whether it’s coils, leaves or torsion bars, Old Man Emu springs are designed to improve the load carrying capability of your 4WD, allowing you to tackle more challenging terrain with confidence.

Learn more about Old Man Emu spring development in the video.

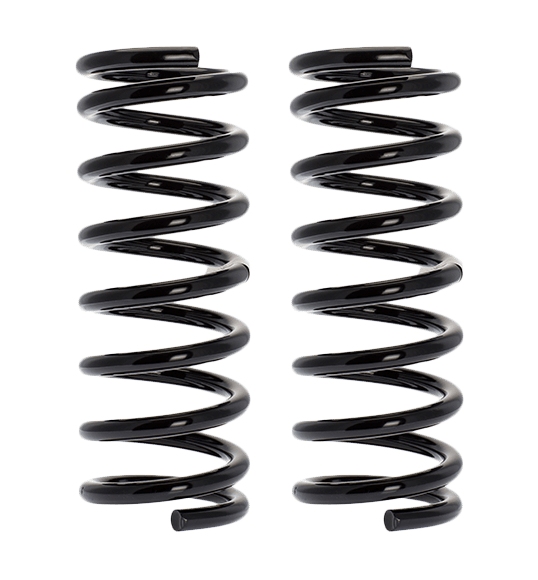

Coil Springs

ARB designs an extensive range of Old Man Emu coil springs for each vehicle, using state of the art micro-alloyed spring steel to ensure superior resistance to sagging and corrosion. With such a wide range on offer, coil springs can be better matched to your specific load requirements and intended vehicle usage.

While ride height increases are attained, a great emphasis is placed on ride control improvements. Further fine tuning is achieved when the springs are matched to a corresponding set of Old Man Emu shock absorbers, delivering a fully integrated system designed specifically to suit your vehicle.

Coil Springs
View Coil Spring Features

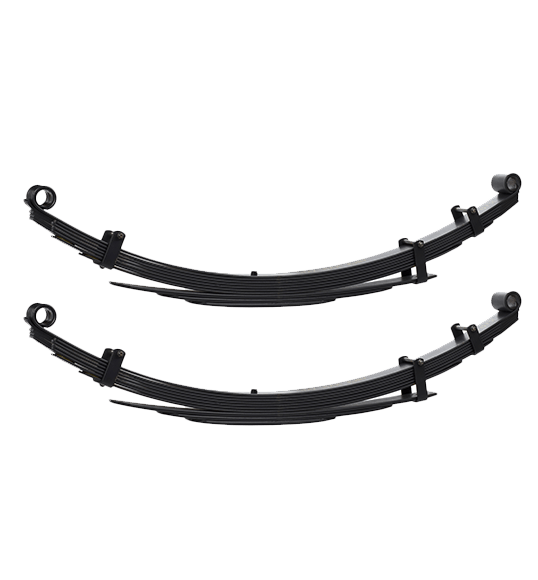

Leaf Springs

Old Man Emu leaf springs are engineered to provide optimum ride performance irrespective of the conditions in which they operate.

Numerous spring options are available to suit each user’s specific needs, allowing you to set your vehicle up for recreational or commercial purposes. A set of Old Man Emu leaf springs, matched to a set of Old Man Emu 4×4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.

Leaf Springs
View Leaf Spring Features

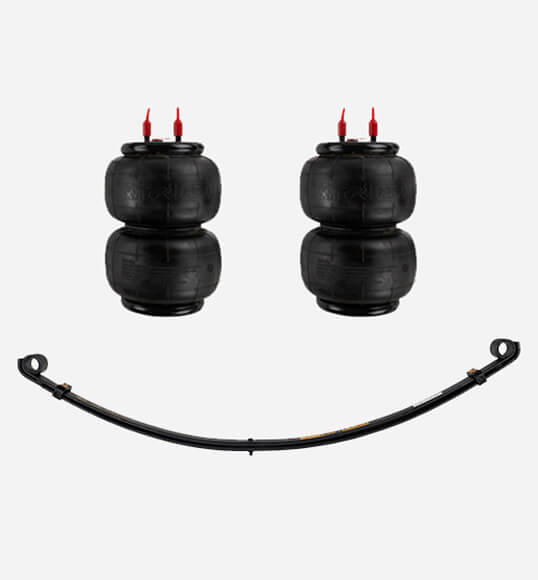

Parabolic Leaf Springs and ARB Air Bag Kit

The Old Man Emu team were tasked to re-imagine the leaf spring design and to maximise comfort of a leaf sprung ute while safely allowing the driver to adapt to varying weight conditions without compromise. Traditionally, you were forced to chose one or the other but now with our Parabolic & Air Bag System, you can have both!

Parabolic Leaf Springs with an Air Bag Kit gives you the flexibility to cater for varying load of up to 600kg. Therefore, whether it is tools during the week or a rooftop tent on the weekend; Old Man Emu’s Parabolic Leaf Springs and Air Bag Kit system has you covered and provides the new standard in comfort and weight carrying adjustability.

Taking the proven concept of a Parabolic Leaf Spring, Old Man Emu have reimagined the design alongside the development of a new market leader Air Bag Kit. We are proud to deliver a truly engineered and integrated Parabolic Leaf Spring and Air Bag System that is both purposeful and safe for the vehicle.

An Old Man Emu Air Bag Kit must be purchased with the Parabolic Leaf Springs.

Parabolic Leaf Springs and ARB Air Bag Kit
View Parabolic Leaf Spring Features

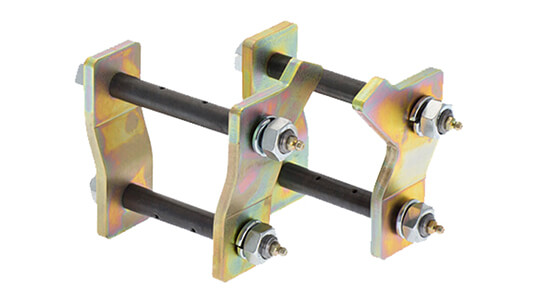

Greasable Shackles

Should your Old Man Emu 4WD suspension system include leaf springs, Old Man Emu urethane bushes require periodic lubrication to ensure longevity.

Old Man Emu greasable shackles and pins facilitate this without the need to remove the shackles, greatly reducing the time and effort involved.

View Greasable Shackle Features

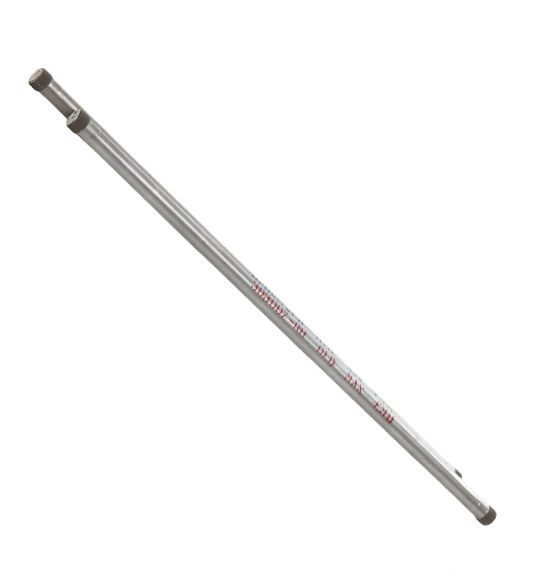

Torsion Bars

Old Man Emu Torsion Bars dramatically improve your vehicle’s ride and handling, both on road and off.

Designed and set for optimum ride performance with increased spring rates to suit accessory fitment, Old Man Emu Torsion Bars work best when Old Man Emu coil or leaf springs are fitted to the rear of your vehicle, with bars and springs then carefully matched to our range of 4WD shock absorbers. Together, they’ll transform your vehicle’s suspension performance.

Torsion Bars
View Torsion Bar Features

How do I decide which spring to choose?

  • Shock absorbers and springs - what do they do?

    Put simply, your vehicle’s springs hold the vehicle weight and set its ride height, while the shock absorber controls the motion of the spring during compression and rebound; keeping the tyres planted firmly on the road. Both components are designed to work together, so the changing of a spring’s specification should also require the changing of the shock absorber that controls it.

    For example:
    Increasing the spring rate so that it is capable of carrying more load will require the shock absorber to be valved so that it can handle the increased forces of the rebounding spring whilst also providing controlled compression. Increasing a spring’s length for greater ride height will require lengthening of the shock absorber body and possibly lengthening its range of travel in order to prevent the topping or bottoming of the shock absorber.

  • Deciding what rating springs to put your 4WD

    Old Man Emu’s Design Engineers have spent countless hours testing and developing spring and shock absorber combinations to best suit a range of accessories and loads that our customers are likely to fit to their vehicles.

    Our sales team is trained in selecting the best options based on your individual requirements, however as a starting point the Old Man Emu suspension selector is an easy way to get started. Selections are based on the amount of additional weight added to the vehicle with the front suspension selector including allowances for different bull bar and winch combinations whilst rear selection includes options for constant loads. It is important not to underestimate the loads of both accessories and payload as this can result in choosing the wrong components for your vehicle’s needs.

    TRY THE SUSPENSION SELECTOR

Ask about a quote

With dozens of ARB stores and stockists around Australia, it’s easy to get a quote on a personalised Old Man Emu suspension system for your 4WD.

To get started with lifting your rig and improving ride quality and handling, give your local store a call today to know about the prices of different suspensions and more.
