Modular Roller Drawer Systems

Completely modular, the range of drawer systems can be individually tailored to your needs and vehicle. Exclusive to ARB and suitable for many vehicles including wagons, utes (including extra cab), and trailers, this system can be used in non-vehicle applications such as sheds and warehouses.

Three heights of modules are available, in a range of sizes, resulting in more than 200 possible configurations, all backed by a two year warranty.

ARB Roller Drawers, Cargo Barriers, Child Restraint Anchorages are crash-tested and compliant to ADR (safety requirements) AS/NZS (Partial Cargo Barriers) ADR (Seats and Seat Anchorages) ADR (Child Restraint Anchorages).

Modular Roller Drawer Systems
Show Key Features

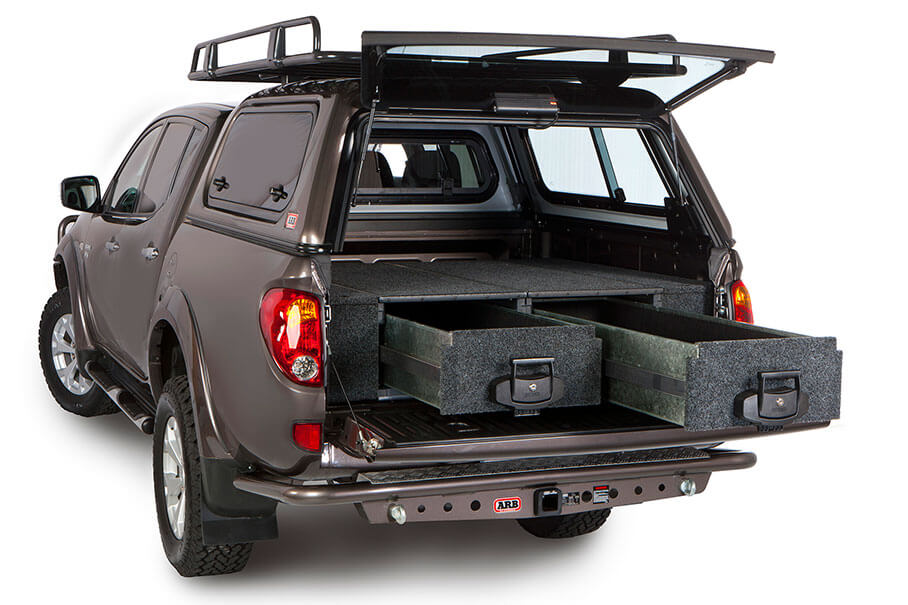

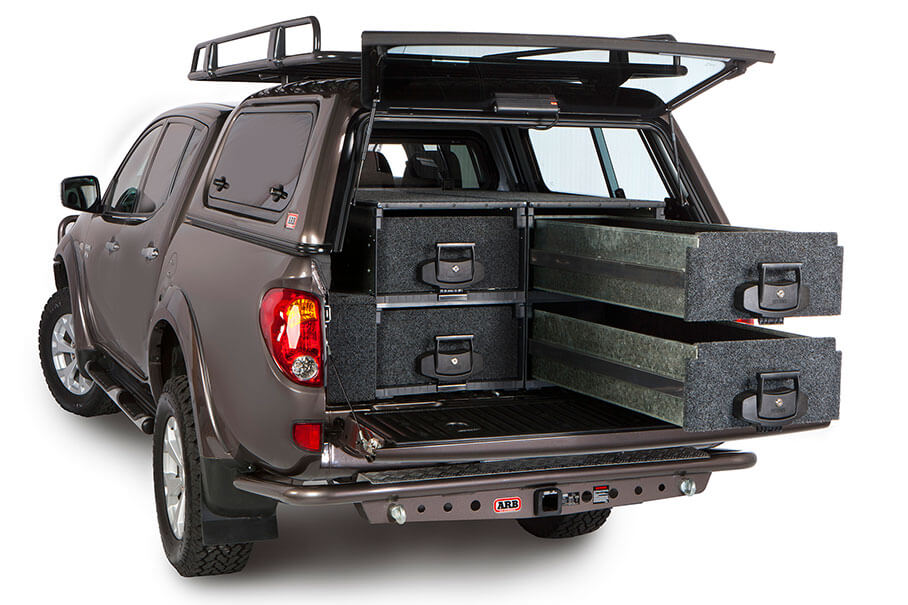

FULL-HEIGHT ROLLER DRAWER (RD)

FULL-HEIGHT ROLLER DRAWER (RD)

For convenient storage of items such as recovery equipment and clothing, the traditional style roll out drawer comes with a fixed top. This allows for additional modules to be stacked on top, or provides a flat surface for storing other, larger items.

ROLLER DRAWER WITH ROLLER FLOOR (RDRF)

ROLLER DRAWER WITH ROLLER FLOOR (RDRF)

The traditional style roll out drawer with a rolling top gives you plenty of storage space and allows a fridge freezer to be easily mounted on top, enabling it to be rolled in and out as required. Available in three sizes and unlike other products on the market, this module utilizes a true flat floor.

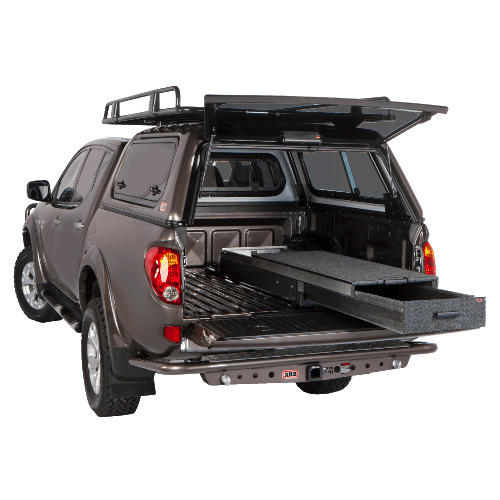

MID-HEIGHT ROLLER FLOOR (RFH)

MID-HEIGHT ROLLER FLOOR (RFH)

The mid-height roller floor drawer features all of the strength related characteristics of our full-height models and are compatible with a range of accessories including cargo barriers, tie-down points and air systems mounts.

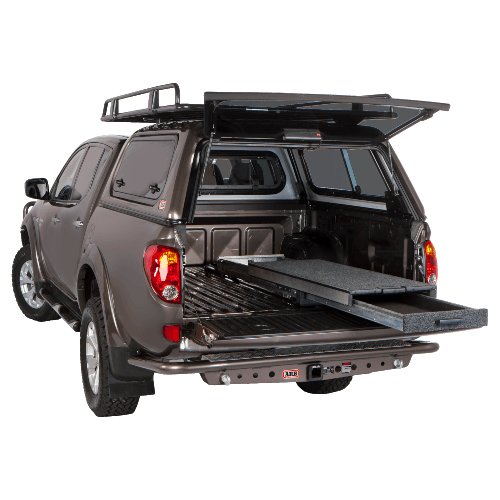

LOW-HEIGHT ROLLER FLOOR (RF)

LOW-HEIGHT ROLLER FLOOR (RF)

For convenient access to your car fridge, the low level roller floor sits only 140mm above the floor of your vehicle. Available in three sizes, it incorporates a storage tray underneath for smaller items, and like the larger drawers, utilizes a flat floor for easy placement of other items when not carrying a fridge.

View Internal Dimensions
View External Dimensions

ARB Roller Drawer Table

Have you ever tried to take multiple items out of your ARB fridge but had nowhere to place them? Have you ever tried finding a clean bench space to cut up lunch? It was out of these needs where the invention of a slide out stainless steel table was born. Completely designed and manufactured in Australia, the ARB Roller Draw table provides simple convenience for touring or worksite applications.

Utilising quality materials and finished in a 304 grade brushed stainless steel finish, the ARB Roller Drawer Table provides a hygienic surface for a vast array of touring or worksite needs, such as food preparation, or additional bench space.

The stainless steel sliding table attaches to the top of the ARB Outback Solutions roller drawer, and can be deployed when the drawer is in either the open or closed position.

Available in two different widths, to suit the ARB 1355/945 model and ARB 1045 model drawers. These unique products are compatible with our whole range of roller drawers, fitting models from 2010 – on manufacture date.

Read More

ARB Cable Guide

Are your fridge or battery cables untidy, interrupting the sliding motion of the fridge roller, or getting caught up in cargo while you’re on the move?

With the ARB Cable Guide accessory, you’ll be able to declutter, protect and complete your unique drawer set-up by providing a safe and enclosed track for your cables! Available in a 1m length that can be shortened to accommodate your fridge size, drawer length and drawer set-up, this handy accessory can also be run under the floors or power outlets added to the side floors to give a more seamless finish.

Suitable for use with most automotive cables and ARB roller floors, the ARB Cable Guide includes an S bracket to suit RDRF applications and a flat bracket for RF/RFH modules with RFFKADP adaptors.



Dimensions

  • Length: 1,000mm (39.37″)
  • Inner size: 10mm (0.39″) x 11mm (0.43″)
  • Outer size: 14mm (0.55″) x 17.5mm (0.68″)

Features

  • Suitable for most fridge 12V power cables and automotive cables
  • Steel brackets with hardware finished in black powder coat
  • 1000mm length suitable for all ARB drawer systems
  • Length can be adjusted to suit drawer travel



View features & specifications
