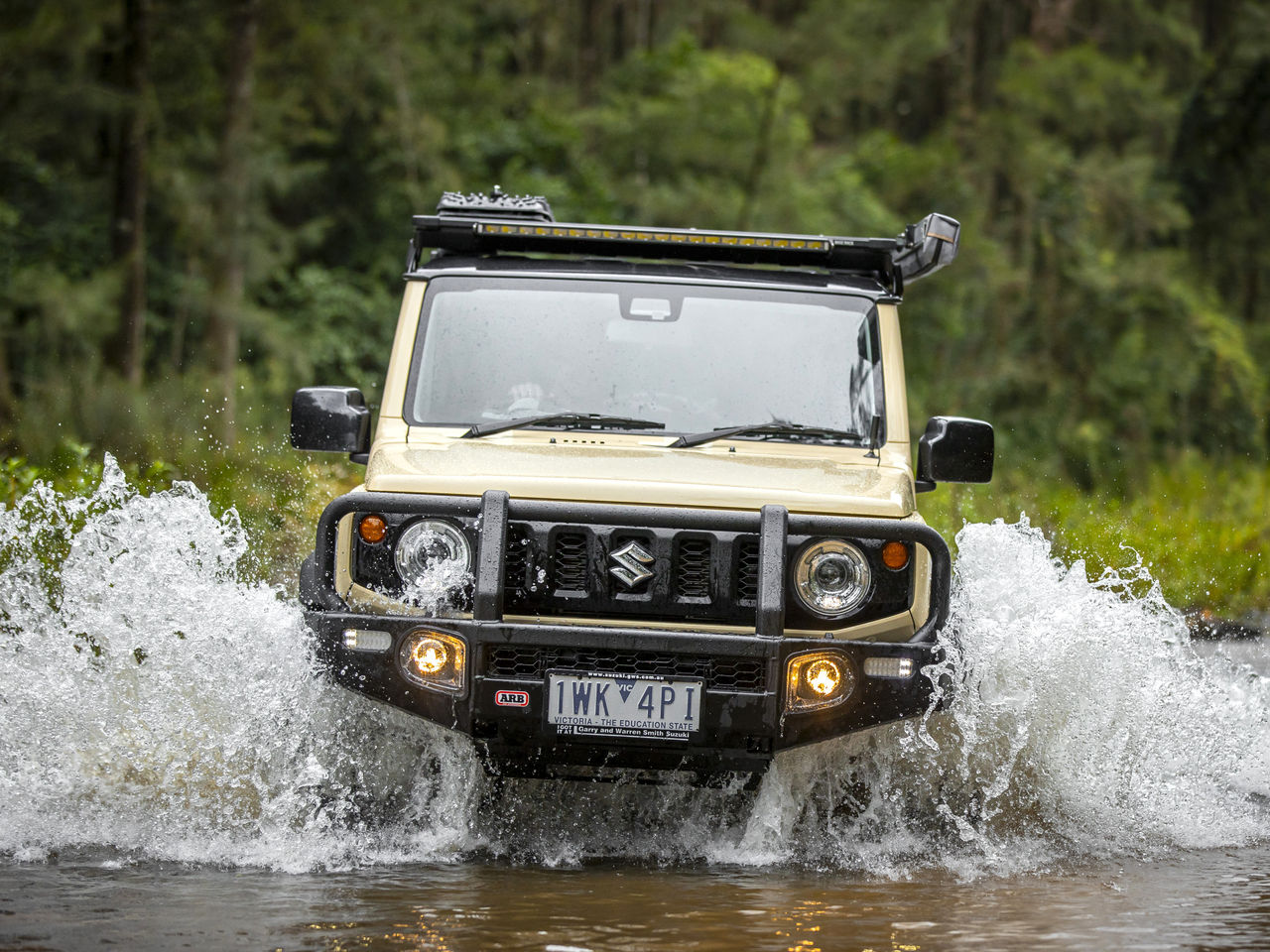

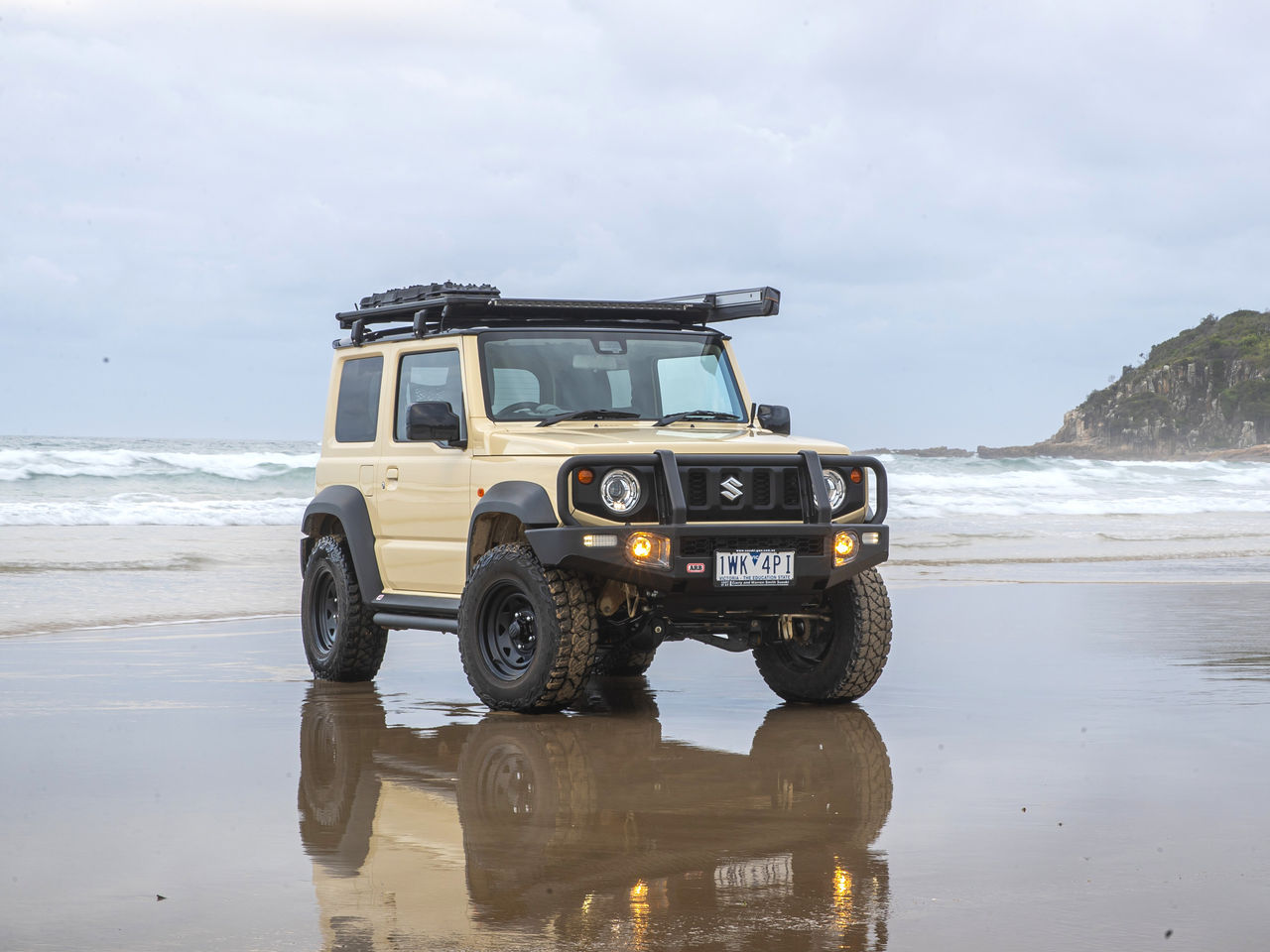

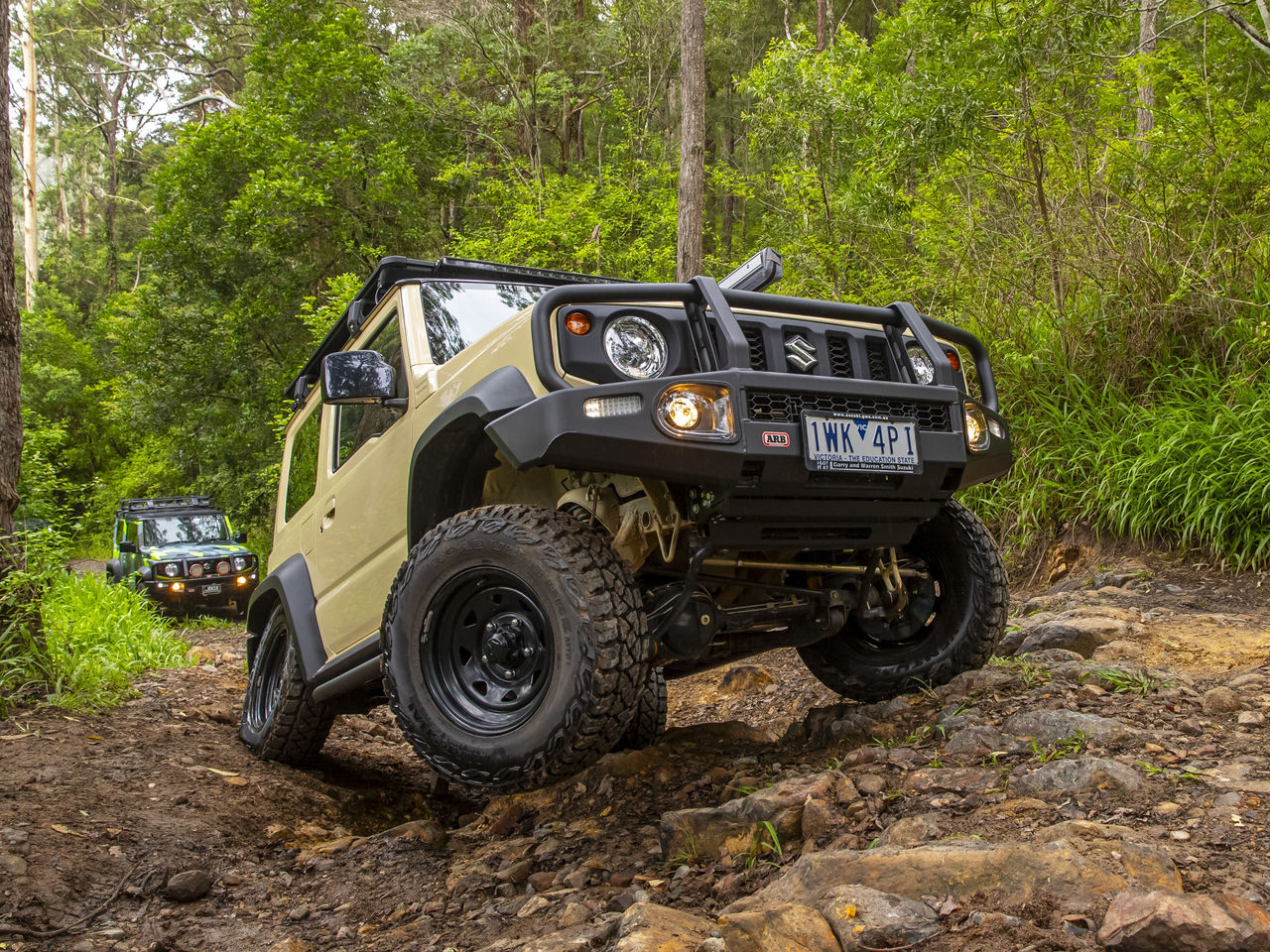

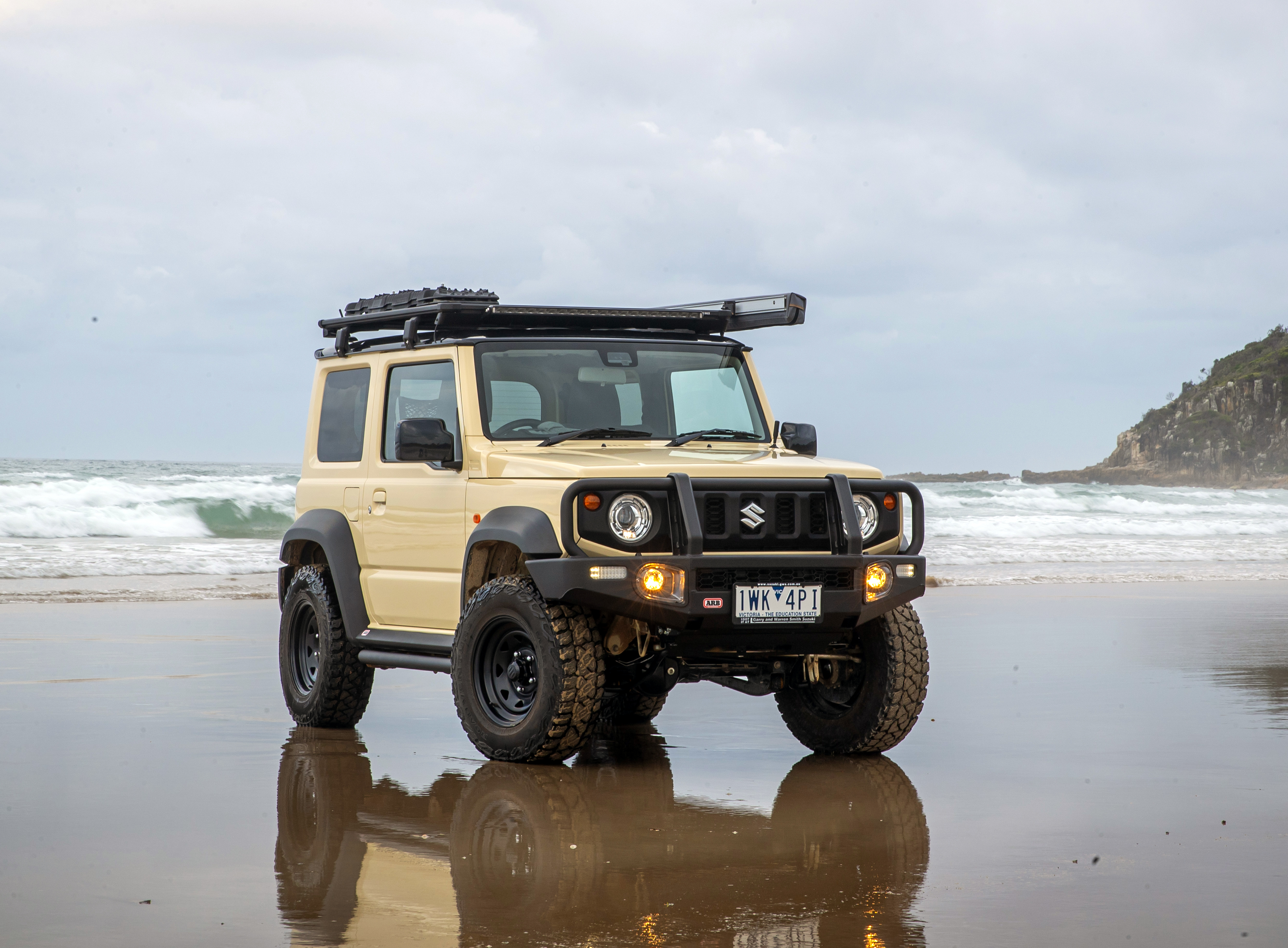

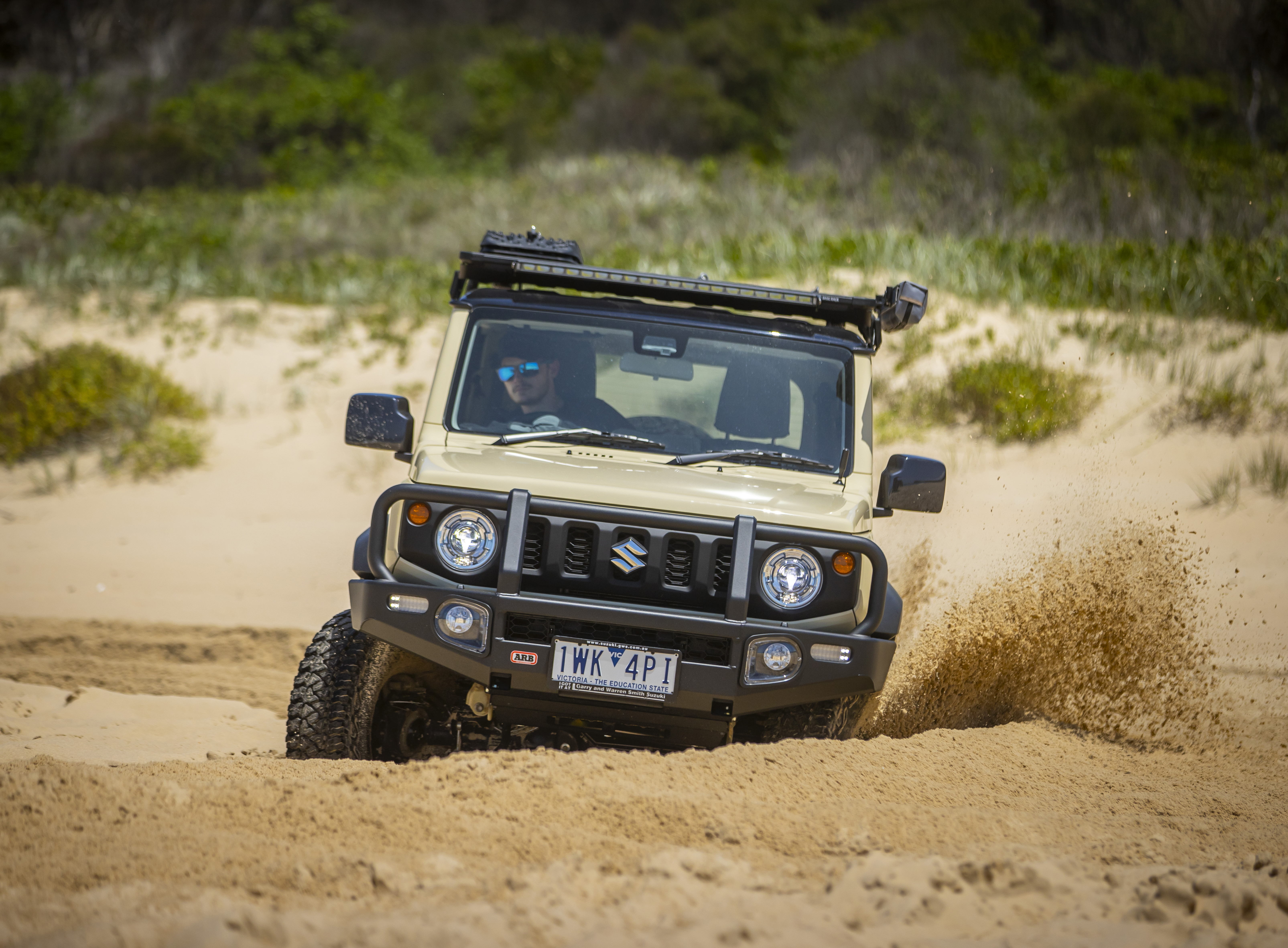

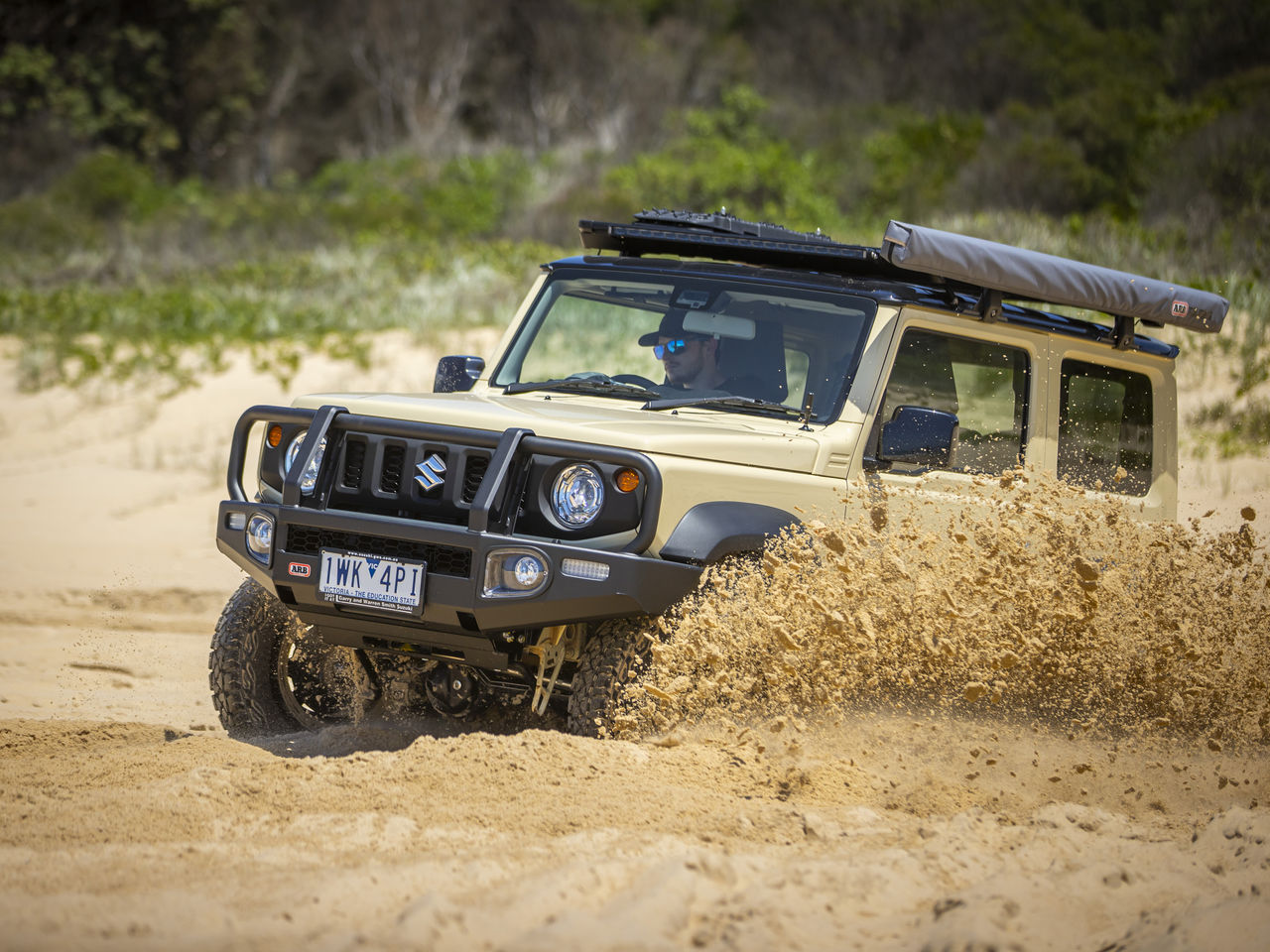

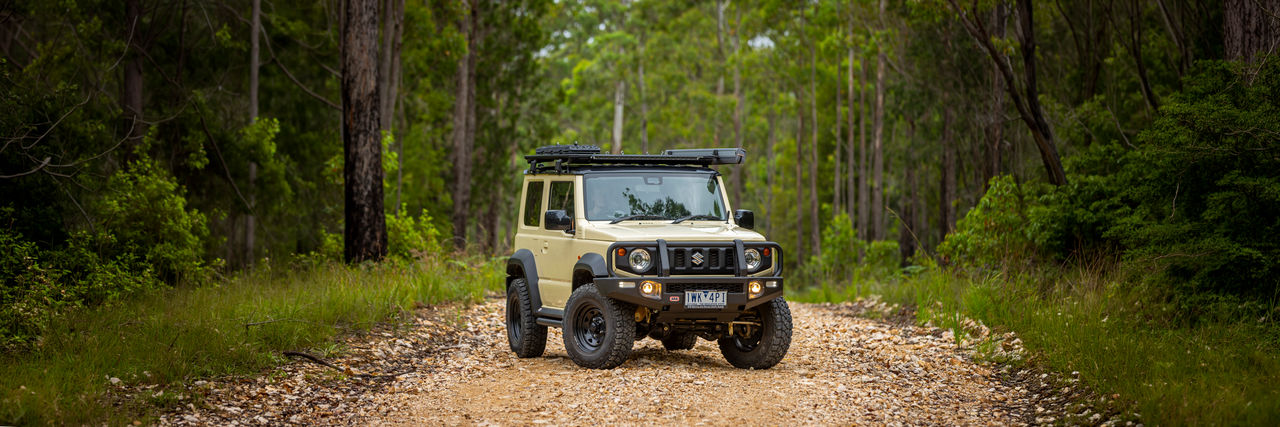

ARB Summit Bull Bar with Textured Finish - Suzuki Jimny

Hotspot 1

CB aerial brackets—The Summit bull bar incorporates two CB aerial brackets located on the outer wings of the bar. Custom fit, clamp on brackets are also available for additional antenna mounting.

Hotspot 2

Steel tubing—47.6 mm mandrel steel tubing provides increased frontal protection, as well offering greater visual styling to modern four wheel drive vehicles.

Hotspot 3

Steel uprights—Each bull bar upright is cut from a single sheet of steel and extends from the top tube through to the bumper section and forms part of the bar to chassis mount. This process ensures the whole outer frame receives the maximum possible support. Wide, press formed cover straps are then welded onto each upright to ensure there are no exposed sharp edges.

Hotspot 4

Wider edge radius—A 10 mm wing and centre section edge radius offers increased strength while complementing modern vehicle design.

Hotspot 5

Driving light provision—Exceptionally durable and secure, all ARB bars serve as an ideal platform to mount driving lights. Driving lights mounted to a high quality bull bar prevents problems such as excessive movement, a vibrating beam pattern, premature bulb failure and eventual fatiguing of the light bodies.

Hotspot 6

Press formed top pan —Press forming has been utilised to create a stronger centre pan that features smooth, continuous edges. A press formed aluminium winch cover panel finishes off the bar for when a winch is not installed.

Hotspot 7

Wing design—The furthest most point from the chassis and often the point of impact in an animal strike, the wing area is by far the most vulnerable. ARB pioneered the multi fold upswept and tapered wing design, which provides an enormous amount of strength and maintains an optimum approach angle.

Hotspot 8

Split pan design—The wide, split pan design enhances the strength of the bar, while providing the radiator and engine with a massive amount of air flow. An integrated winch clutch opening makes winch operation simple.

Hotspot 9

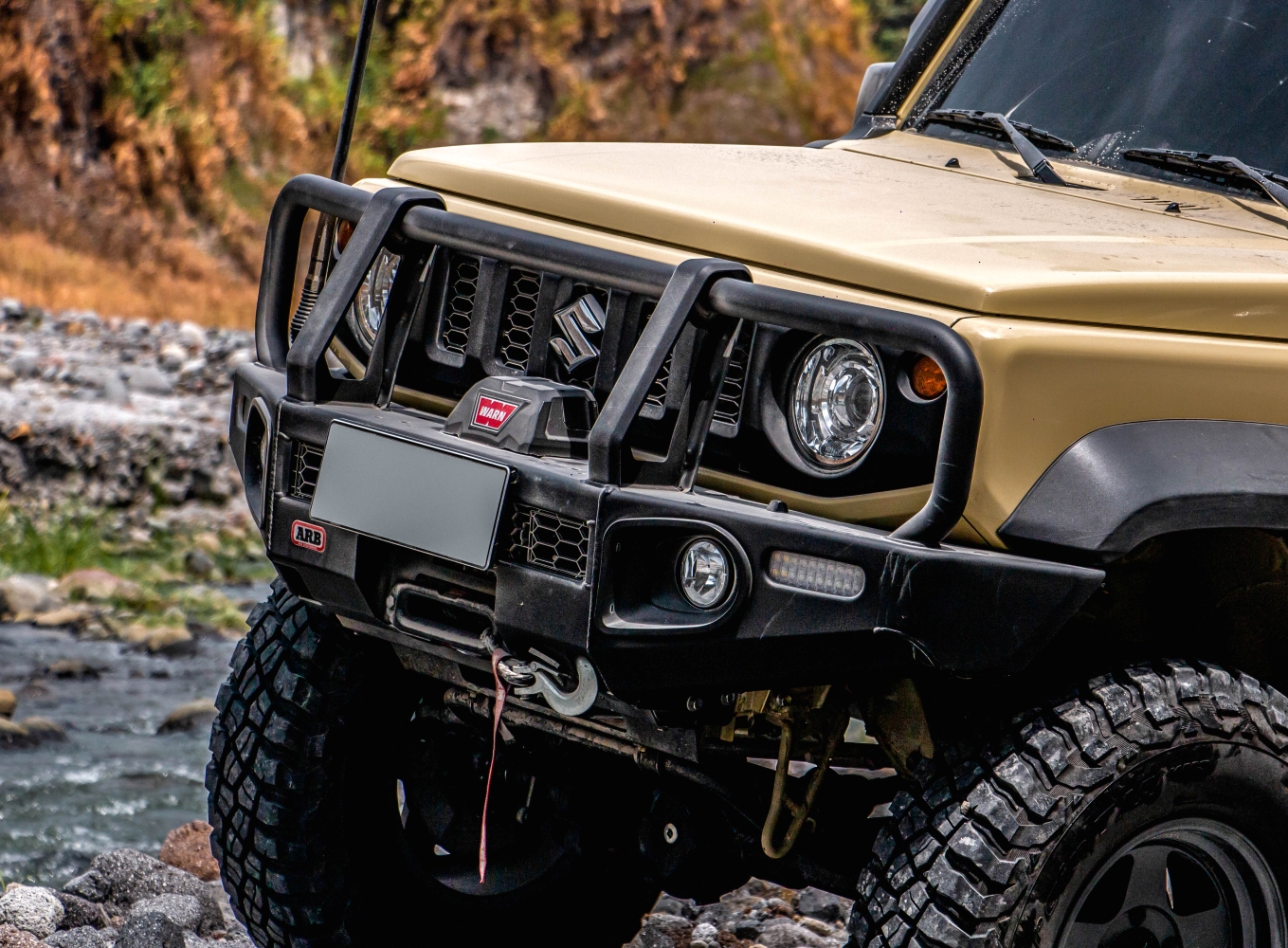

Winch compatibility—Mounting a winch to a vehicle requires a properly supported structure that is designed to accommodate the stresses of winching. The ARB Summit bar features the option of fitting a winch and is designed and tested to endure such loads.

Hotspot 10

Hi-Lift jacking points—Twin ARB Jack or Hi-Lift jack points are located beneath each buffer.

Hotspot 11

Air bag compatible—With an air bag equipped vehicle, it is essential that the vehicle's crush rate and air bag triggering are not altered when a bull bar is installed. ARB assesses each vehicle's frontal crush characteristics and replicates the crush rate into the design of each air bag compatible bull bar and its mounting system. This achieves maximum possible vehicle and passenger protection without affecting the crash pulse.
