WARN M8274 Electric Winch - 10,000 lb with Steel Cable

*Whilst we make continuous effort to ensure accuracy with the product photo or vehicle shown, please consult an ARB expert if you are unsure if this product is right for you.

PRODUCT CODE: W106170

WARN M8274 Electric Winch - 10,000 lb with Steel Cable

The Legendary Name in Vehicle Recovery

Sold as a Single item

Select Fitment Option

Professionally Installed by ARB + $200.00 AUD Deliver Direct or Click & Collect

Choose an option below and we'll help you get back on track.

Find Compatible Products

Talk to an ARB Expert

Delivery Available

Contact Store for Availability

Zip Pay Available. Learn More

WARN M8274 Electric Winch - 10,000 lb with Steel Cable

Find Products

WARN CLASSIC WINCHES

Encompassing the Entry Level, Premium, Ultimate Performance and Heavyweight Series’, Warn’s classic winches are packed with features to keep you advancing in even the toughest terrain. With industry leading technology, Warn’s range of winches are designed for high performance and reliability to give you the pulling power you need, when you need it.

Warn 9.5XP model pictured below.

EXPLORE THE RANGE

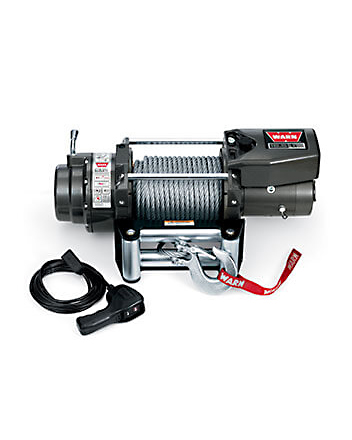

16.5TI

This winch is the highest capacity, most technologically advanced 4WD winch in the industry, featuring the full diagnostic ability of Warn thermometric technology, plus the extreme sealing, durability and reliability that Warn ti winches are known for.

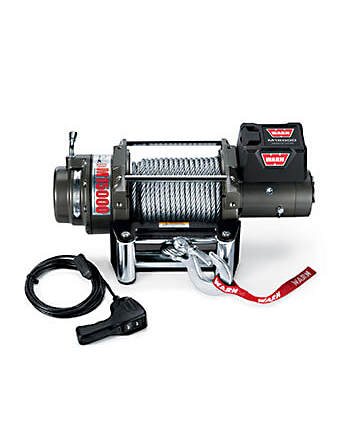

M15000

For serious pulling power, the Warn 15000 winch features high strength carrier plates to handle the gear train stresses placed on it while winching and a control pack designed for generous clearance and ease of access.

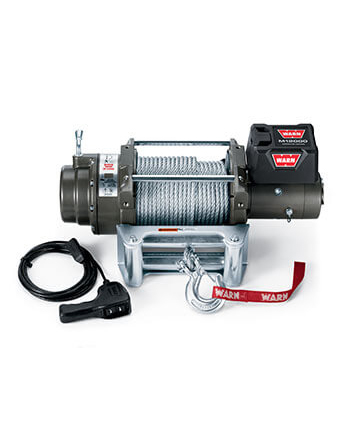

M12000

With tremendous torque, power and quick no load retrieval speed, the 12,000lb winch from Warn features a low profile so it will suit a variety of applications.

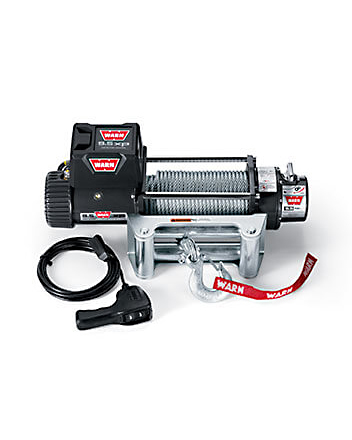

9.5XP

Fast and powerful, this winch features the longest duty cycle and fastest line speed of any Warn winch under load. Designed for the serious off roader, it is ideal for those that demand a winch that will perform under the most arduous conditions on earth.

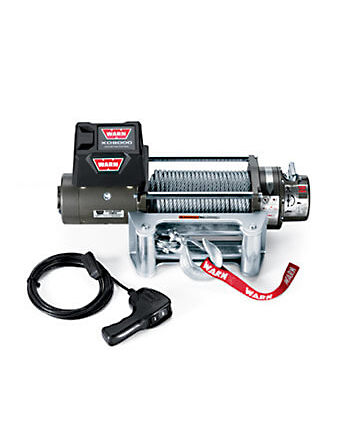

XD9000

As a long-time best seller, the XD9000 is an extremely reliable and durable design suited to a wide variety of 4WDing purposes. Its compact body and separate control pack allows it to work effectively in tight spaces, making it an incredibly versatile winch.

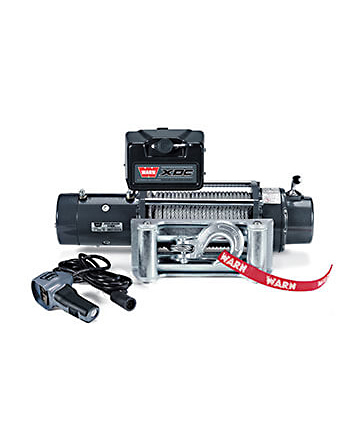

XDC9500

With a low profile and compact shape allowing it to fit a wide variety of applications, the Warn XDC9500 winch is versatile and reliable. An important feature of this model is the thermometric protection device which ensures long motor life by suspending winching if the operating temperature becomes too high. (Not available in the US)

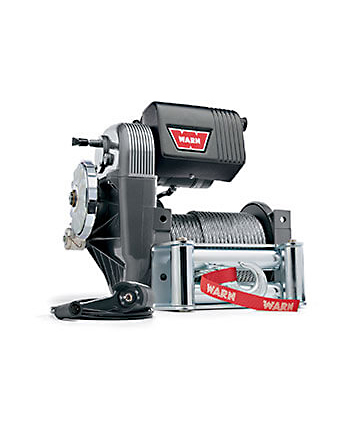

M8274-50

Ideal for competition use, this high mount model is Warn’s fastest winch, with a line speed of 22 metres per minute (under no load). Coming with 45 metres of cable, its rugged drive train and upright design enables superior heat dissipation to avoid overheating, making this winch ideal for off road competitions where fast, reliable line pulls are required.

M8000

Warn’s medium to light vehicle mounted winch may be one of the lowest rated 4WD winches, but it’s no weakling – ideal for small vehicles with big ideas.

FEATURES

Hotspot 1

Control box—Using electrical power from the vehicle’s battery, the control box solenoids switch power to the motor, enabling the operator to change the direction of the winch drum rotation.

Hotspot 2

Motor—Series wound motor delivers fast line speed and long pulls.

Hotspot 3

Multi-segment cam activated brake—Exclusive Warn design provides positive operator control when winching.

Hotspot 4

Strong cable—Aircraft grade wire cable for maximum strength.

Hotspot 5

3 Stage planetary gear train—Proven to be the most reliable, efficient and durable design in all conditions.

Hotspot 6

Quality components—Manufactured from quality components and no-compromise construction for the toughest of conditions.

Hotspot 7

Durable finish—Powder coat finish affords excellent corrosion resistance.

Hotspot 8

Safety hook—Clevis style safety hook ensures added security and safety during winching.

Hotspot 9

Roller fairlead—Assists in guiding the wire cable onto the spooling drum, minimising damage to the cable.

Hotspot 10

Remote control—Remote switch with 3.7m lead (most models) plugs into the winch control box, allowing the operator to control the winch direction and stand clear of the wire cable while operating the winch.

Closer Look

The WARN M8274 Electric Winch stands as an icon in vehicle recovery, renowned globally for its unmatched speed, durability, and reliability. Engineered to excel in the most demanding off road conditions, this 12V winch features a robust 10,000 pound (4536 kg) pulling capacity, making it a cornerstone for serious 4WDing and overlanding adventures.

At its core, the M8274 boasts a powerful 4.47 kW series-wound motor coupled with a rapid 134:1 gear ratio, ensuring swift line speed and efficient recovery operations. The automatic, disc brake system provides secure load holding. Designed for rugged performance, it includes 38 metres of 9.5mm diameter steel wire rope, managed by a durable roller fairlead for smooth and reliable cable deployment. The winch is further enhanced with a black powder-coated finish for corrosion resistance and an IP68 rating, ensuring protection against dust and water ingress.

Featuring a convenient plug-in winch remote with a 3.7 metre cable, the M8274 offers flexibility and control during recovery. Its iconic upright design and robust construction ensure it's not just a tool, but a trusted partner in any recovery situation, allowing you to venture further with confidence and return safely.

DC voltage [V] 12

max. load [kg] 4536

Rated Power [kW] 4.47

Gear Ratio 134:1

Product Feature (a) Plug in winch remote

Cable Length [m] (a) 3.7

Overheating protection no

Surface Powder coated

Colour black

Distance of mounting bores 1 [mm] 254

Distance of mounting bores 2 [mm] 114.3

Protection Type (IP Code) IP68

Specification (a) Winch cable

Cable Length [m] (b) 38

Cable Diameter [mm] 9.5

Material Steel Wire

Drum diameter [mm] 9

Specification (b) Electrical cable

Cable Length [m] (c) 1.83

Specification (c) Fairlead

Product Feature (b) Roller Fairlead - Steel

Brake System Automatic, disc.

Capacity at 12V 10,000 lb

Cable ID Steel Cable
