ARMAX Performance

Safari has developed its new range of ARMAX products with vehicle performance and efficiency at the forefront.

The ARMAX Snorkel is designed to provide increased airflow to the vehicle airbox, helping your vehicle perform whilst exploring off road.

ARMAX Snorkels

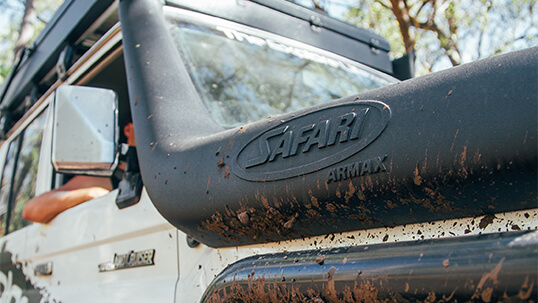

Safari ARMAX Snorkel Close up

The ARMAX range has been developed to provide more air flow to the air box when compared to a standard intake or traditional Safari snorkel.

Featuring a 4″ air ram and wider body, the ARMAX snorkel is suited for drivers wanting higher performance from their off road vehicle and works in harmony with all existing and future performance modifications.

Clever Design

Clever Design

Safari’s Air Ram system is a pivotal and functional attribute of the snorkel; CAD and lab tested, the Air Ram is designed to simultaneously remove the maximum volume of water from the incoming air stream, while delivering the maximum airflow to your vehicle’s engine.

Durable Materials

Durable Materials

Safari snorkels utilise a UV stable polyethylene body which ensures a strong and robust fitting to the outside of your 4×4, complemented by high-grade stainless steel and plated hardware for corrosion resistance on all internal and external fittings and fixtures. All Safari connection ducting is custom designed and tooled and is manufactured from EPDM moulded rubber, rated to a continual 130°C operating temperature. There is nothing better!

Vehicle Specific

Vehicle Specific

Nothing fits like Safari. As a result of the intricate design process, working with a combination of CAD modelling and actual vehicles, Safari snorkels are manufactured to integrate seamlessly. Where other products might look similar, none are developed with such attention to detail from the air-box back to the Air Ram to work perfectly with your vehicle.

Safari Snorkel Features

Reduces dust intake in Outback conditions

Reduces dust intake in Outback conditions

Safari snorkels are ideal for convoy driving where severe dust can have a detrimental effect on your engine’s performance.

Protects Your Engine From Water

Protects Your Engine From Water

Keep your engine dry and your 4WD moving during water crossings, Safari snorkels reduce the likelihood of engine damage.

Pre Cleaner Compatible

Pre Cleaner Compatible

Safari snorkels are fully compatible with optional 7″ or 10″ pre cleaners on some models.

Maintains Fresh Air For Your Engine

Maintains Fresh Air For Your Engine

High flow air ducting and body ensures air supply is in excess of engine requirements.

ARB Diff Breather Kit

A diff breather kit stops your differentials (as well as gearbox and transfer case) from sucking in water when driving through river crossings and large water hazards, leading to serious and expensive repairs.

As your vehicle’s differentials, gearbox and transfer case heat up under normal operation, the air inside expands and increases pressure in the casings. To manage this increase in pressure, most of these components come standard with a series of one-way-valve breathers to allow the pressure build-up to escape.

However, when you enter a river crossing or large water hazard, the cold water quickly cools the expanded cases causing them to quickly retract in size; this forms a vacuum effect on the breather valves.

One-way breather valves will not let any air in, and as a result, water will often be sucked in through your surrounding oil seals allowing water ingress into your casings, axles and differentials; leading to corrosion and serious damage.

To overcome these common issues, it is recommended to install a breather kit which acts similar to a snorkel for your differentials, gearbox and transfer case. The breather kit is primarily a hub which transfers air in and out of the critical vehicle components; the kit includes a length of air tubing which is run to a high point (usually under the vehicle’s bonnet) where it is most protected from dust and water ingress when drawing air back in.

Out of the box, the 4 port ARB Diff Breather Kit can be connected to all four key components (front diff, rear diff, transfer case and gearbox) and comes with enough tubing and fixtures to connect to the most common application of two differentials. With a small amount of additional tubing and fixtures (sold separately), the one kit will also accommodate your transfer case and gearbox.
