PRODUCT CODE: 3414770-1

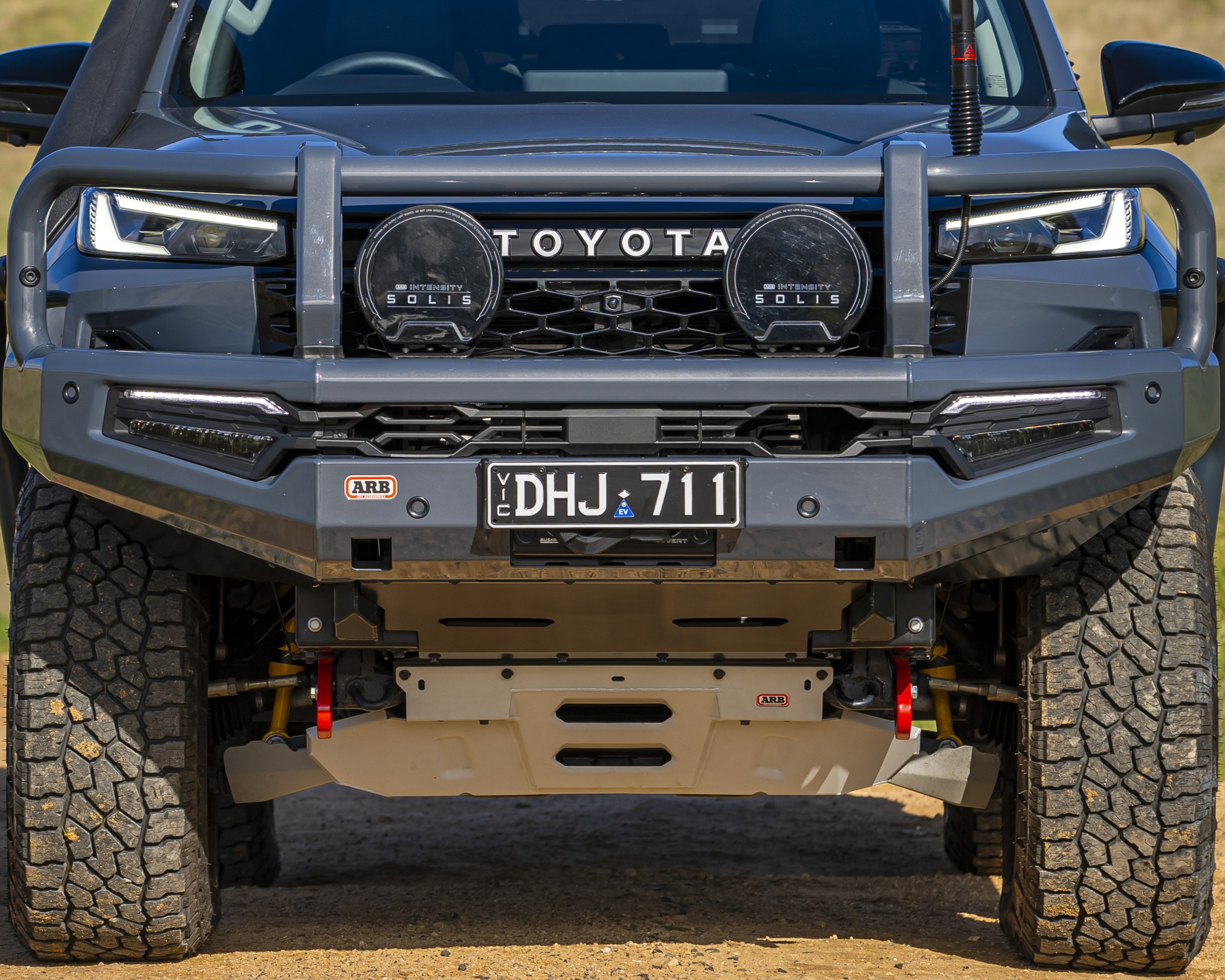

ARB Summit MkII Bull Bar with Matt Black Finish, Winch Compatible, with Fog Lights - Toyota Hilux

Next-Generation Flagship Protection for your 4X4 Toyota Hilux

Sold as Pack

With Your Selected Vehicle

Would You Like the Product Painted?

Choose an option below and we'll help you get back on track.

Find Compatible Products

Talk to an ARB Expert

Contact Store for Availability

Zip Pay Available. Learn More

3414770

ARB Summit MkII Bull Bar with Matt Black Finish, Winch Compatible, with Fog Lights - Toyota Hilux

3500520

ARB Auxiliary Lighting Loom with Deutsch Sockets

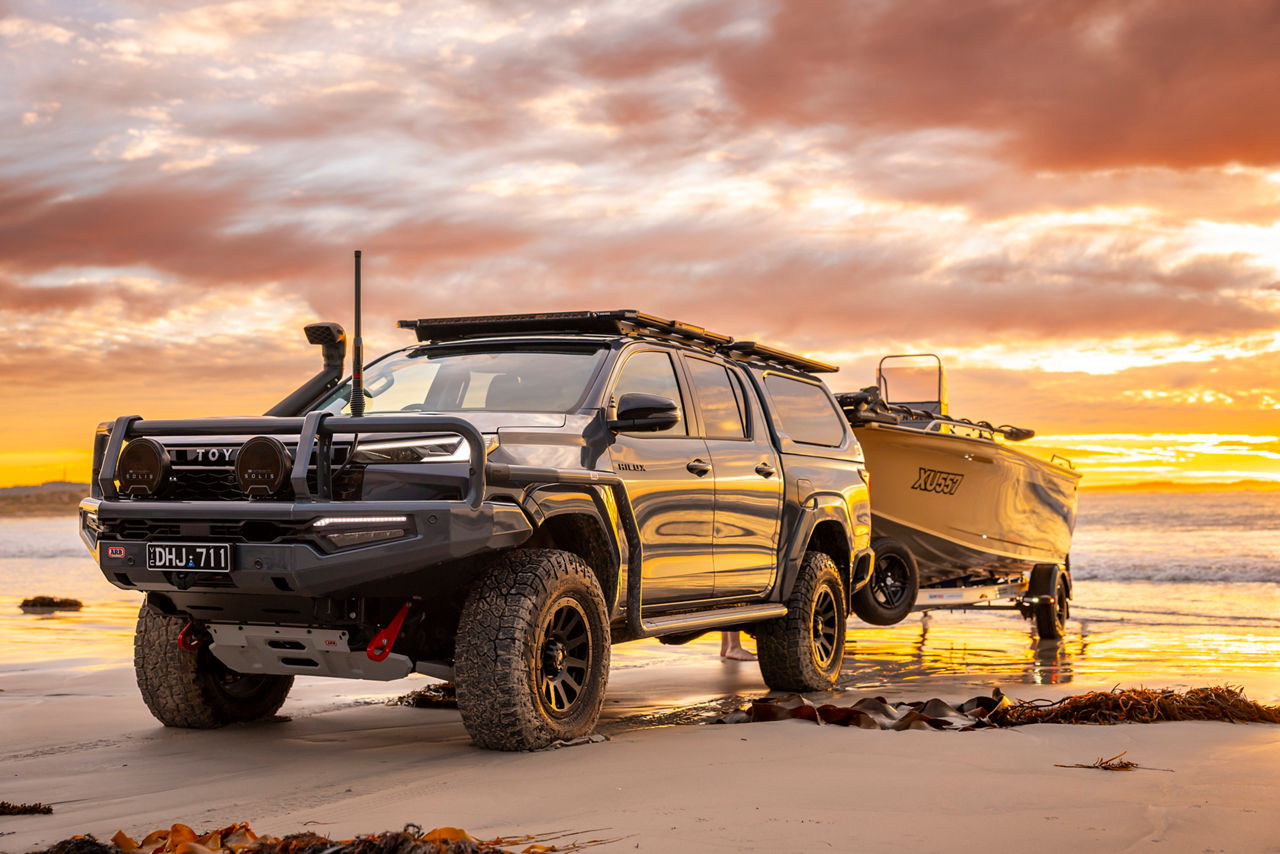

ARB Summit MKII Bull Bar for Toyota Hilux 26

Play button

FEATURES

Hotspot 1

Antenna compatibility—Two antenna brackets located on the centre frame.

Hotspot 2

Superior protection—60.3 mm outer frames and centre cross tube.

Hotspot 3

Winch compatibility—Can accommodate Warn, Bushranger, Smittybilt low mount model electric winches up to 10,000 lb. Pressed form top pan and aluminium (powder coated matte black) winch cover panel.

Hotspot 4

Light compatibility—Provision to accommodate ARB Intensity range and Solis LED’s and a range of Bushranger lights.

Hotspot 5

Premium finish—Metaprep primer for additional corrosion resistance, finished in matt black powder coat.

Hotspot 6

Unrivalled safety—Durable steel construction for maximum protection. Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts.

Hotspot 7

Registered design of styling and design components—Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle.

Hotspot 8

Jack compatibility—Twin ARB Jack or Hi-Lift jack points located in the lower pan.

Hotspot 9

Vehicle specific design—Compatible with original equipment safety features.

Hotspot 10

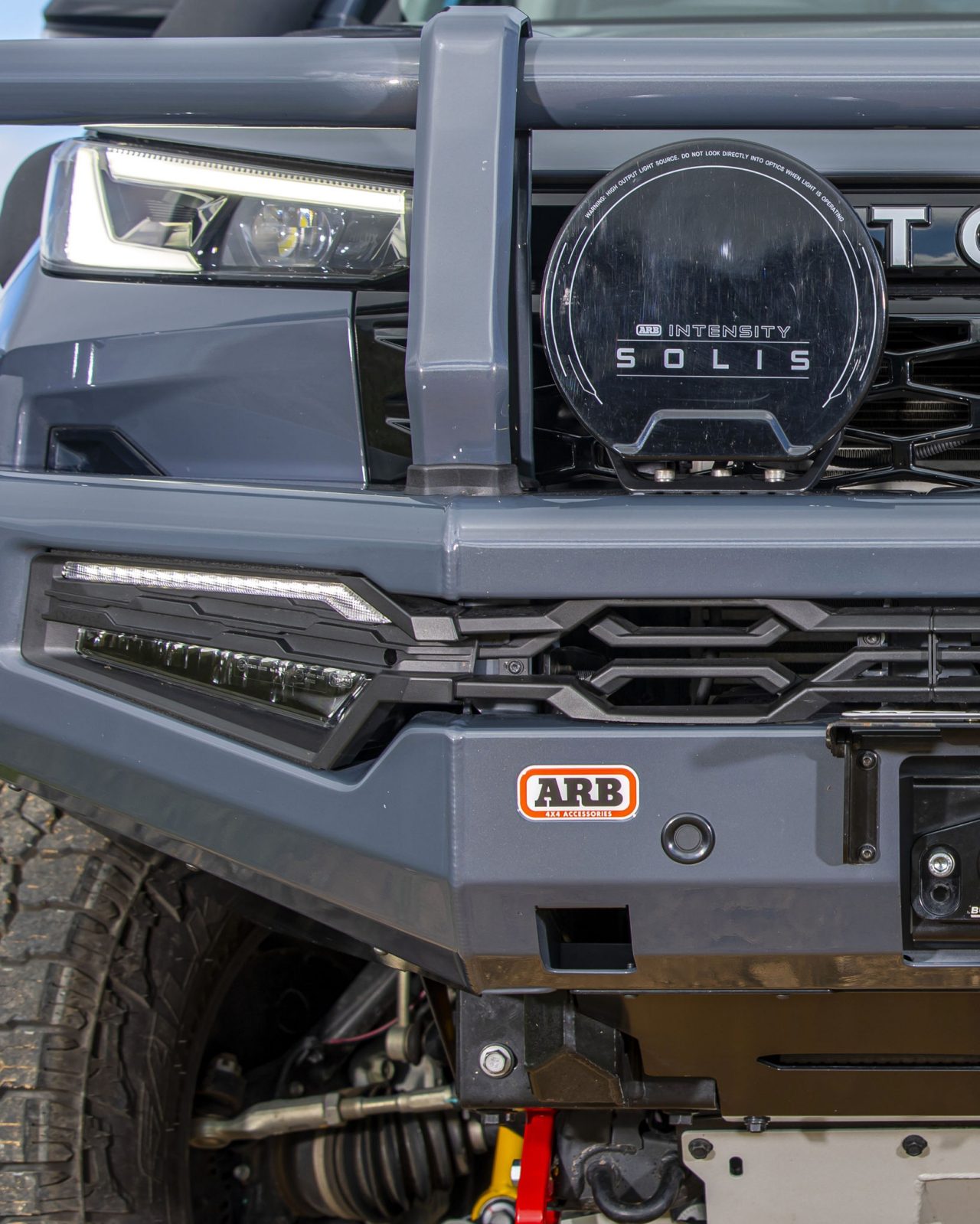

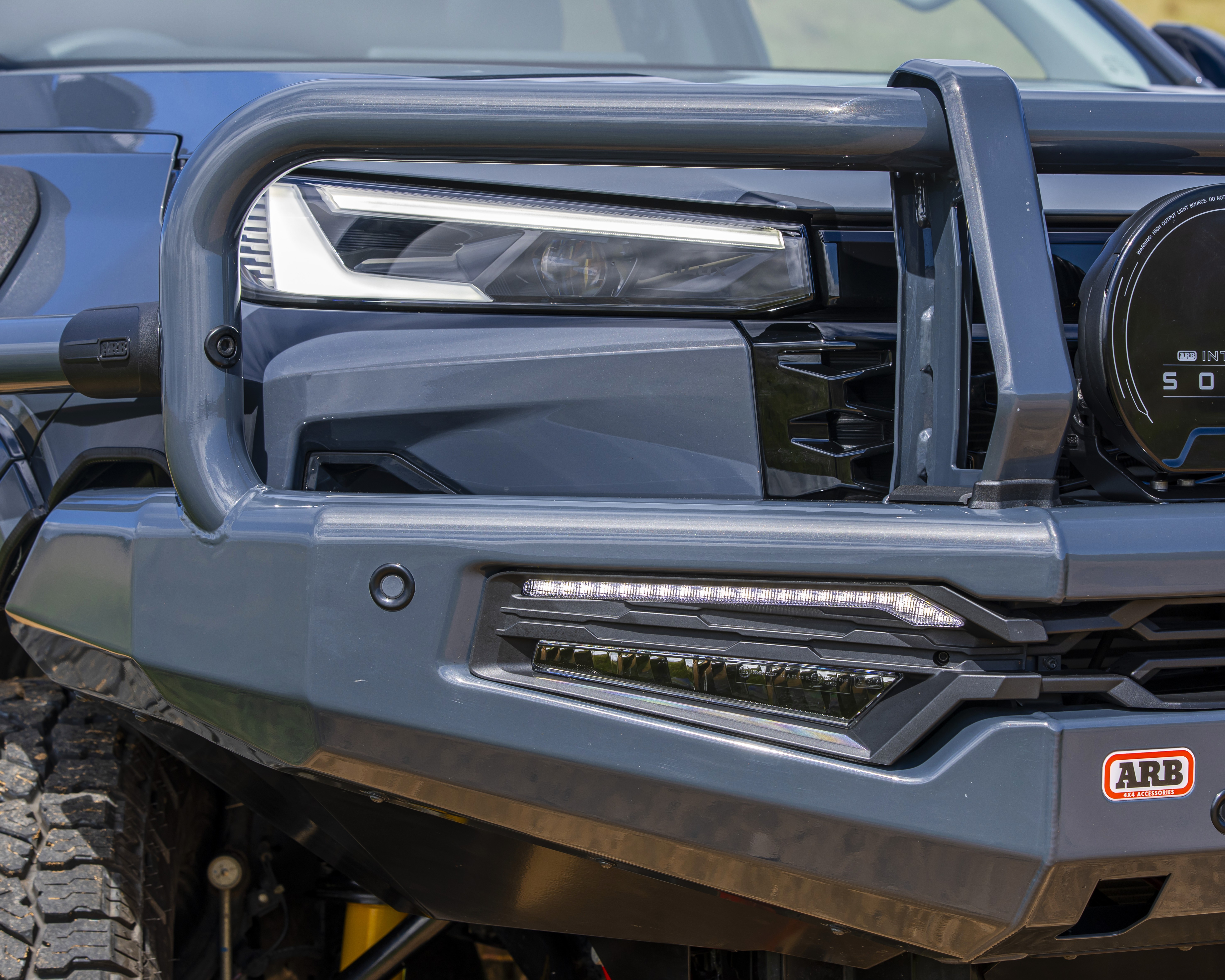

Light cluster—Includes ARB LED fog light, LED daytime running light (DRL), LED sequential indicators and clearance lights.

Hotspot 11

Purposeful design—Extensive protection panels on centre and either side. 30 mm radius on wings and centre section.

REGISTERED DESIGN OF STYLING AND DESIGN COMPONENTS

Incorporates ARB's renowned multi fold upswept and tapered wing design for optimum strength and approach angle.

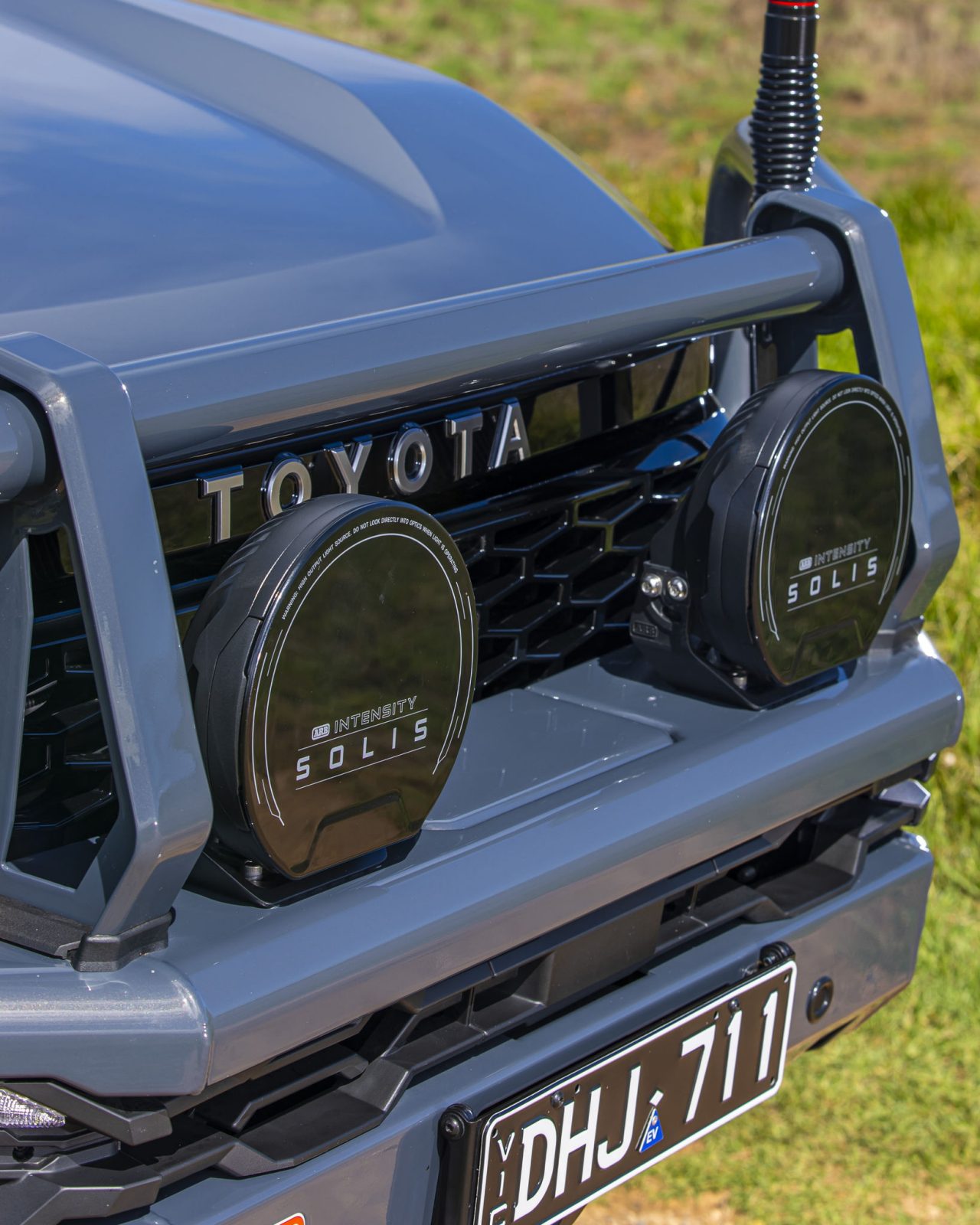

LIGHT COMPATIBILITY

Includes ARB LED Fog light, LED Daytime Running Light, LED indicators and clearance lights.

Provision to accommodate ARB Intensity, Intensity IQ and Solis LED's and a range of Bushranger lights.

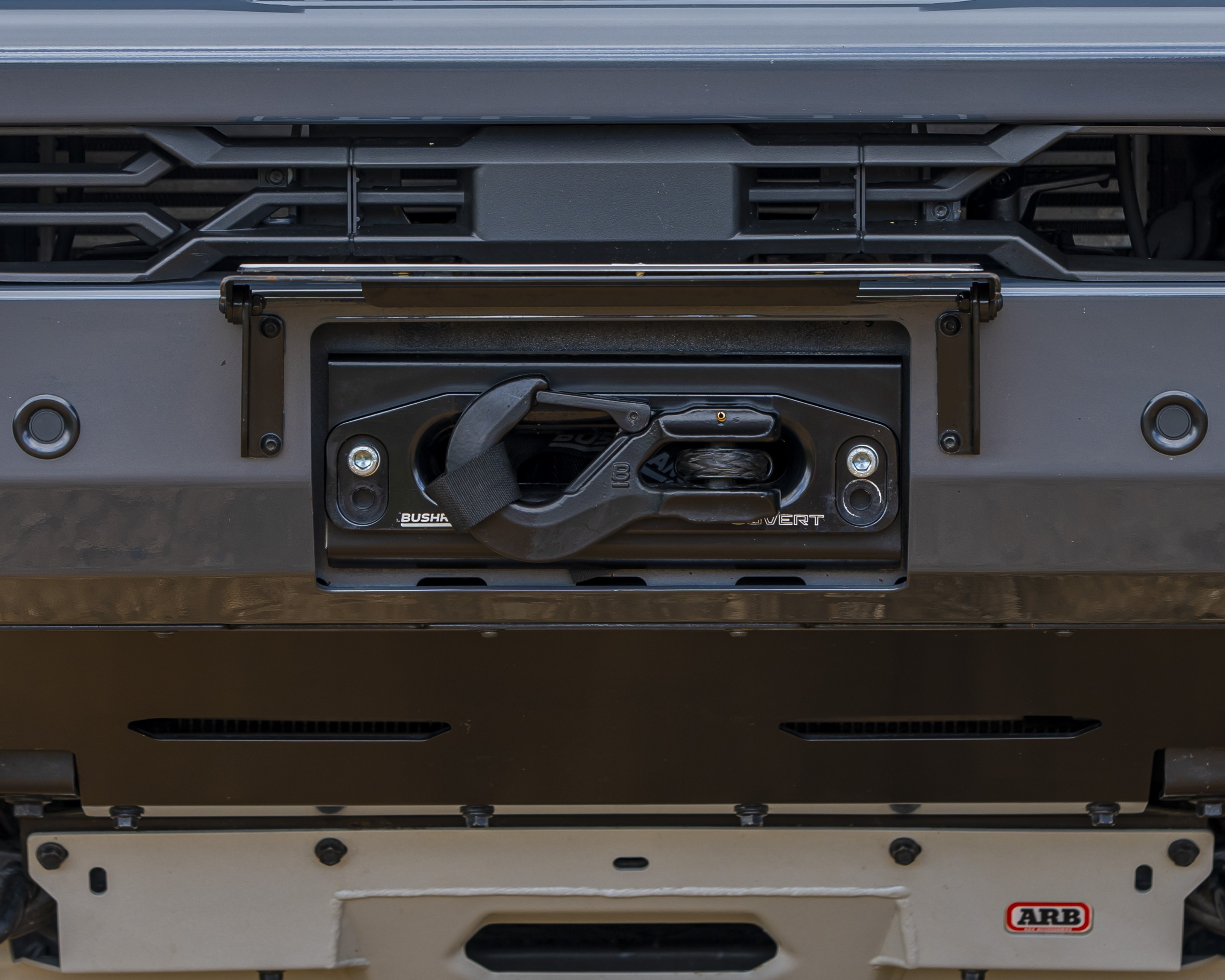

WINCH COMPATIBILITY

Can accommodate Warn, Bushranger, Smittybilt low mount model electric winches up to 10,000lb.

Note: Separate winch fitting kit required.

DESIGN

• Split pan design for maximum strength and airflow

• 30mm radius on wings and centre section

• 60.3mm outer frames and centre cross tube

MATERIAL

• Finished in matte black powder coat with the option to colour code to vehicle colour

• Metaprep primer for additional corrosion resistance

• Durable steel construction for maximum protection

Construction

• Pressed form top pan and aluminium (powder coated matt black) winch cover panel

• Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts

COMPATIBILITY

• Two antenna brackets located on the centre frame

• Twin ARB Jack or Hi-Lift jack points located in the lower pan

INTEGRATED APPROACH FOR MODERN VEHICLES

The Summit MKII has eliminated front buffers and now has robot welds on the front face of the bar to highlight ARB’s excellence in sheet metal fabrication. Fog light design has been significantly updated to include a plug and play sequential indicator / clearance light / daytime running light and fog light within one complete unit for an integrated approach to incorporate these requirements on modern vehicles.

3 Years Warranty

ARB prides itself on creating the best products that offer quality, reliability and practicality above all else. Naturally all ARB products manufactured and distributed by us come with a three years nationwide warranty.

Closer Look

The ARB Summit Bar MkII is now released for the ever popular Toyota Hilux and has been designed to be fully integrated with Toyota's Intelligent safety technology better known as Safety sense. The state-of -the-art Summit Bar MKII takes key components of it's flagship namesake and kicks it up a notch with an ultra-modern design that's constructed to turn heads.  Hilux Bars have just gotten better!

Summit MkII has eliminated front buffers and now has robot welds on the front face of the bar to highlight the sheet metal fabrication excellence of ARB. Fog light design has been significantly updated to include a plug and play indicator / clearance light / Daytime Running Light and fog light within one complete unit for an integrated approach to incorporate these requirements on modern vehicles.

This bundle includes all required components. See 'What's in the Box' for more details.

Warranty 3 Years
Material Steel
Colour black
Surface (a) Zinc-coated
Surface (b) Powder coated
Surface (c) Matt Finish
Product Feature (a) Bumper-Cut Design
Product Feature (b) ADR & Air Bag compliant
Light Type Indicator with Clearance & DRL- LED
Lens Type Clear Lens
Lamp Type LED
Specification (a) 2 Jack Points
Specification (b) Underpanels included
Product Feature (c) Winch Mounting Kit available
Winch Compatible YES
Wings & Pans 3.0 mm Thickness
Outer & Centre Tubes (a) 60.3 mm Diameter
Outer & Centre Tubes (b) 2.6 mm Thickness
Net weight [kg] 86
Fitting Instructions

3414770-Fitting.PDF

3414770-Template.PDF
